TRANSMISSION
M6040, M7040, WSM
3-S33

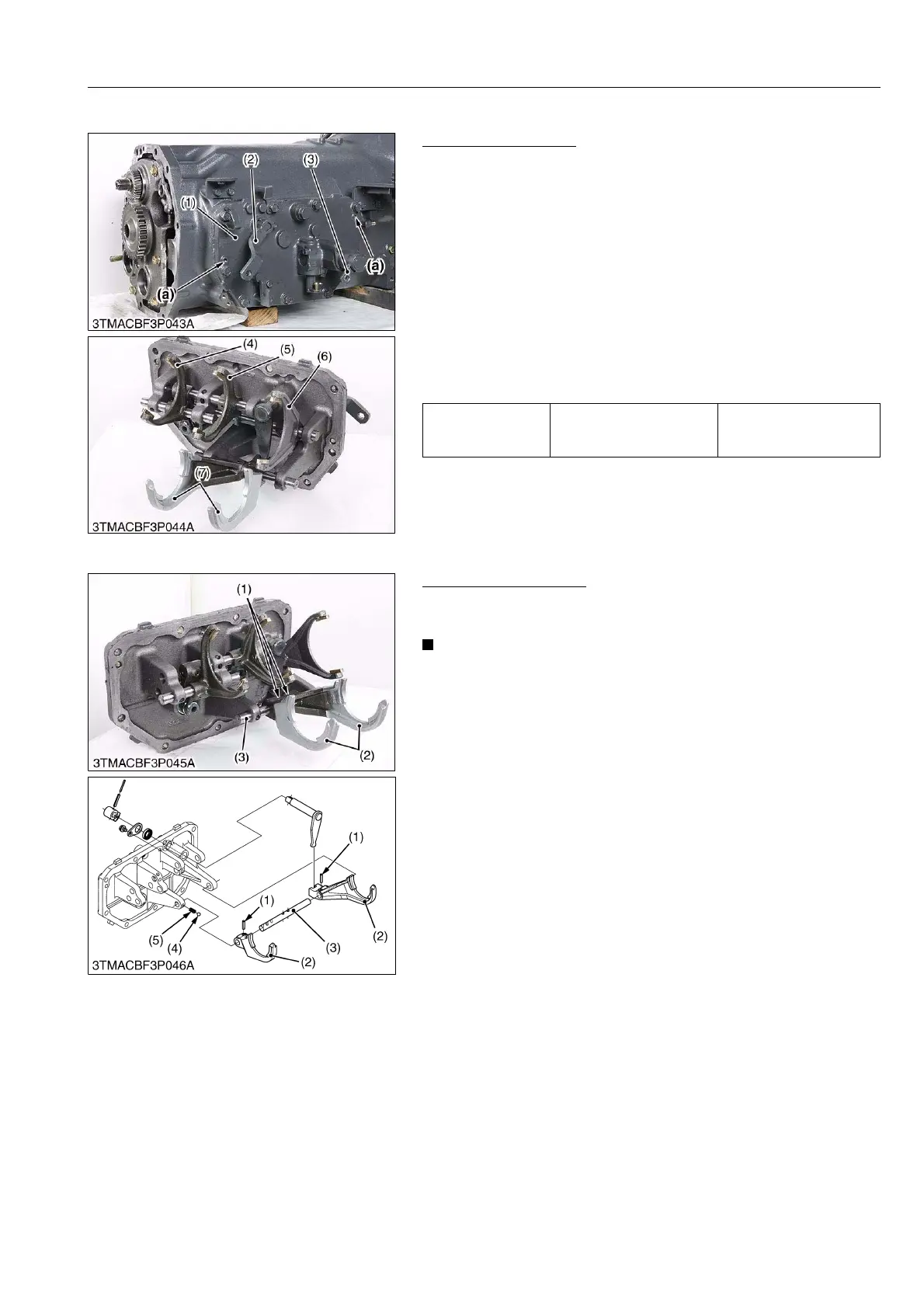

[8] SHIFT COVER
Speed Change Lever
1. Set the main change shift lever (3) to the neutral position.
2. Set the range shift lever (2) to the H position.
3. Remove the shift cover (1) mounting screws.
4. Screw in the M8 × 1.25 mm screw (or M14 × Pitch 1.5 mm
screw) to threaded hole (a) for jack up the shift cover (1).
5. Remove the shift cover (1) gently.
(When reassembling)
• Set the all main change shift fork (4), (5) and (6) to "neutral"
position and shifters in the transmission on neutral position, and
range shift forks (7) and shifters in the transmission on H side
(forward).
• Apply liquid gaskets (Three Bond 1206C or equivalent) to joint
face.
9Y1210143TRS0057US0
Range Gear Shift Fork
1. Remove the roll pins (1), fork rod (3) and range shift forks (2).
2. Remove the ball (detent) (4) and spring (5).
NOTE
• Take care not to lose the detent ball (4) and spring (5).
9Y1210143TRS0058US0
Tightening torque Shift cover mounting screw
77.5 to 90.2 N·m
7.9 to 9.2 kgf·m
57.1 to 66.5 lbf·ft
(1) Shift Cover
(2) Range Shift Lever
(3) Main Change Shift Lever
(4) 1st-2nd Shift Fork
(5) 3rd-4th Shift Fork
(6) 5th Shift Fork
(7) Range Shift Forks
(a) Threaded Hole for Jack Up
(1) Roll Pin
(2) Range Shift Fork
(3) Fork Rod
(4) Ball (Detent)
(5) Spring
KiSC issued 07, 2012 A
