TRANSMISSION
M6040, M7040, WSM
3-S32
Piston

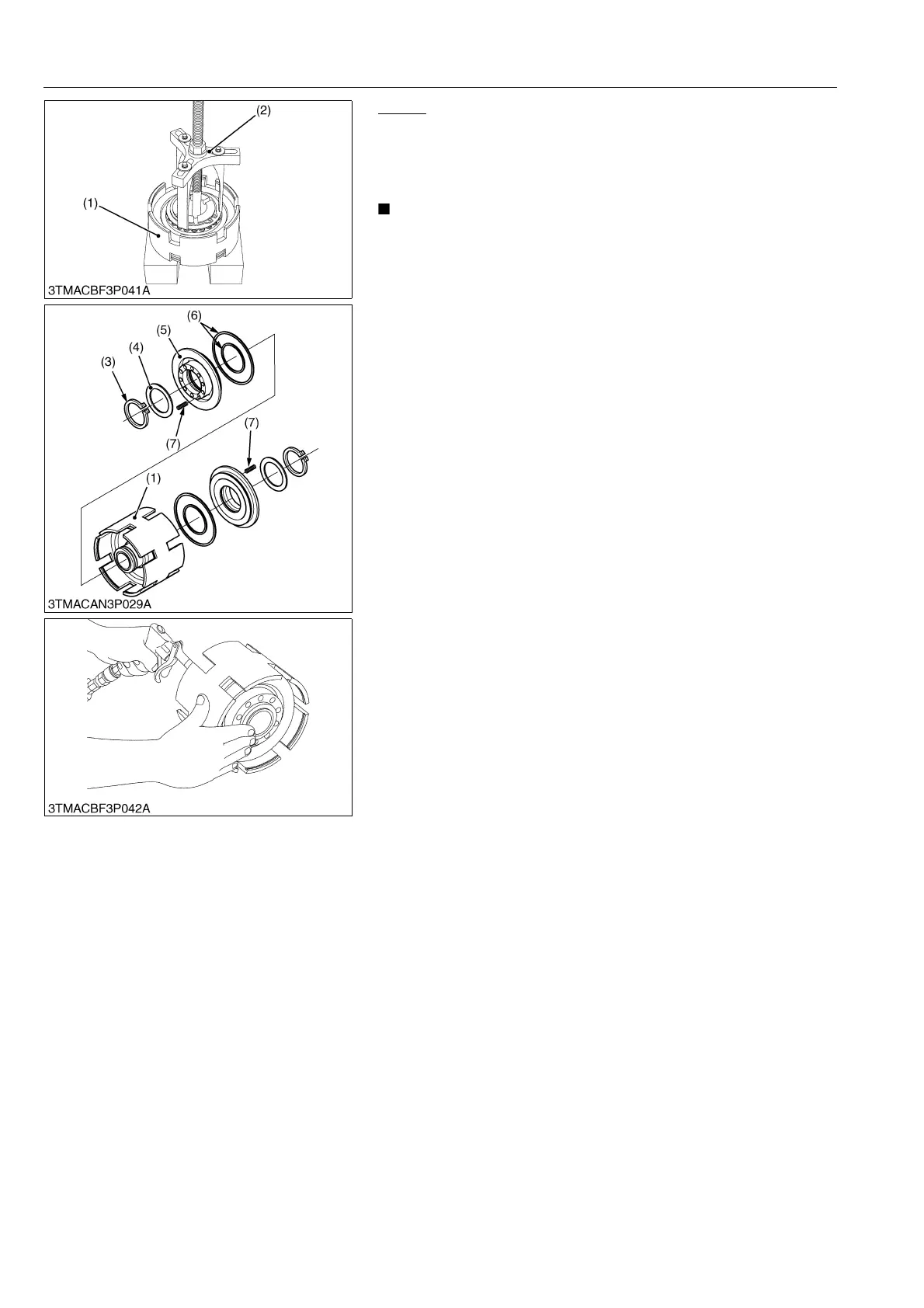

1. Press the washer (4) lightly by the hand made jig (see page
G-68), and remove the external circlip (3).
2. Remove the springs (7).
3. Draw out the piston (5) using a air pressure.
NOTE
• Ten springs for one side.
• The passage holes for the piston are beside the feather key
groove.
(When reassembling)
• Apply enough transmission fluid to seal rings (6).
9Y1210143TRS0056US0
(1) Clutch Case
(2) Jig
(3) External Circlip
(4) Washer
(5) Piston
(6) Seal Ring
(7) Spring
