wsm M7040 - Separating Engine (Rops Model); Separating Front Axle and Front Frame as a Unit

ENGINE
M6040, M7040, WSM
1-S26

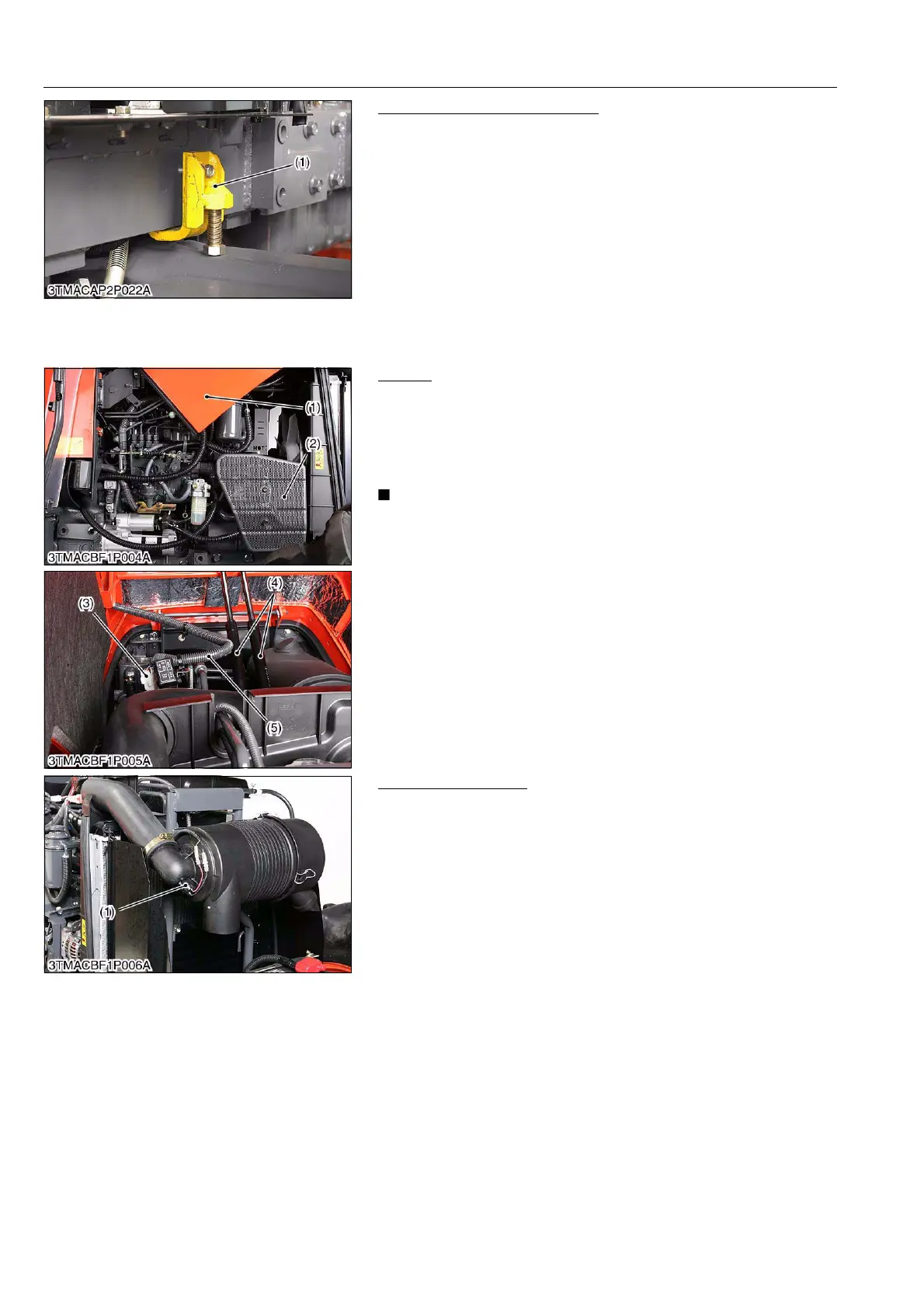

Front Axle Rocking Restrictor
1. Install the front axle rocking restrictor (1) (see page G-64) to the
front axle bracket.
9Y1210143ENS0030US0
[3] SEPARATING ENGINE (ROPS MODEL)
(1) Separating Front Axle and Front Frame as a Unit
Bonnet
1. Open the bonnet (1) and disconnect the battery negative
terminal.
2. Disconnect the connector (3) for head lights.
3. Disconnect the damper (4).
4. Remove the bonnet (1) and side cover (2) for both side.
IMPORTANT
• When disconnecting the battery cables, disconnect the
grounding cable first. When connecting, positive cable
first.
9Y1210143ENS0031US0
Air Cleaner Harness
1. Disconnect the 1P connectors from the air cleaner switch (1).
2. Remove the air cleaner harness clamp.
9Y1210143ENS0032US0
(1) Front Axle Rocking Restrictor
(1) Bonnet
(2) Side Cover
(3) Connector
(4) Damper
(5) Wire Harness (Head Light)
(1) Air Cleaner Switch
KiSC issued 07, 2012 A
