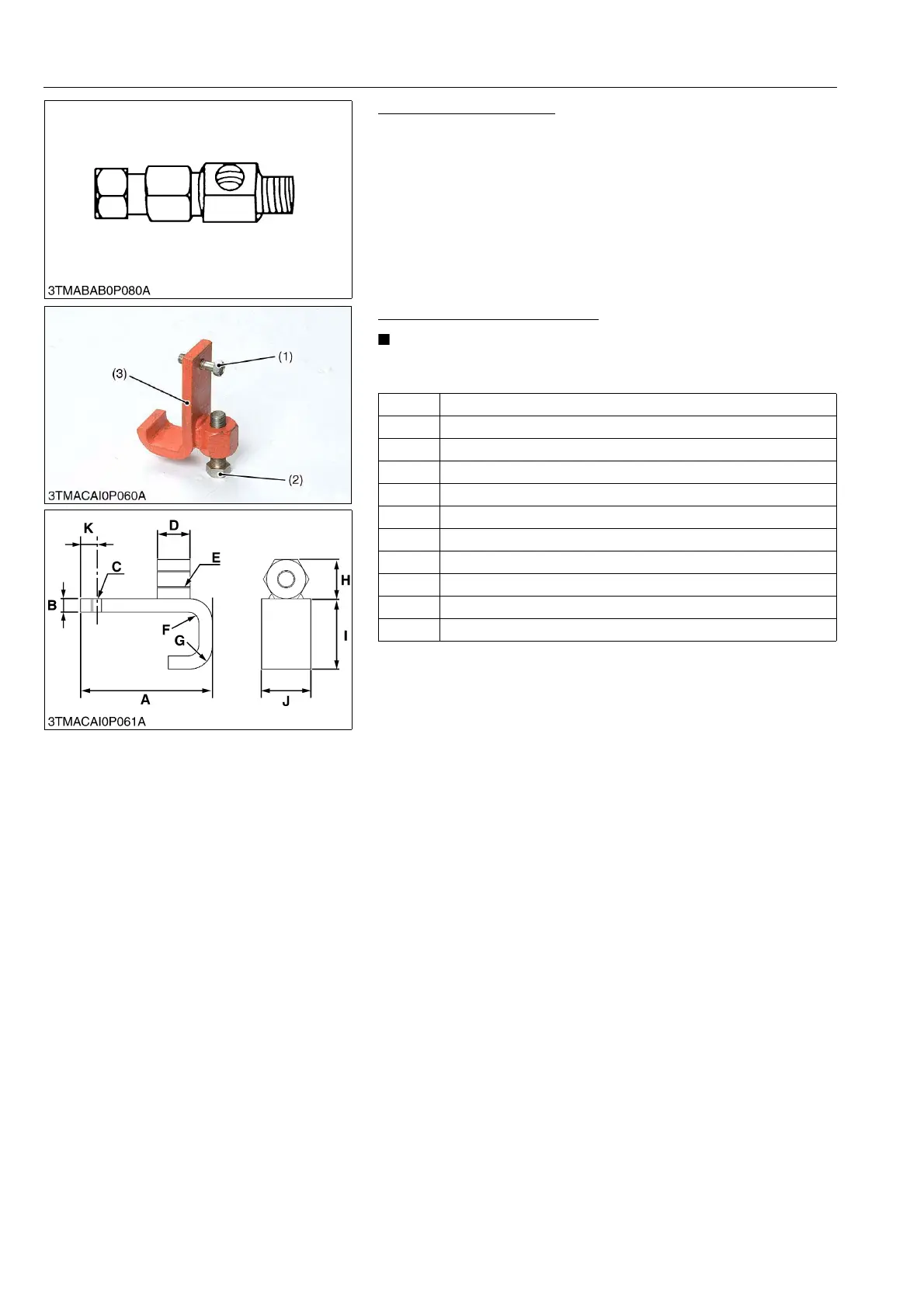

Power Steering Adaptor
Code No.
• 07916-54021
Application
• Use for measuring the relief valve setting pressure for power
steering.
WSM000001GEG0038US0
Front Axle Rocking Restrictor
NOTE
• The following special tools are not provided, so make them
referring to the figure.
9Y1210143GEG0094US0
A 120 mm (4.72 in.)
B 12 mm (0.72 in.)
C M10 × P1.25
D 30 mm (1.18 in.)
E M16 × P1.5
F 10 mm (0.39 in.)
G 20 mm (0.79 in.)
H 36 mm (1.42 in.)
I 64 mm (2.52 in.)
J 45 mm (1.77 in.)
K 20 mm (0.79 in.)
(1) Screw
M10 × P1.25 × L50 mm (2 in.)
(2) Screw
M16 × P1.5 × L50 mm (2 in.)
(3) Rocking Restrictor
