wsm M7040 - Checking, Disassembling and Servicing; Checking and Adjusting; Traveling Brake

BRAKES
M6040, M7040, WSM
5-S4
4. CHECKING, DISASSEMBLING AND SERVICING
[1] CHECKING AND ADJUSTING
CAUTION
• When checking, park the tractor on flat ground, and stop the engine.
9Y1210143BRS0004US0

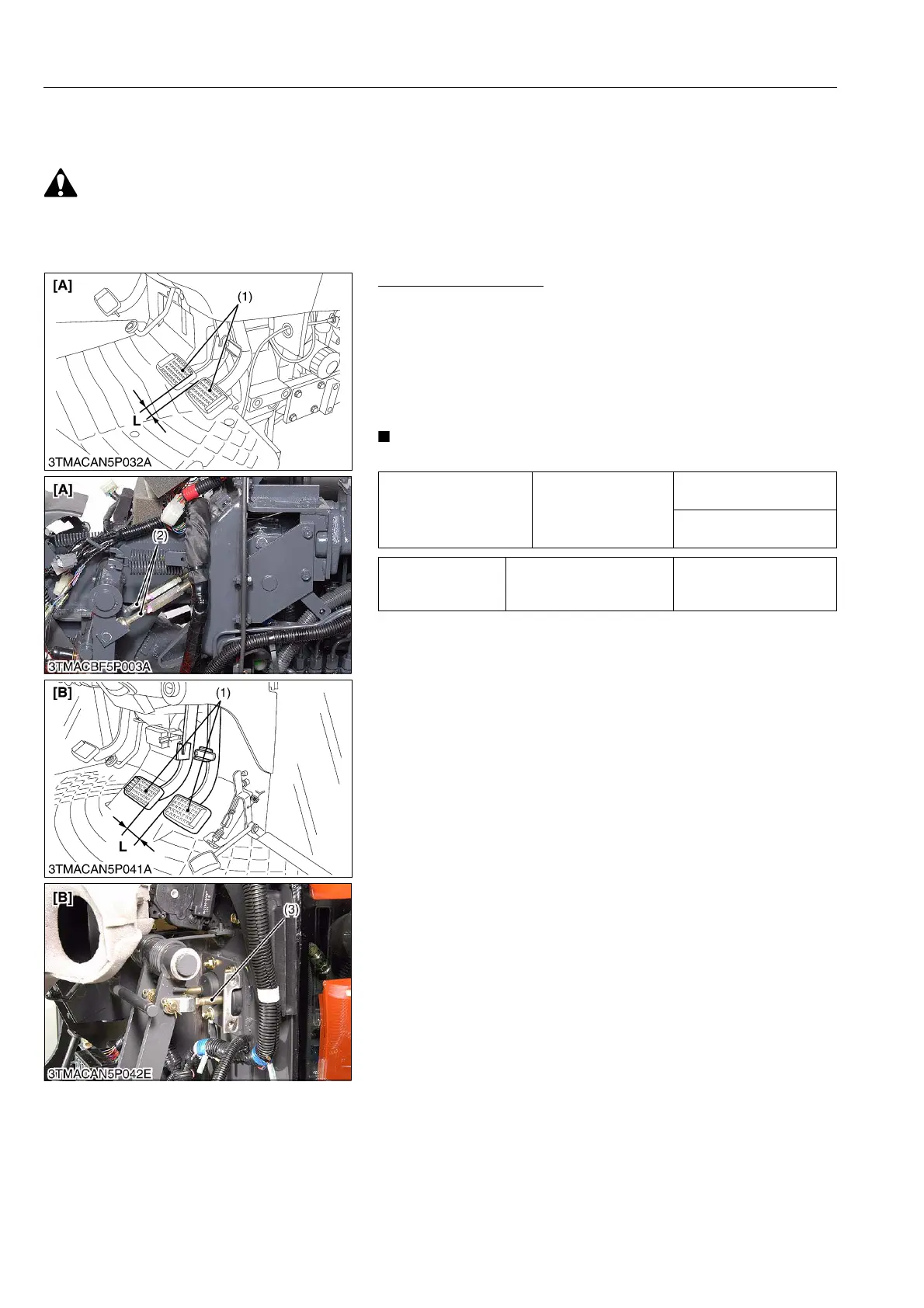

(1) Traveling Brake
Adjusting Brake Pedal
1) Brake Pedal Free Travel
1. Set the parking brake.
2. Slightly depress the brake pedals and measure free travel at the
top of pedal stroke.
3. If the measurement is not within the factory specifications,
adjust the free travel by the turn buckle (2) or push rod (3).
4. After adjustment, tighten the lock nut firmly.
IMPORTANT
• Keep the free travel in the right and left brake pedals equal.
9Y1210143BRS0005US0
Brake pedal free travel
"L"
Factory specification
7 to 14 mm
0.28 to 0.55 in.
Keep the free travel in the
both brake pedal equal
Tightening torque
Brake rod turnbuckle lock
nut (ROPS Model)
29.4 to 34.3 N·m
3.00 to 3.49 kgf·m
21.7 to 25.2 lbf·ft
(1) Brake Pedal
(2) Turn Buckle
(3) Push Rod
L: Free Travel
[A] ROPS Model
[B] CABIN Model
KiSC issued 07, 2012 A
