wsm M7040 - Control Lever Operating Force

HYDRAULIC SYSTEM
M6040, M7040, WSM
8-S15

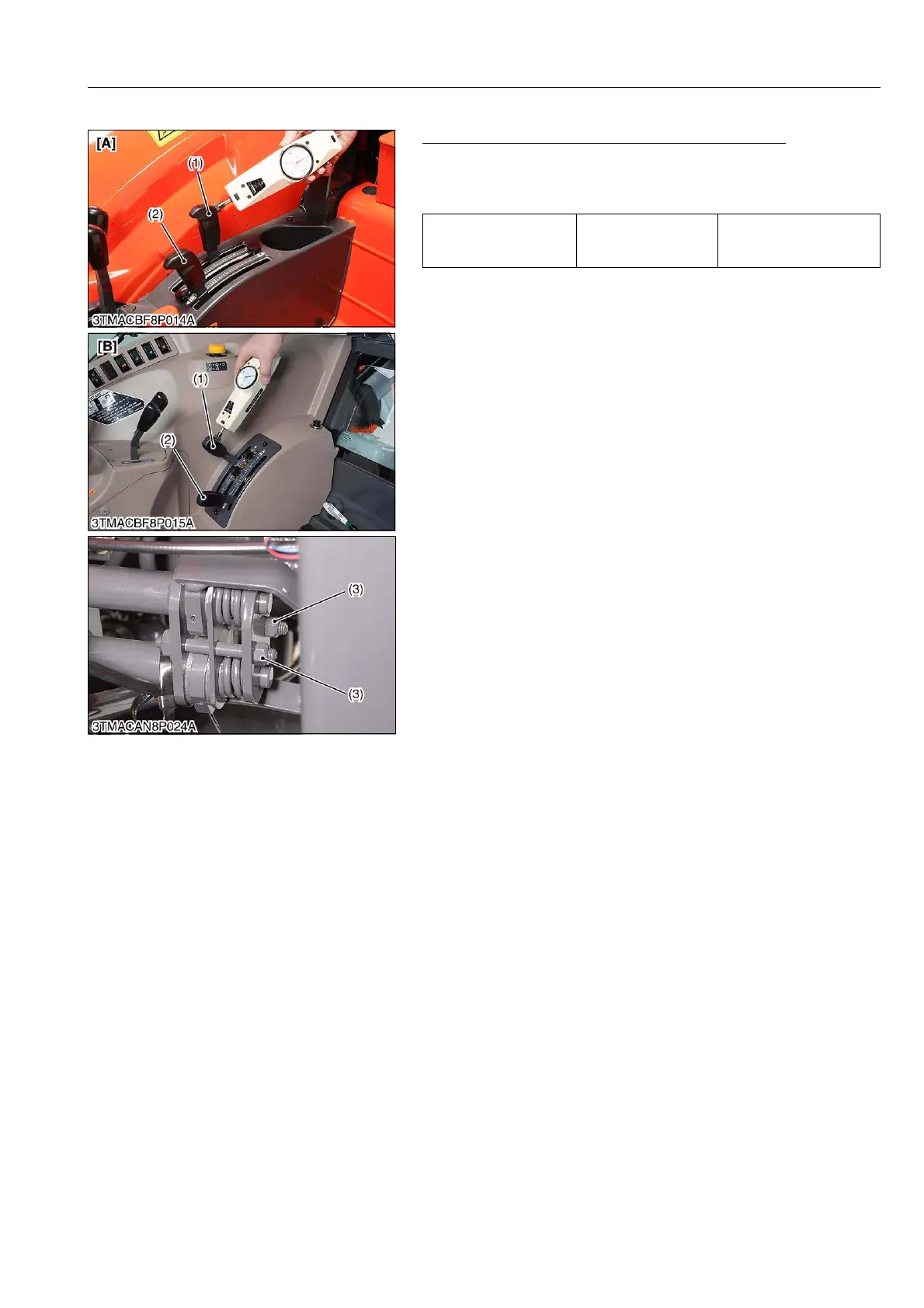

(4) Control Lever Operating Force
Position and Draft Control Lever Operating Force
1. Check the position and draft control lever operating force.
2. If measurement is not within the factory specification, adjust the
with tightening nuts (3).
9Y1210143HYS0013US0
Operating force for
position and draft control
lever
Factory specification
20 to 40 N
2.0 to 4.1 kgf
4.5 to 9.0 lbf
(1) Position Control Lever
(2) Draft Control Lever
(3) Nut
[A] ROPS Model
[B] CABIN Model
KiSC issued 07, 2012 A
