ELECTRICAL SYSTEM
M6040, M7040, WSM
9-S15

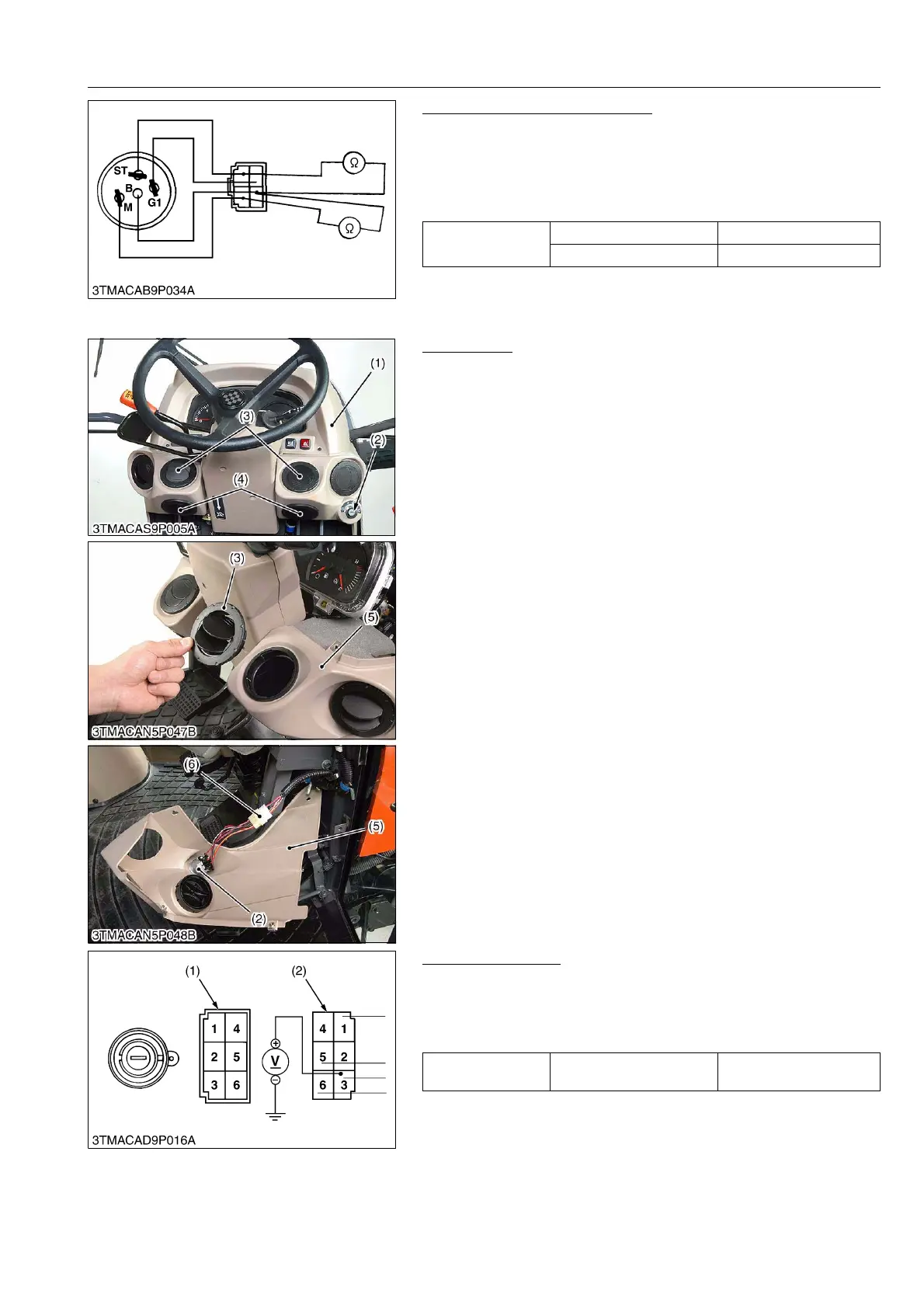

Main Switch at START Position
1. Turn and hold the main switch at the START position.
2. Measure the resistances with an ohmmeter across the terminal
B and the terminal ST and across terminal B and the terminal M.
3. If 0 ohm is not indicated, these contacts of the main switch are
faulty.
9Y1210143ELS0018US0
(2) Main Switch (CABIN Model)
Main Switch
1. Remove the panel cover (1).
2. Remove the air outlet (3) and (4).
3. Remove the panel under cover R.H. (5) and disconnect the
connector.
4. Perform the following checking.
9Y1210143ELS0019US0
Connector Voltage
1. Measure the voltage with a voltmeter across the connector
terminal 3 and chassis.
2. If the voltage differs from the battery voltage, the wiring harness
is faulty.
9Y1210143ELS0020US0
Resistance
Terminal B – Terminal ST 0 Ω
Terminal B – Terminal M 0 Ω
(1) Panel Cover
(2) Main Switch
(3) Air Outlet
(4) Air Outlet
(5) Panel Under Cover R.H.
(6) Connector
Voltage
Connector terminal 3 –
Chassis
Approx. battery voltage
(1) Main Switch (2) Main Switch Connector
(Wire Harness Side)
