TRANSMISSION
M6040, M7040, WSM
3-S28

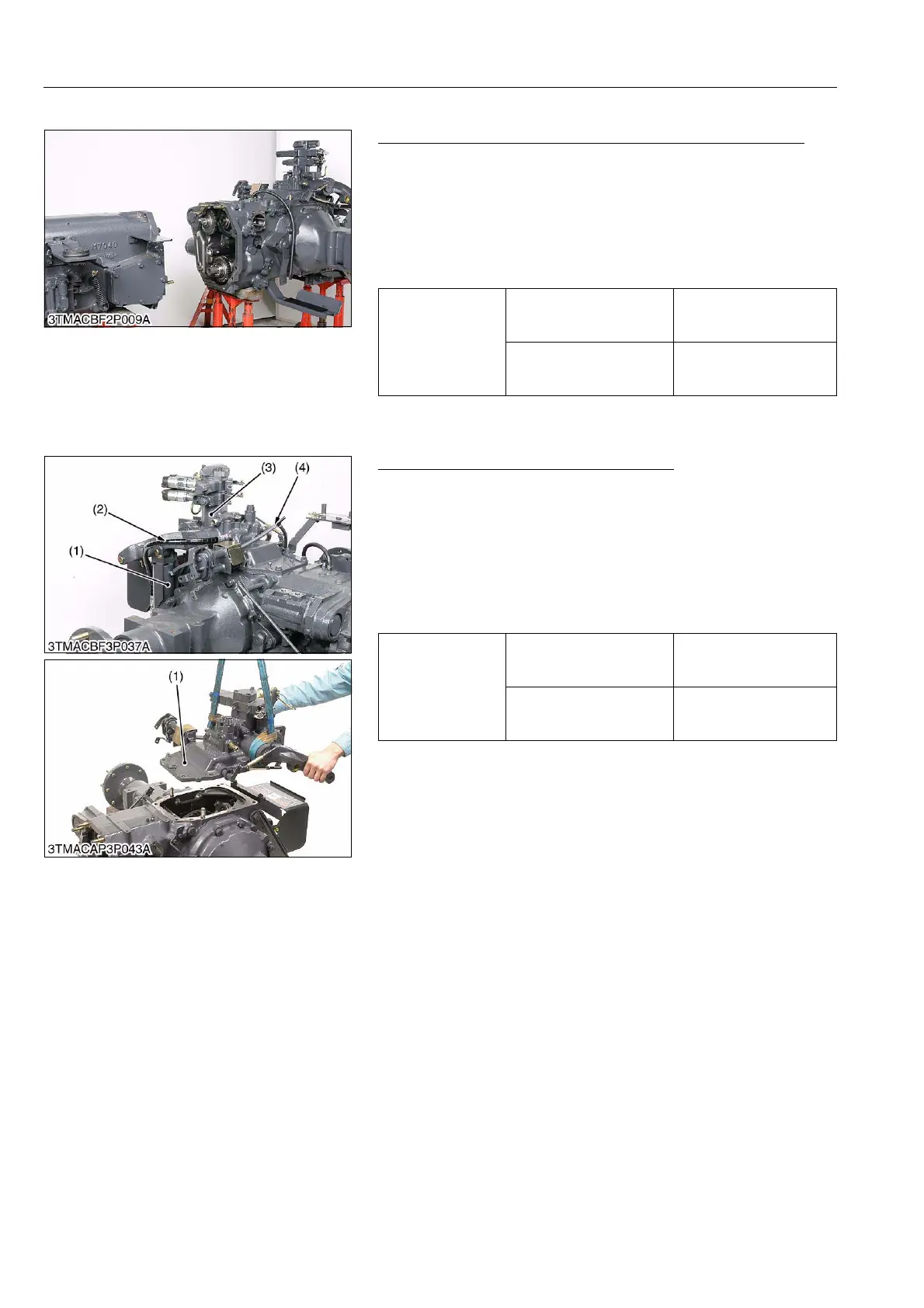

(3) Separating Transmission Case
Separating Clutch Housing Case from Transmission Case
1. Make sure the clutch housing case and transmission case are
securely mounted on the disassembling stands.
2. Remove the transmission case mounting screws and nuts.
3. Separate the transmission case from the clutch housing.
(When reassembling)
• Apply liquid gasket (Three Bond 1206C or equivalent) to joint
face of transmission case and clutch housing case.
9Y1210143TRS0049US0
[5] SEPARATING TRANSMISSION CASE
Removing 3-point Hitch Hydraulic Block
1. Disconnect the both cylinder hose (2) and return hose (4).
2. Remove the hydraulic cylinder (1).
3. Remove the 3-point hitch hydraulic block mounting screws and
nut.
4. Remove the 3-point hitch hydraulic block (3).
(When reassembling)
• Apply liquid gaskets (Three Bond 1206C or equivalent) to joint
face.
9Y1210143TRS0050US0
Tightening torque
Transmission case and
clutch housing mounting
screw, nut (M10, 9T)
60.8 to 70.5 N·m
6.2 to 7.2 kgf·m
44.9 to 52.1 lbf·ft
Transmission case and
clutch housing mounting
screw, nut (M14, 9T)
166.7 to 196.1 N·m
17.0 to 20.0 kgf·m
123.0 to 144.6 lbf·ft
Tightening torque
Cylinder hose retaining nut
34.3 to 48.1 N·m
3.5 to 4.9 kgf·m
25.3 to 35.4 lbf·ft
3-point hitch hydraulic
block mounting screw
166.7 to 196.1 N·m
17.0 to 20.0 kgf·m
123.0 to 144.3 lbf·ft
(1) Hydraulic Cylinder
(2) Cylinder Hose
(3) 3-point Hitch Cylinder Block
(4) Return Hose
