TRANSMISSION
M6040, M7040, WSM
3-S27

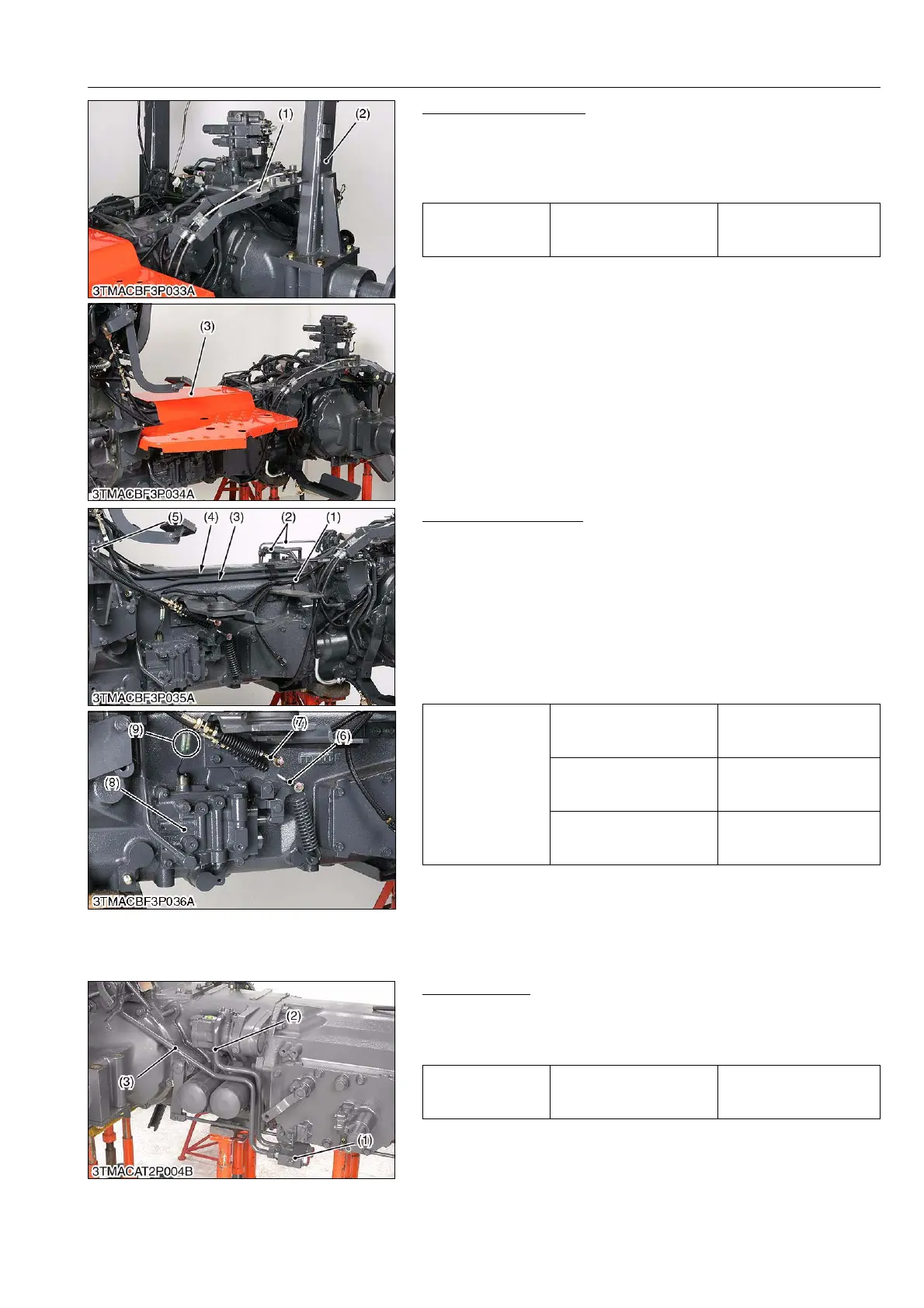

ROPS Under and Step
1. Remove the screws for parking brake support (1).
2. Remove the both ROPS under frame (2).
3. Remove the step (3).
(When reassembling)
9Y1210143TRS0046US0
Steering Support Unit
1. Remove the delivery pipe (3).
2. Remove the power steering pipe (4).
3. Remove the both brake pipe (2).
4. DIsconnect the 2-1P connectors (9) from shuttle valve (8).
5. Disconnect the clutch cable (6) from shuttle valve (8).
6. Disconnect the shuttle cable (7) from shuttle valve (8).
7. Remove the steering support unit (5).
(When reassembling)
• Be sure to bleed the air from brake line. (See page 5-S6.)
9Y1210143TRS0047US0
Hydraulic Pipe
1. Remove the 3-point hitch delivery pipe 2 (3).
2. Remove the 3-point hitch delivery pipe 1 (2) with outlet block (1).
(When reassembling)
9Y1210143TRS0048US0
Tightening torque
ROPS under frame
mounting screw
259.9 to 304.0 N·m
26.5 to 31.0 kgf·m
191.7 to 224.2 lbf·ft
(1) Parking Brake Support
(2) ROPS Under Frame
(3) Step
Tightening torque
Delivery pipe joint screw
29.4 to 34.3 N·m
3.0 to 3.5 kgf·m
21.7 to 25.3 lbf·ft
Power steering pipe
retaining nut
49.0 to 68.6 N·m
5.0 to 7.0 kgf·m
36.2 to 50.6 lbf·ft
Brake pipe retaining nut
15.7 to 23.5 N·m
1.6 to 2.4 kgf·m
11.6 to 17.4 lbf·ft
(1) Wire Harness
(2) Brake Pipe
(3) PTO Delivery Pipe
(4) Power Steering Pipe
(5) Steering Support Unit
(6) Clutch Cable
(7) Shuttle Cable
(8) Shuttle Valve
(9) 2-1P Connector
Tightening torque
3-point hitch delivery pipe
retaining nut
107.9 to 117.7 N·m
11.0 to 12.0 kgf·m
79.6 to 86.8 lbf·ft
(1) Outlet Block
(2) 3-point Hitch Delivery Pipe 1
(3) 3-point Hitch Delivery Pipe 2
