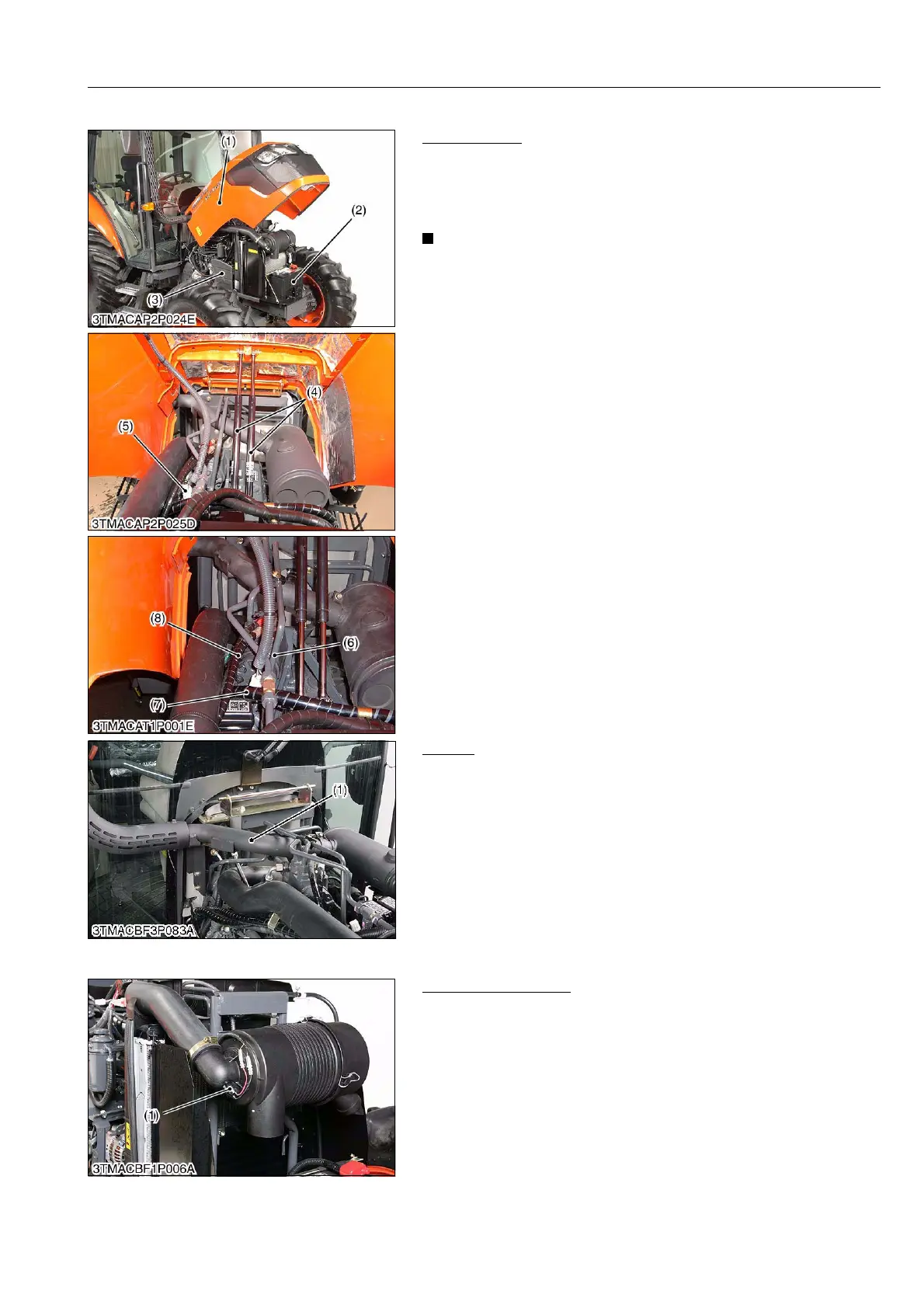

(5) Bonnet and Muffler Pipe (CABIN Model)
Preparation 1
1. Open the bonnet (1) and disconnect the battery (2) negative
terminal and 6P connector (5) for head light.
2. Remove the bonnet dampers (4) and bonnet (1).
3. Remove the both side covers (3).
IMPORTANT
• When disconnecting the battery cables, disconnect the
grounding cable first. When connecting, positive cable
first.
(When reassembling)
• Connect the 6P connector (5) for head light within the space of
controller pipe (6), heater hose (7) and delivery hose (8) as
shown photo.
9Y1210143TRS0025US0
Muffler
1. Remove the muffler pipe (1).
9Y1210143TRS0026US0
(6) Air Cleaner Harness Connector
Air Cleaner Harness
1. Disconnect the 1P connectors from the air cleaner switch (1).
2. Remove the air cleaner harness clamp.
9Y1210143TRS0027US0
(1) Bonnet
(2) Battery
(3) Side Cover
(4) Damper
(5) 6P Connector (Head Light)
(6) Controller Pipe
(7) Heater Hose
(8) Delivery Hose
(9) Air Cleaner Switch
(1) Muffler Pipe
(1) Air Cleaner Switch
