wsm M7040 - Easy Checker

ELECTRICAL SYSTEM
M6040, M7040, WSM
9-M22
[2] EASY CHECKER™
If the warning lamps in the Easy Checker™ come on
during operation, immediately stop the engine, and find
the cause as shown below.
Never operate the tractor while Easy Checker™
lamp is on.
 Engine Oil Pressure
If the oil pressure in the engine goes below the
prescribed level, the warning lamp in the Easy
Checker™ will come on.
If this should happen during operation, and it does
not go off when the engine is accelerated to more than
1000 min
-1
(rpm), check level of engine oil.
 Fuel Level
If the fuel in the tank goes below the prescribed level,
the warning lamp in the Easy Checker™ will come on.
If this should happen during operation, refuel as
soon as possible.
 Electrical Charge
If the alternator is not charging battery, the Easy
Checker™ will come on.
If this should happen during operation, check the
electrical charging system.
 Air Cleaner
If the air cleaner is clogged, the warning lamp in the
Easy Checker™ will come on.
If this should happen during operation, clean the air
cleaner element.
9Y1210143ELM0022US0
Prescribed level
ROPS model
20 L
5.3 U.S.gals
4.4 Imp.gals
CABIN model
15 L
4.0 U.S.gals
3.3 Imp.gals

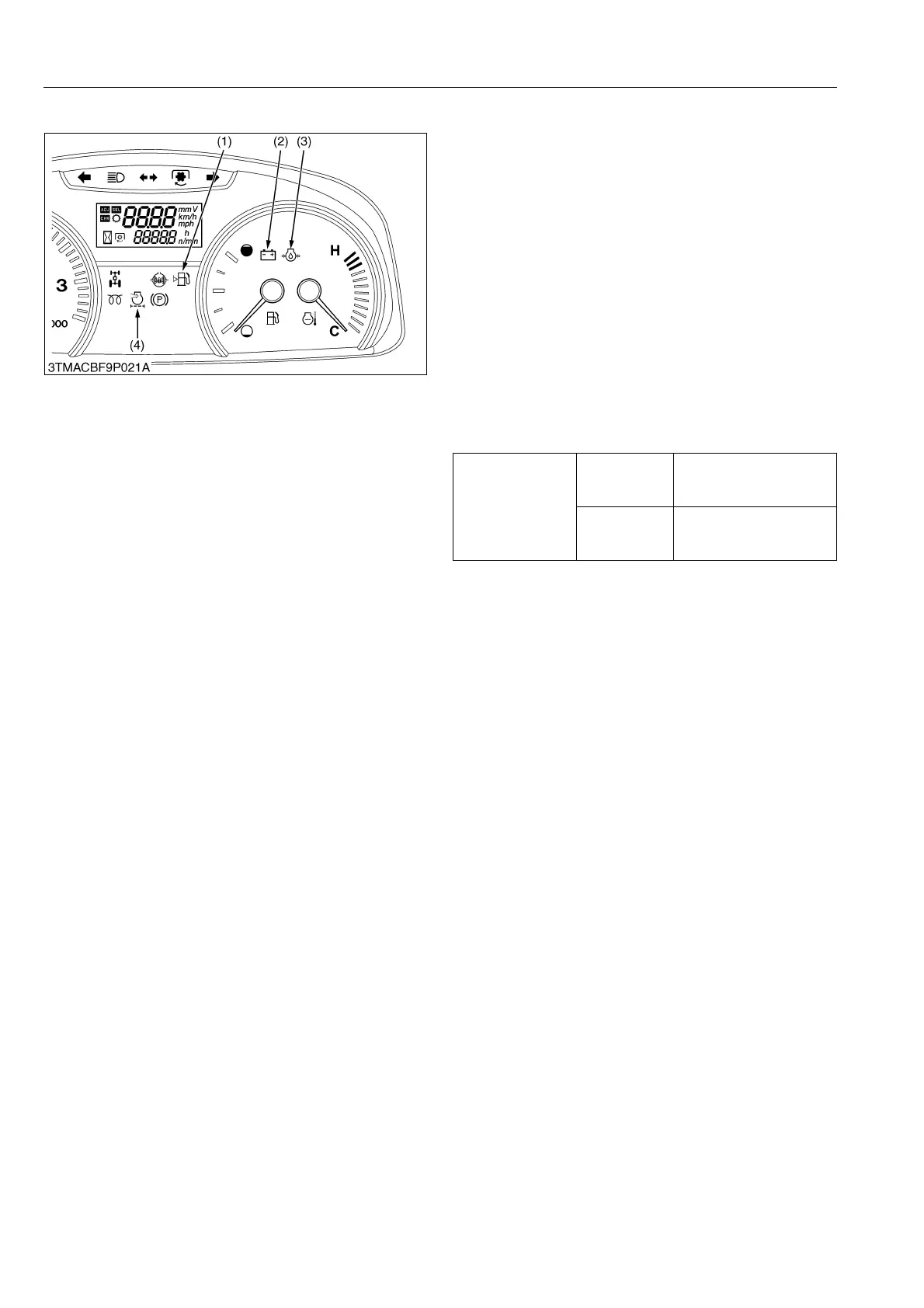

(1) Fuel Level Indicator
(2) Electrical Charge Indicator
(3) Engine Oil Pressure Indicator
(4) Air Cleaner Indicator
