CABIN
M6040, M7040, WSM
10-S47

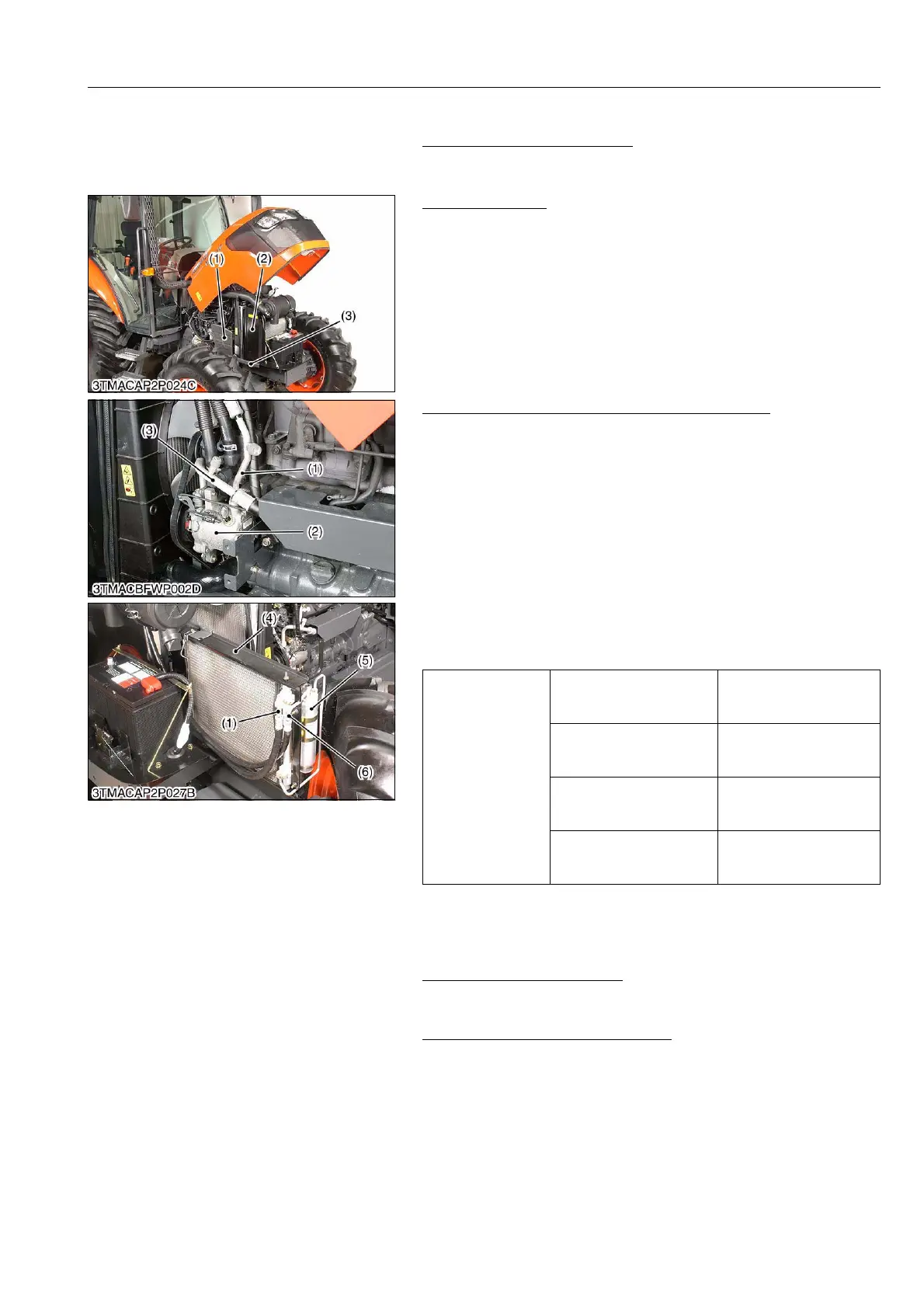

(4) Removing Air Conditioner Pipes
Discharging Refrigerant Gas
1. See page 10-S17.
9Y1210143CAS0074US0
Cover and Guide
1. Remove the both side panel guides (3).
2. Remove the both side panels (2).
3. Remove the both side covers (1).
9Y1210143CAS0080US0
High Pressure Pipe 1, 2 and Low Pressure Pipe
1. Disconnect the low pressure pipe (3) and high pressure pipe 1
(1) from the compressor (2), then cap the open fittings
immediately to keep moisture out of the system.
2. Slide the condenser (4).
3. Disconnect the high pressure pipe 1 (1) from the condenser (4)
and cap the open fittings immediately to keep moisture out of
the system.
4. Disconnect the high pressure pipe 2 (6) from the receiver (5)
and cap the open fittings immediately to keep moisture out of
the system.
(When reassembling)
• Apply compressor oil (DENSO CO. ND-OIL8) to the O-rings and
take care not to damage them.
9Y1210143CAS0081US0
Seat, Mats and Floor Cover
1. See page 10-S44.
9Y1210143CAS0082US0
Air Conditioner Ducts and Covers
1. See page 10-S45.
9Y1210143CAS0083US0
(1) Side Cover
(2) Side Panel
(3) Side Panel Guide
Tightening torque
Low pressure pipe
mounting screw
(compressor side)
7.9 to 11.8 N·m
0.8 to 1.2 kgf·m
5.8 to 8.7 lbf·ft
High pressure pipe 1
mounting screw
(compressor side)
7.9 to 11.8 N·m
0.8 to 1.2 kgf·m
5.8 to 8.7 lbf·ft
High pressure pipe 1
mounting screw
(Condenser side)
7.9 to 11.8 N·m
0.8 to 1.2 kgf·m
5.8 to 8.7 lbf·ft
High pressure pipe 2
retaining nut
(receiver side)
11.8 to 14.7 N·m
1.2 to 1.5 kgf·m
8.7 to 10.8 lbf·ft
(1) High Pressure Pipe 1
(2) Compressor
(3) Low Pressure Pipe
(4) Condenser
(5) Receiver
(6) High Pressure Pipe 2
To Next Page
