CABIN
M6040, M7040, WSM
10-S45

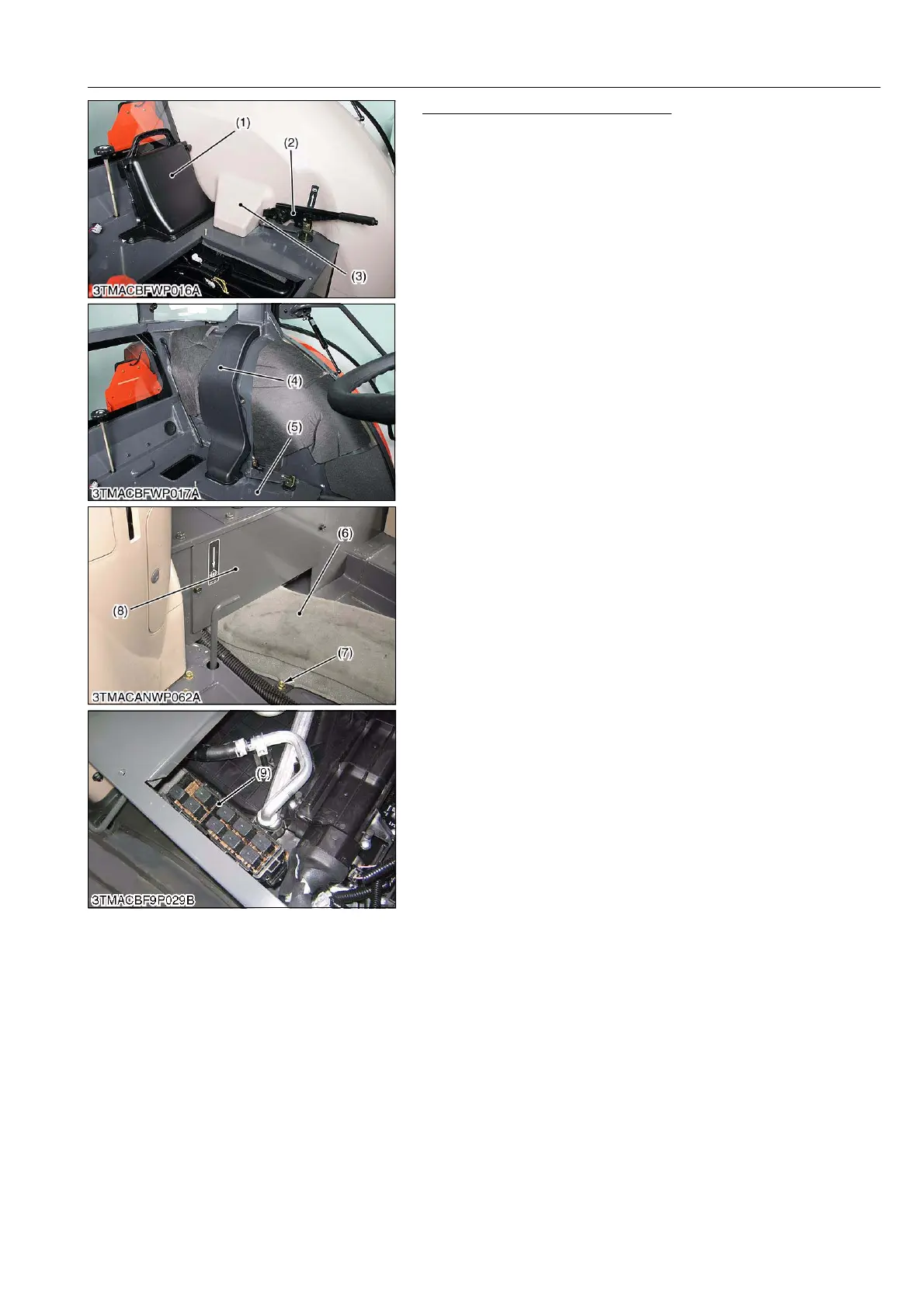

Air Conditioner Ducts and Covers
1. Remove the duct 1 (1).
2. Remove the parking brake lever (2).
3. Remove the inner cover (L.H.) (3).
4. Remove the duct 2 (4).
5. Remove the seat under cover 1 (5).
6. Remove the seat under cover 2 (8).
7. Remove the relay box (9) from seat under cover 2 (8).
8. Remove the duct 3 mounting screw (7) for removing duct 3 (6).
9Y1210143CAS0076US0
(1) Duct 1
(2) Parking Brake Lever
(3) Inner Cover (L.H.)
(4) Duct 2
(5) Seat Under Cover 1
(6) Duct 3
(7) Screw
(8) Seat Under Cover 2
(9) Relay Box
KiSC issued 07, 2012 A
