CABIN
M6040, M7040, WSM
10-S53

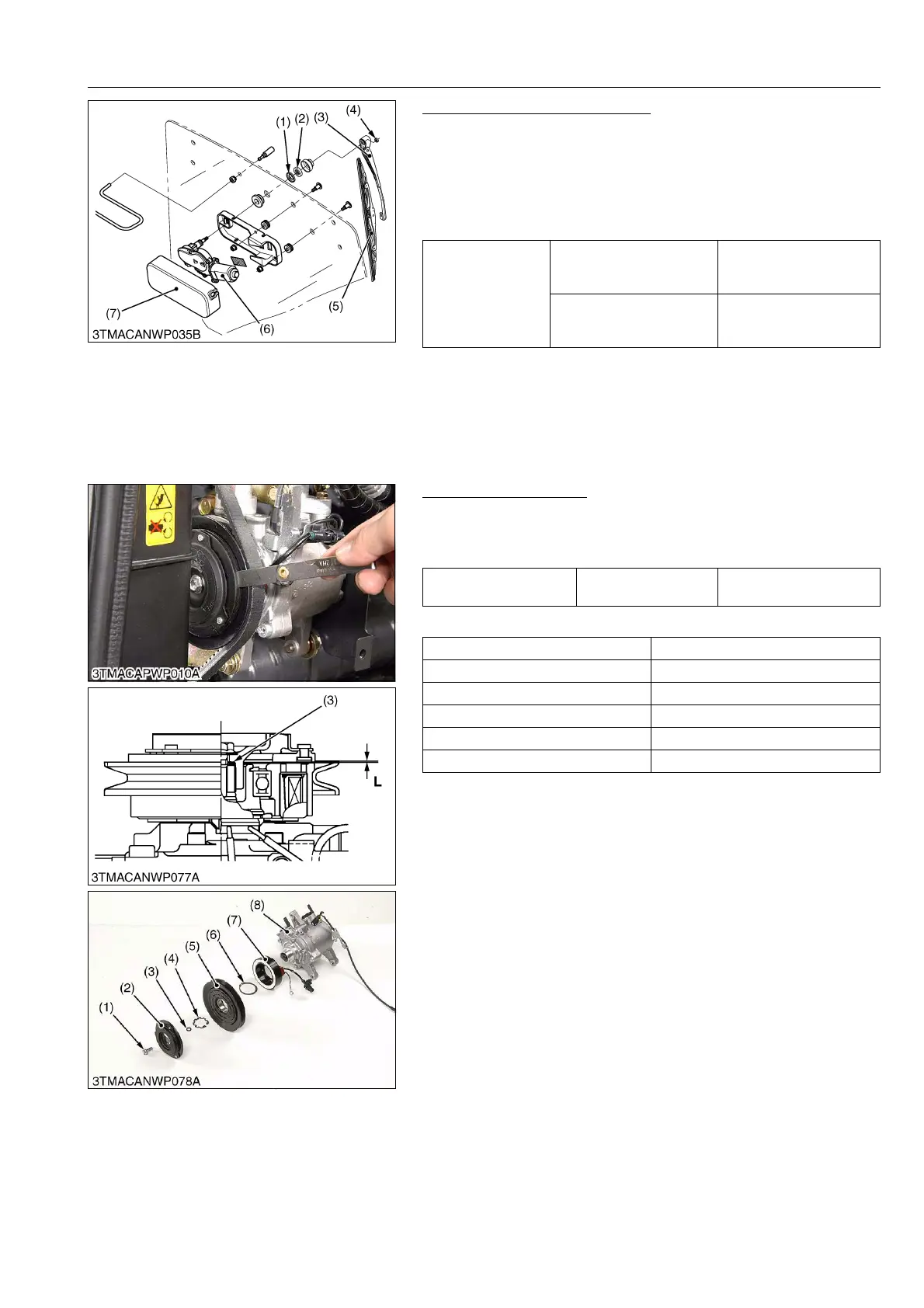

Rear Wiper Motor (If Equipped)
1. Remove the wiper motor cover (7).
2. Disconnect the 4P connector from rear wiper motor.
3. Remove the wiper arm mounting nut (4) and wiper arm (3).
4. Remove the wiper link cap (1) and nut (2).
5. Remove the rear wiper motor mounting screws, then take out
the rear wiper motor (6).
9Y1210143CAS0097US0
[3] SERVICING
Adjustment of Air Gap
1. Measure the air gap with a feeler gauge.
2. When the measurement value comes off from factory
specification, adjustment shim (3) is added or deleted.
(Reference)
9Y1210143CAS0098US0
Tightening torque
Wiper arm mounting nut
7.9 to 9.3 N·m
0.8 to 1.0 kgf·m
5.8 to 6.9 lbf·ft
Wiper motor mounting
screw
7.9 to 9.3 N·m
0.8 to 1.0 kgf·m
5.8 to 6.9 lbf·ft
(1) Wiper Link Cap
(2) Nut
(3) Wiper Arm
(4) Nut
(5) Wiper Blade
(6) Rear Wiper Motor
(7) Wiper Motor Cover
Air gap "L" Factory specification
0.30 to 0.65 mm
0.0118 to 0.0255 in.
Adjusting Shim Size Code No.
0.10 mm (0.0039 in.) T1065-87340
0.15 mm (0.0059 in.) T1065-87350
0.40 mm (0.016 in.) T1065-87360
0.60 mm (0.024 in.) T1065-87370
1.0 mm (0.0394 in.) T1065-87380
(1) Magnetic Clutch Mounting Screw
(2) Hub Plate
(3) Shim
(4) External Snap Ring
(5) Rotor
(6) External Snap Ring
(7) Stator
(8) Compressor Body
L: Air Gap
