GENERAL
M6040, M7040, WSM
G-82

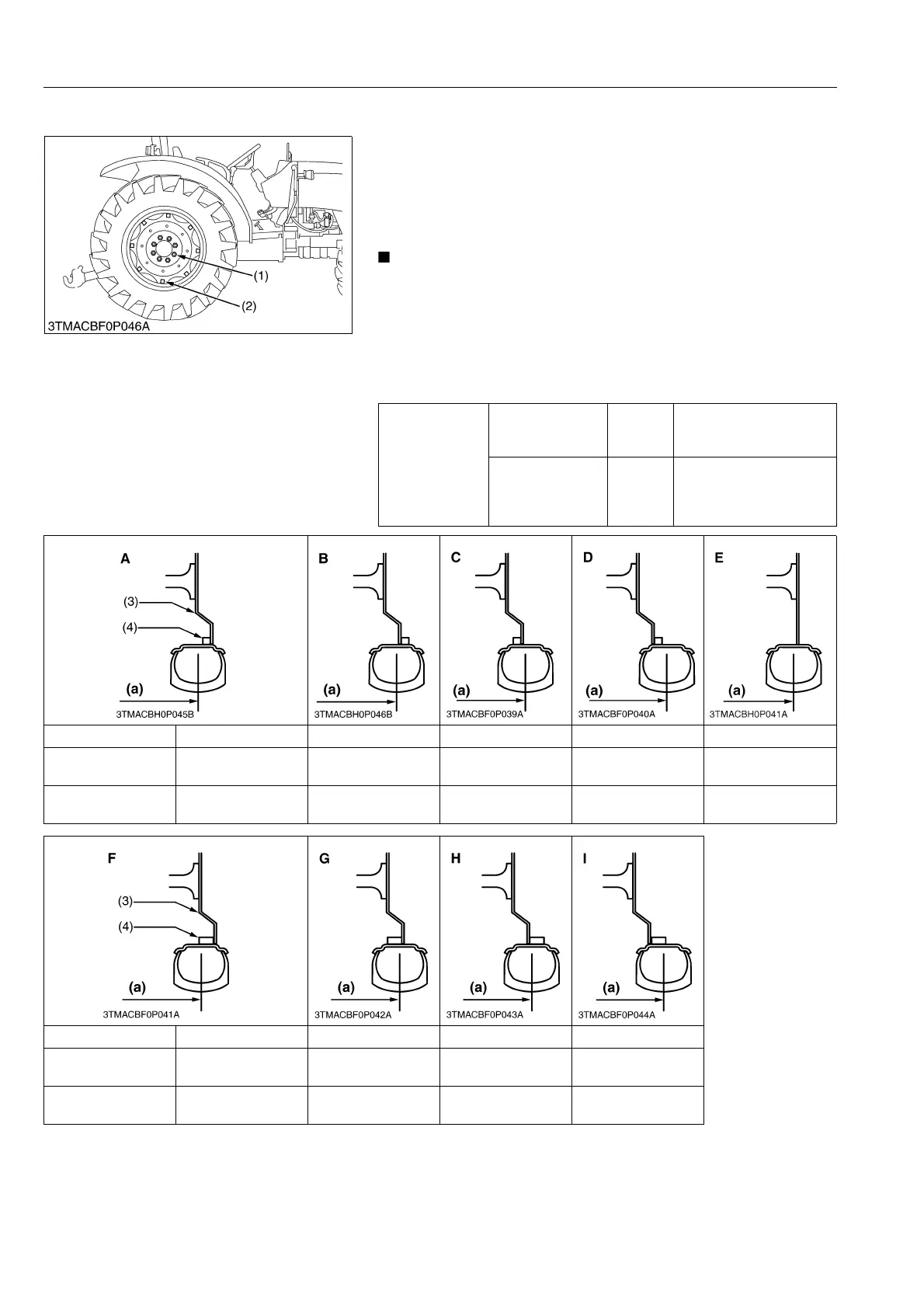

(2) Rear Wheels
Rear tread width can be adjusted as shown with the standard
equipped tires.
To change the tread width
1. Remove the wheel rim and / or disc mounting bolts.
2. Change the position of the rim and disc (right and left) to the
desired position, and tighten the bolts.
IMPORTANT
• Always attach wheels as shown in the figure.
• If not attached as illustrated, transmission parts may be
damaged.
• When re-fitting or adjusting a wheel, tighten the bolts to the
following torques then recheck after driving the tractor
200 m (200 yards) and thereafter according to service
interval. (See page G-22.)
9Y1210143GEG0118US0
Tightening
torque
Rear wheel
mounting nut
M16
259.9 to 304.0 N·m
26.5 to 31.0 kgf·m
191.7 to 224.2 lbf·ft
Rear disc
mounting nut
(Both steel disc
and cast iron disc)
M16
259.9 to 304.0 N·m
26.5 to 31.0 kgf·m
191.7 to 224.2 lbf·ft
Tread (a)ABCDE
18.4-26 – – – –
1495 mm
58.86 in.
420/85R30
1416 mm
55.75 in.
1529 mm
60.20 in.
1619 mm
63.74 in.
1733 mm
68.23 in.
–
Tread (a) F G H I
14.9R28
1419 mm
55.87 in.
1531 mm
60.28 in.
1613 mm
63.50 in.
1725 mm
67.91 in.
420/70R28 –
1545 mm
60.83 in.
1599 mm
62.95 in.
1737 mm
68.38 in.
(1) Rear Wheel Mounting Nut
(2) Rear Disc Mounting Nut
(3) Rear Wheel Disc (4) Rear Wheel Rim (a) Tread
KiSC issued 07, 2012 A
