HYDRAULIC SYSTEM
M6040, M7040, WSM
8-M7

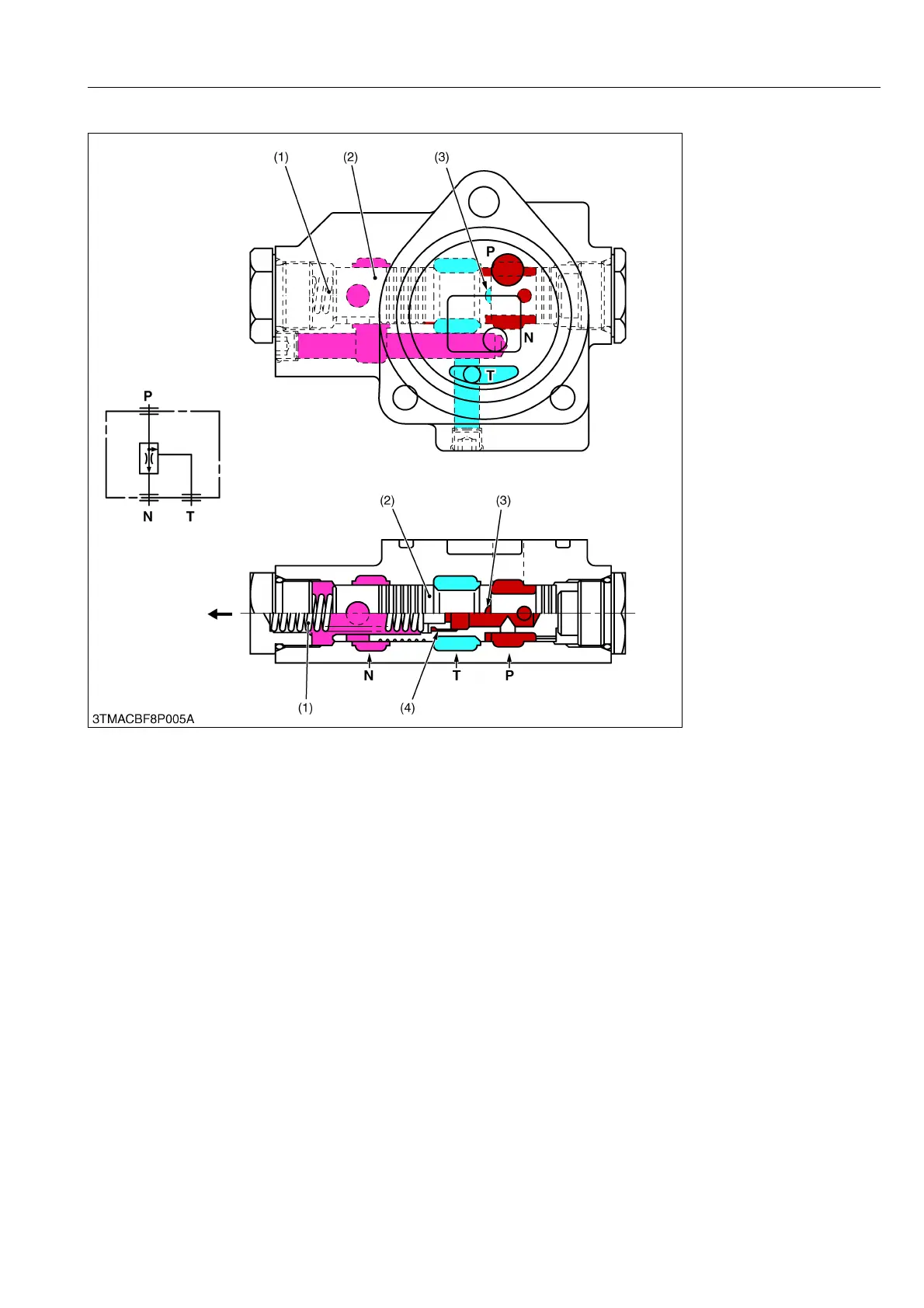

[2] FLOW PRIORITY VALVE
1. This priority valve controls for 40 L/min (11 U.S.gals/min, 8.8 Imp.gals/min) to flow to the 3P control valve from
the hydraulic pump.
2. The oil flows from P port to N port through the orifice (4).
3. The pressure is generated when oil passes the orifice (4).
This pressure and spring (1) balance and control the oil amount.
9Y1210143HYM0006US0
(1) Spring
(2) Spool
(3) Groove
(4) Orifice
P: Pressure Port
N: Neutral Port
T: Tank Port
