ENGINE
M6040, M7040, WSM
1-S28

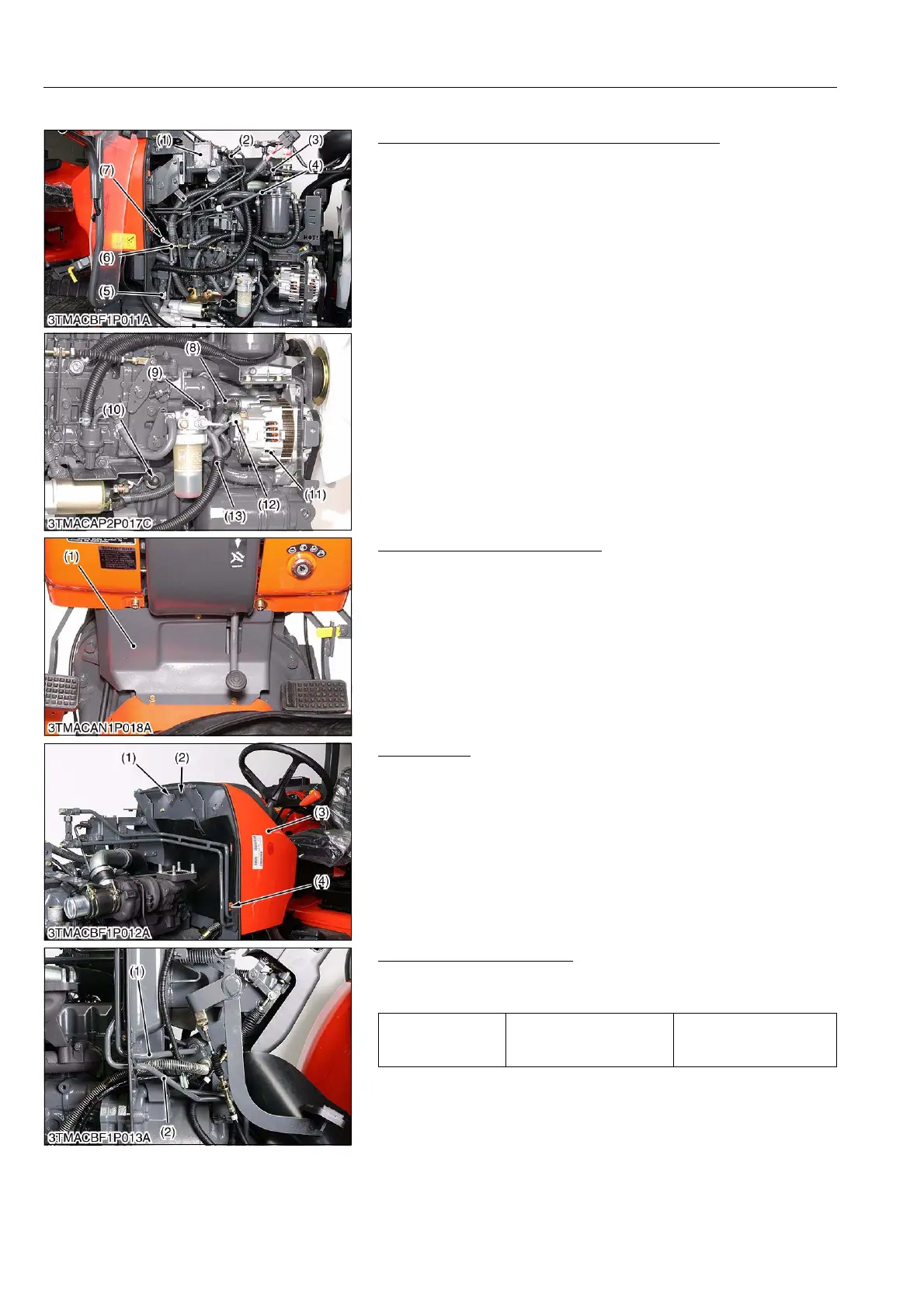

(2) Separating Engine
Accelerator Wire, Fuel Hose and Wire Harness
1. Disconnect the accelerator wire (6) and fuel hose (4).
2. Disconnect the wire harness from water temperature sensor (7),
engine speed sensor (5) and glow plug (3).
3. Disconnect the fuel hose (13) from fuel filter.
4. Disconnect the 2P connector (12) from alternator (11) and wire
harness from alternator B terminal (8).
5. Disconnect the wire harness from the engine oil pressure switch
(10).
6. Disconnect the 3P connector (9) from engine stop solenoid.
7. Disconnect the brake hose (drain) (2) from the brake master
cylinder (1).
9Y1210143ENS0036US0
Steering Support Under Cover
1. Remove the steering support under cover (1).
9Y1210143ENS0037US0
Rear Bonnet
1. Loosen the rear bonnet mounting screws (4).
2. Remove the seal (1) and screw (2).
3. Disconnect the harness connectors and remove the rear bonnet
(3).
9Y1210143ENS0038US0
Oil Cooler Pipe and Clamp
1. Remove the oil cooler pipe 1 (1) and oil cooler pipe 2 (2).
When reassembling)
9Y1210143ENS0039US0
(1) Brake Master Cylinder
(2) Brake Hose
(3) Glow Plug
(4) Fuel Hose
(5) Engine Speed Sensor
(6) Accelerator Wire
(7) Water Temperature Sensor
(8) Alternator B Terminal
(9) 3P Connector
(10) Engine Oil Pressure Switch
(11) Alternator
(12) 2P Connector
(13) Fuel Hose
(1) Steering Support Under Cover
(1) Seal
(2) Screw
(3) Rear Bonnet
(4) Mounting Screw
Tightening torque Oil cooler pipe retaining nut
49.0 to 68.6 N·m
5.0 to 7.0 kgf·m
36.2 to 50.6 lbf·ft
(1) Oil Cooler Pipe 1 (2) Oil Cooler Pipe 2
