ENGINE
M6040, M7040, WSM
1-S29

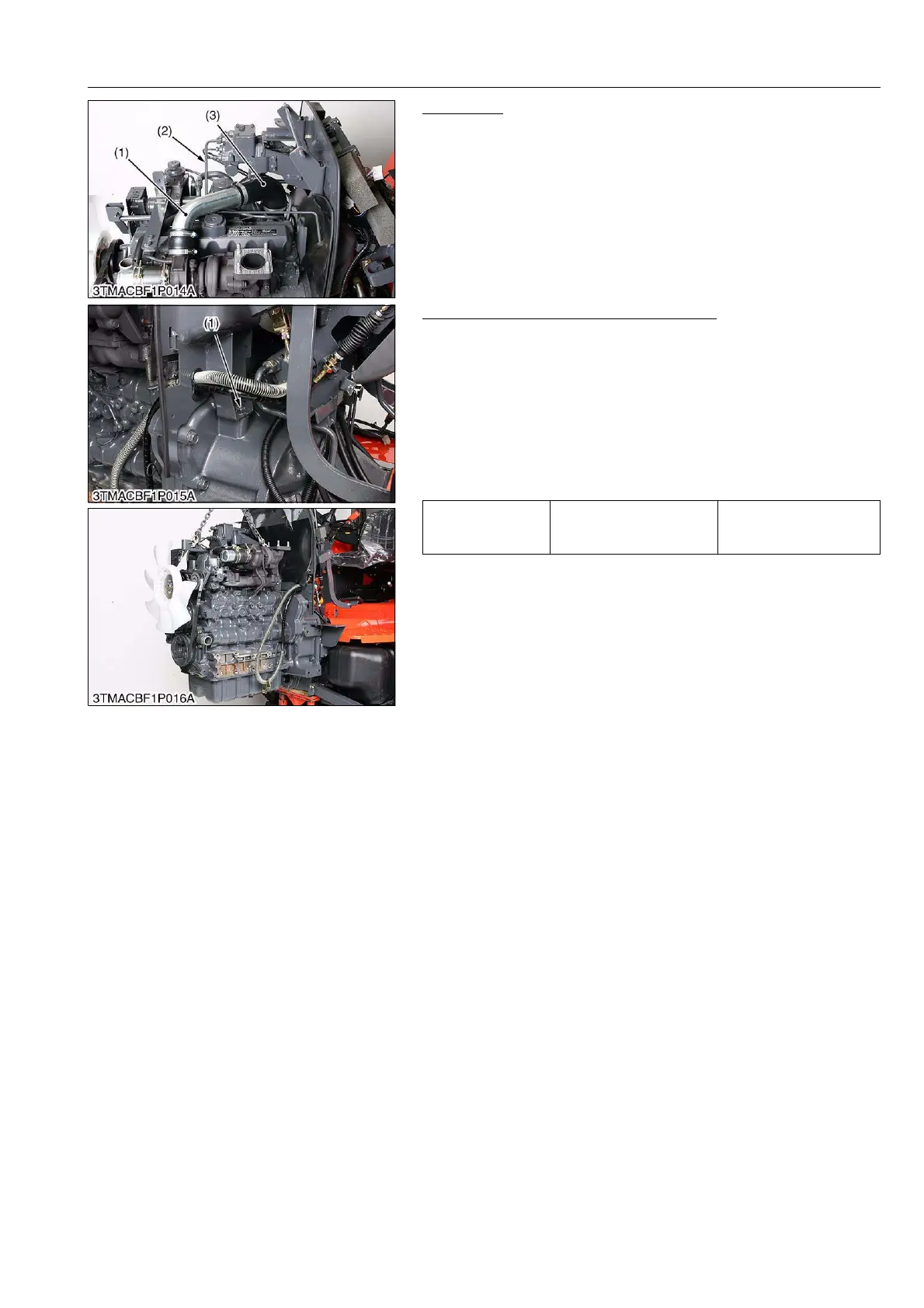

Brake Pipe
1. Remove the intake hose (3) and pipe (1).
2. Remove the brake pipe (2).
9Y1210143ENS0040US0
Separating Engine from Clutch Housing
1. Hoist the engine with a the hoist and chain.
2. Remove the steering support mounting screws (1) for front side.
3. Remove the engine mounting screws and nuts and separate the
engine from clutch housing.
(When reassembling)
• Apply molybdenum disulphide (Three Bond 1901 or equivalent)
to the splines of damper disc boss.
• Apply liquid gasket (Three Bond 1141, 1211 or equivalent) to
joint face of the engine and clutch housing.
9Y1210143ENS0041US0
(1) Intake Pipe
(2) Brake Pipe
(3) Intake Hose
Tightening torque
Engine and clutch housing
mounting screw and nut
(M14, 7T)
124 to 147 N·m
12.6 to 15.0 kgf·m
91.2 to 108 lbf·ft
(1) Steering Support Mounting Screw
To Next Page
