wsm M7040 - Removing Master Cylinder (CABIN Model)

BRAKES
M6040, M7040, WSM
5-S9
Master Cylinder

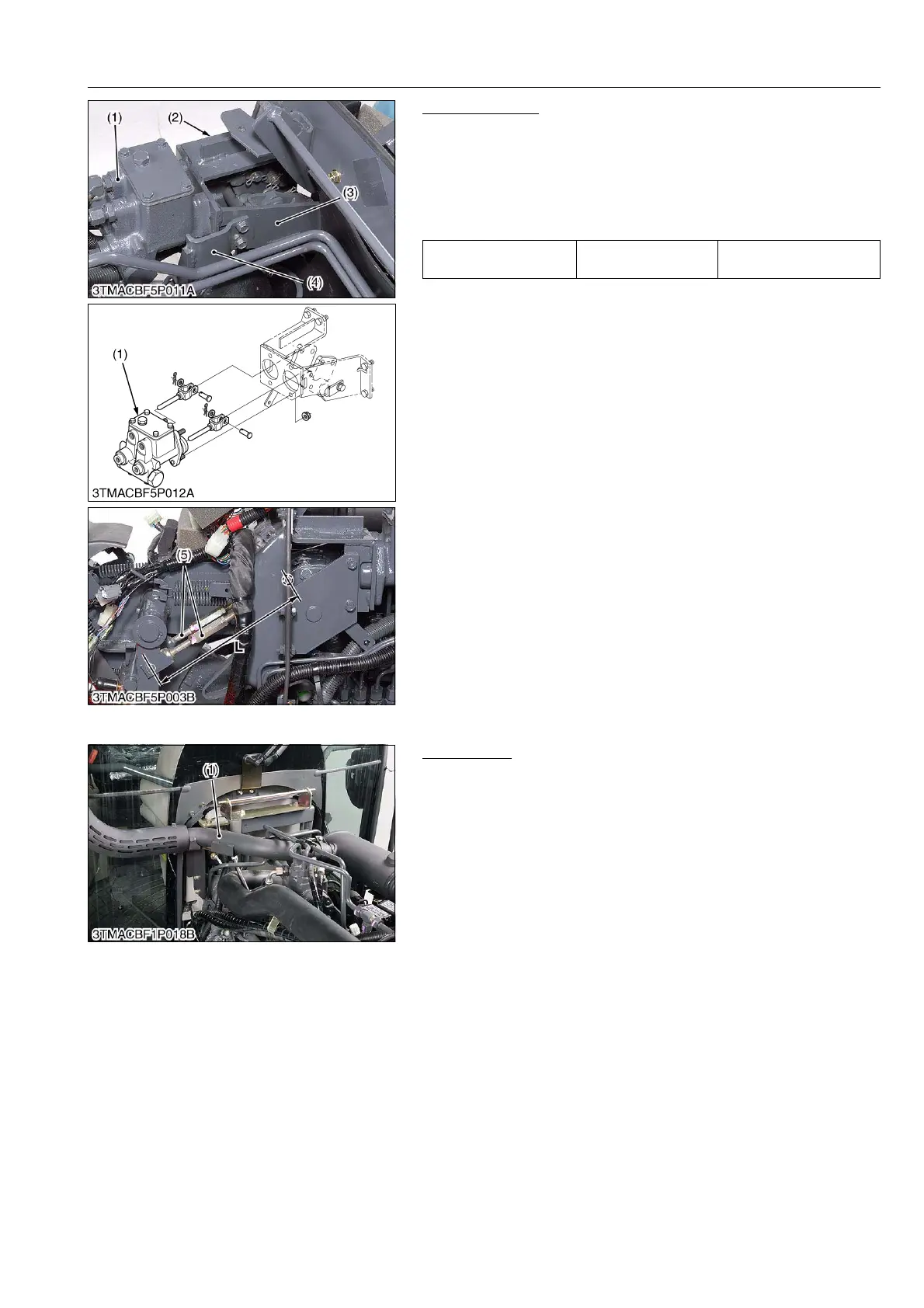

1. Remove the master cylinder (1) with master cylinder bracket (2),
(3) and stay (4).
2. Remove the master cylinder assembly (1).
(When reassembling)
• After mounting the master cylinder assembly, be sure to bleed
air. (See page 5-S4.)
9Y1210143BRS0013US0
(2) Removing Master Cylinder (CABIN Model)
Muffler Pipe
1. Remove the muffler pipe (1).
9Y1210143BRS0014US0
Brake rod length "L" Reference value
223 mm
8.78 in.
(1) Master Cylinder
(2) Master Cylinder Bracket
(3) Master Cylinder Bracket
(4) Stay
(5) Brake Rod
(1) Muffler Pipe
