(1) Engine Start Condition
Engine Start Condition
IMPORTANT
• Before starting the engine, make sure the gear shift lever at
the neutral position.
• Place the PTO lever to the OFF position.
• Apply the parking brake.
1. Check the engine start condition as follows:
NOTE

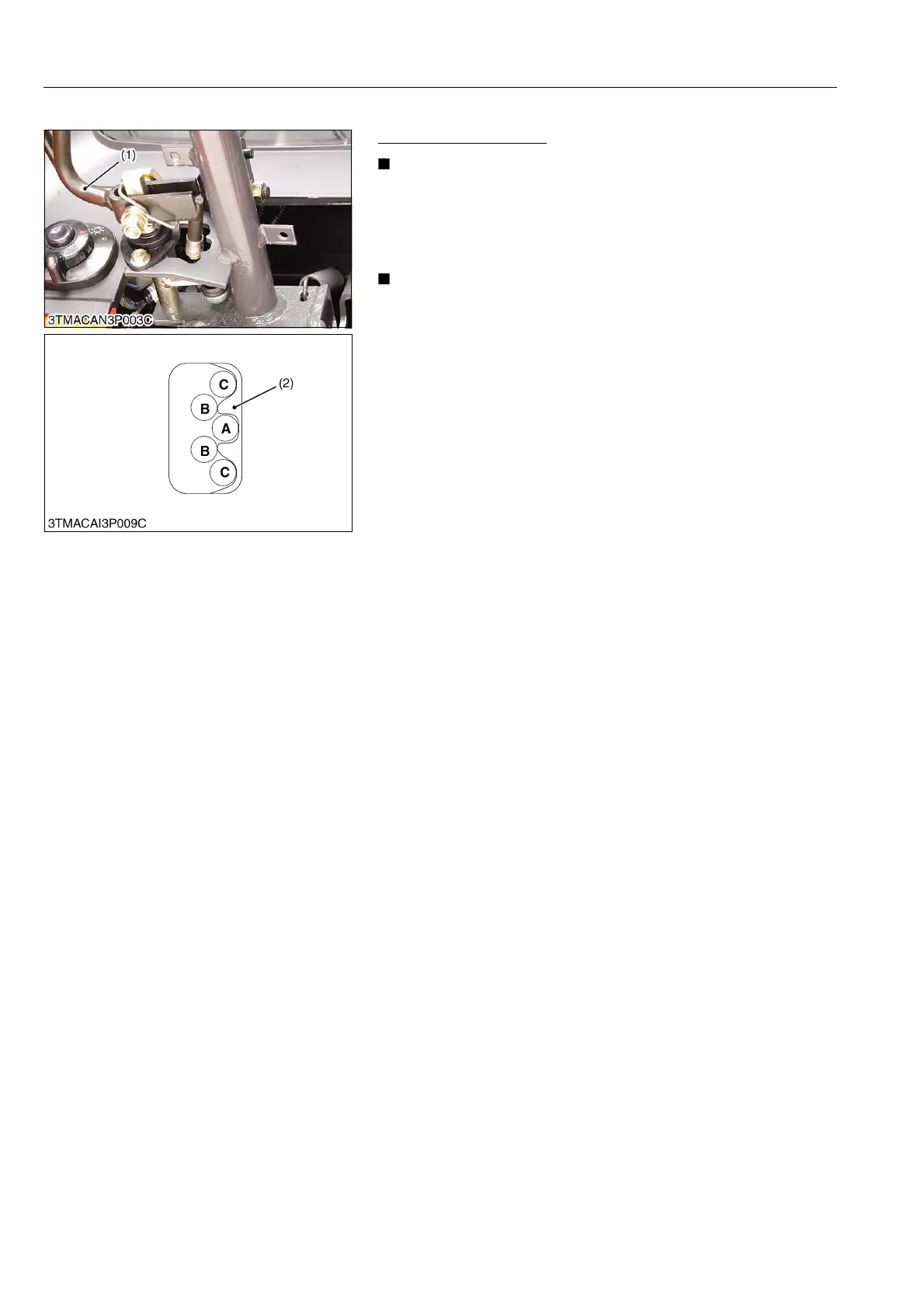

• Do not touch the shuttle lever (1) when the shuttle lever (1)
is at specified position as shown in figure.
(Reference)
• Position A: Engine start
• Position B: Engine does not start
• Position C: Engine does not start
2. If the engine started at position B and/or C, adjust the shuttle
cable with retaining nut.
9Y1210143TRS0005US0
(1) Shuttle Lever (2) Shuttle Lever Guide
