wsm M7040 - Air Conditioning System; Structure

CABIN
M6040, M7040, WSM
10-M1
1. AIR CONDITIONING SYSTEM
[1] STRUCTURE
This cabin is equipped with the inner air circulation/outside air inhalation type large capacity thin air conditioner.
The inner air inhaled from the inner air filter (4) provided behind the seats goes through the inner air duct (5) and
goes into the air conditioner unit (7). The fresh air inhaled from the fresh air filter (3) goes through the center pillar on
the left and goes into the air conditioner unit (7) via the fresh air duct (5).
The inner air and fresh air inhaled into the air conditioner unit (7) is cooled and dehumidified in the cooling section
of the air conditioner unit (7). The comfortable air, warmed moderately with the heater, comes from the air duct with
low humidity.
The six dashboard air outlets allow opening and closing, and adjusting direction of winds. The defroster air outlet
is opened and closed by moving the mode dial on the control panel (1).
9Y1210143CAM0001US0

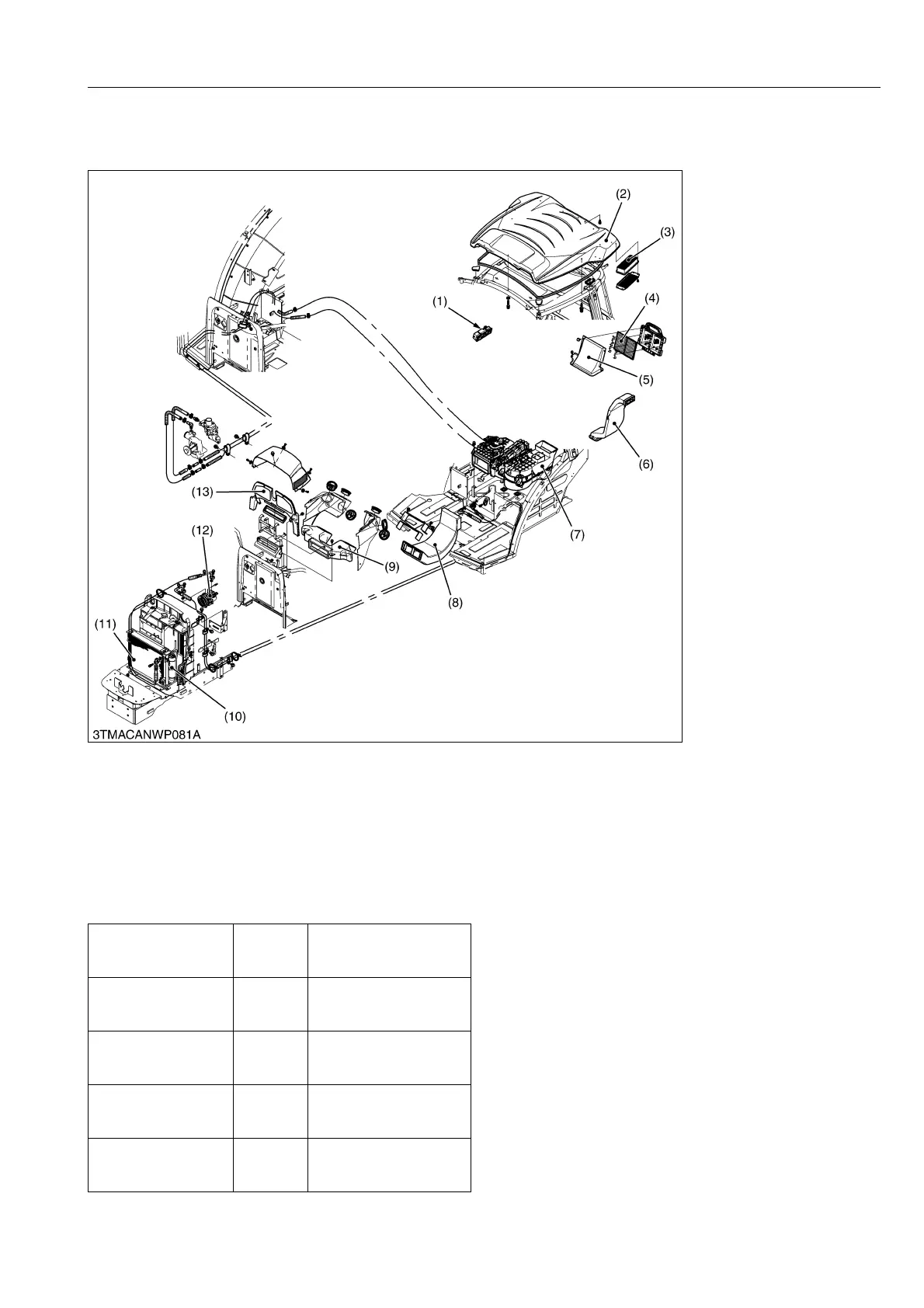

(1) Control Panel
(2) Outer Roof
(3) Fresh Air Filter
(4) Inner Air Filter
(5) Inner Air Duct
(6) Fresh Air Duct
(7) Air Conditioner Unit
(8) Front Duct
(9) Dashboard Blow Port
(10) Receiver
(11) Condenser
(12) Compressor
(13) Defroster Blow Port
Capacity (Cooling)
Factory
specifica-
tion
3.95 kW
Capacity (Warming)
Factory
specifica-
tion
4.30 kW
Kinds of refrigerant
(Charge amount)
Factory
specifica-
tion
R134a
0.85 to 0.95 kg
1.87 to 2.09 lbs
Pressure sensor (Low)
Factory
specifica-
tion
0.196 MPa
2.0 kgf/cm
2
28.4 psi
Pressure sensor (High)
Factory
specifica-
tion
3.14 MPa
32.0 kgf/cm
2
455 psi
KiSC issued 07, 2012 A
