TRANSMISSION
M6040, M7040, WSM
3-M15

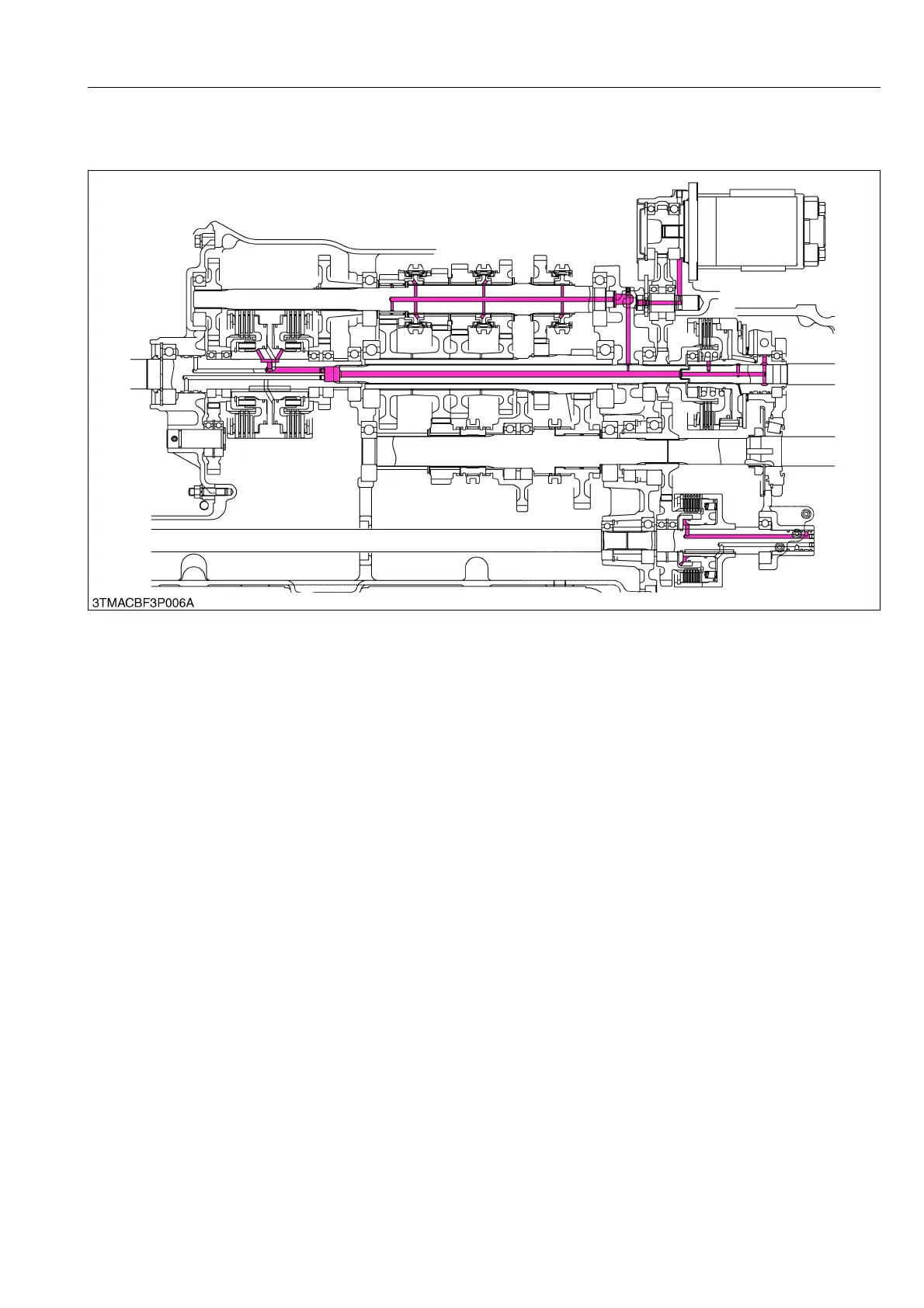

3. LUBRICATION FOR TRANSMISSION
[1] HYDRAULIC SHUTTLE MODEL
Hydraulic shuttle section, main shift change synchromesh gears, hydraulic pump drive / driven gear, PTO
hydraulic pack and PTO brake are forcedly lubricated.
The lubrication oil from the PTO valve lubricates to PTO clutch holder and the each sections through PTO
propeller shaft and 1st shaft.
The 4WD clutch pack is lubricated as the same time as 2WD system line.
9Y1210143TRM0015US0
