wsm M7040 - 5 Disassembling and Assembling; Hydraulic Shuttle Valve and Solenoid Valve Assembly; Removing Fuel Tank (CABIN Model); Removing Fuel Tank (ROPS Model)

TRANSMISSION
M6040, M7040, WSM
3-S14

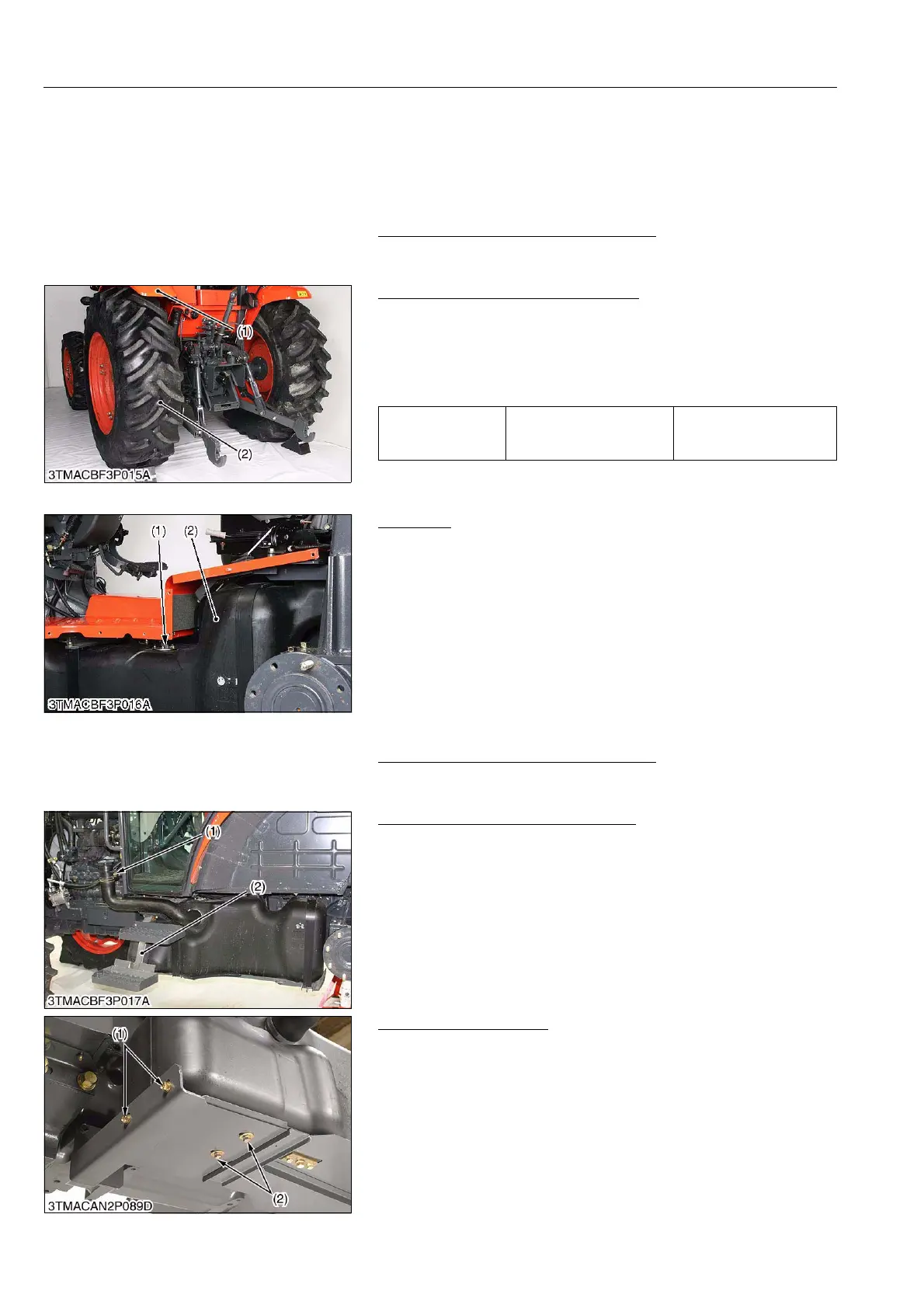

5. DISASSEMBLING AND ASSEMBLING
[1] HYDRAULIC SHUTTLE VALVE AND SOLENOID VALVE
ASSEMBLY
(1) Removing Fuel Tank (ROPS Model)
Draining Transmission Fluid and Fuel
1. See page G-10 and G-21.
9Y1210143TRS0011US0
Rear Wheel (L.H.) and Fender (L.H.)
1. Place the disassembling stand under the transmission case.
2. Remove the rear wheel (2).
3. Place the disassembling stand under the rear axle case.
4. Remove the fender (1).
(When reassembling)
9Y1210143TRS0012US0
Fuel Tank
1. Disconnect the wire harness from fuel level sensor (1).
2. Remove the fuel filling port screw.
3. Remove the fuel hose and overflow hose.
4. Remove the fuel tank (2).
9Y1210143TRS0013US0
(2) Removing Fuel Tank (CABIN Model)
Draining Transmission Fluid and Fuel
1. See page G-10 and G-21.
9Y1210143TRS0011US0
Fuel Filling Port and Auxiliary Step
1. Remove the fuel filling port mounting screw (1).
2. Remove the auxiliary step (2).
9Y1210143TRS0015US0
Fuel Tank Under Cover
1. Remove the fuel tank mounting screws (1) and under cover
mounting screws (2).
9Y1210143TRS0016US0
Tightening torque Rear wheel mounting nut
260 to 304 N·m
26.5 to 31.0 kgf·m
191.8 to 224.2 lbf·ft
(1) Fender (2) Rear Wheel
(1) Fuel Level Sensor (2) Fuel Tank
(1) Fuel Filling Port Mounting Screw (2) Auxiliary Step
(1) Fuel Tank Mounting Screw (2) Under Cover Mounting Screw
KiSC issued 07, 2012 A
