[10] TRANSMISSION CASE

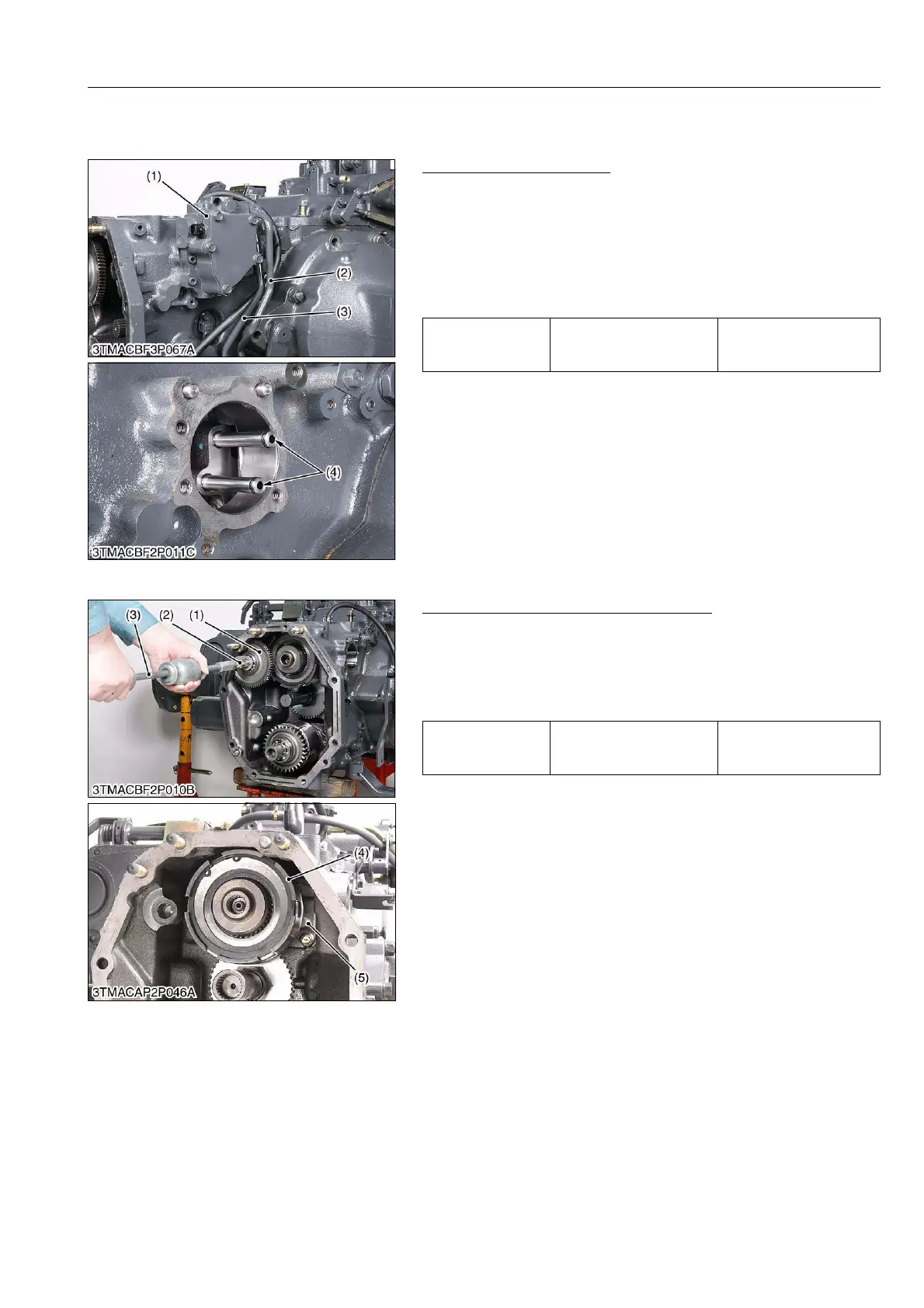

(1) Removing Solenoid Valve Assembly
Solenoid Valve Assembly
1. Remove the hydraulic pipe (2) and (3).
2. Remove the solenoid valve assembly (1).
3. Remove the hydraulic pipes (4).
(When reassembling)
• Apply transmission fluid to the O-rings.
• Apply liquid gasket (Three Bond 1206C or equivalent) to the
joint face.
9Y1210143TRS0069US0
(2) PTO Clutch Pack
Removing PTO Clutch Pack and Holder
1. Pull out the pin (2) with sliding hammer (3). (see page G-65.)
2. Take out the hydraulic pump drive gear (1).
3. Remove the PTO clutch holder mounting screws.
4. Remove the PTO clutch (4) with holder (5).
(When reassembling)
9Y1210143TRS0070US0
Tightening torque
Joint screw for hydraulic
pipe
29.4 to 34.3 N·m
3.0 to 3.5 kgf·m
21.7 to 25.3 lbf·ft
(1) Solenoid Valve Assembly
(2) Hydraulic Pipe (2WD)
(3) Hydraulic Pipe (4WD)
(4) Hydraulic Pipe
Tightening torque
PTO clutch holder
mounting screw
23.5 to 27.4 N·m
2.4 to 2.8 kgf·m
17.4 to 20.3 lbf·ft
(1) Gear
(2) Pin
(3) Sliding Hammer
(4) PTO Clutch
(5) Holder
