HYDRAULIC SYSTEM
M6040, M7040, WSM
8-M9

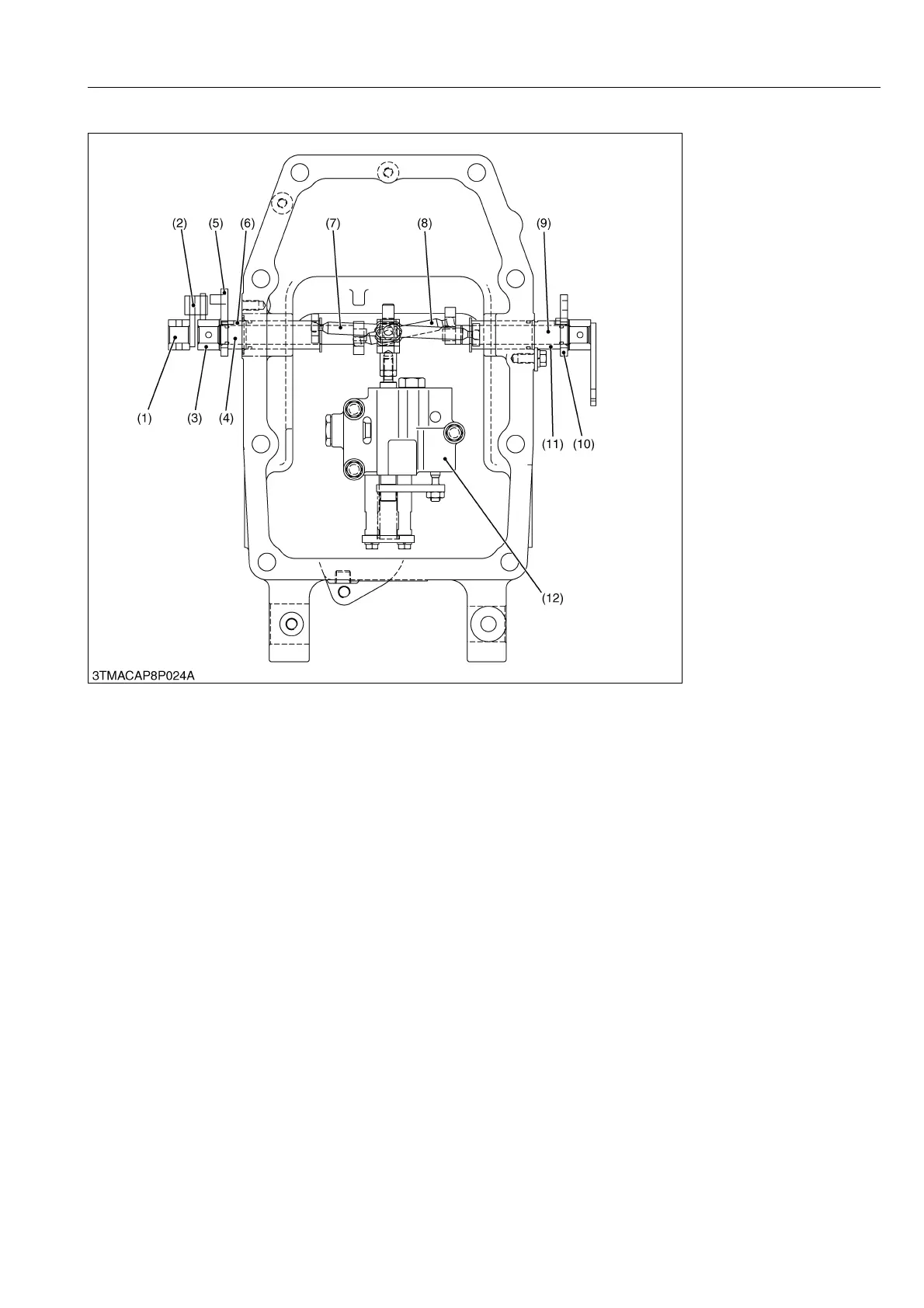

[4] LINKAGE MECHANISM
9Y1210143HYM0008US0
(1) Position Lever Shaft 1
(2) Position Link 1
(3) Position Link 2
(4) Position Lever Shaft 2
(5) Draft Link
(6) Draft Link Shaft
(7) Spool Drive Lever (Draft)
(8) Spool Drive Lever (Position)
(9) Position Feedback Shaft
(10) Draft Feedback Lever
(11) Draft Feedback Link
(12) Control Valve
KiSC issued 07, 2012 A
