wsm M7040 - 4 Power Train for Pto System; Pto Gear Section

TRANSMISSION
M6040, M7040, WSM
3-M16
4. POWER TRAIN FOR PTO SYSTEM
[1] PTO GEAR SECTION
Two different PTO speeds are available by operating the shift lever, to shift position of the shifter (9). Power is
transmitted as follows.
 Position A: 540 [540 min
-1
(rpm) at 2160 min
-1
(rpm) engine speed]
PTO Propeller Shaft 1 (1) → PTO Clutch (2) → PTO Propeller Shaft 2 (3) → 13T-13T Gear Shaft (5) → 52T Gear
(10) → Shifter (9) → Hub (8) → PTO Shaft (6).
 Position B: 540E [540 min
-1
(rpm) at 1828 min
-1
(rpm) engine speed]
PTO Propeller Shaft 1 (1) → PTO Clutch (2) → PTO Propeller Shaft 2 (3) → 13T-13T Gear Shaft (5) → 44T Gear
(7) → Shifter (9) → Hub (8) → PTO Shaft (6).
NOTE
• This PTO gear section does not have neutral position.
9Y1210143TRM0016US0

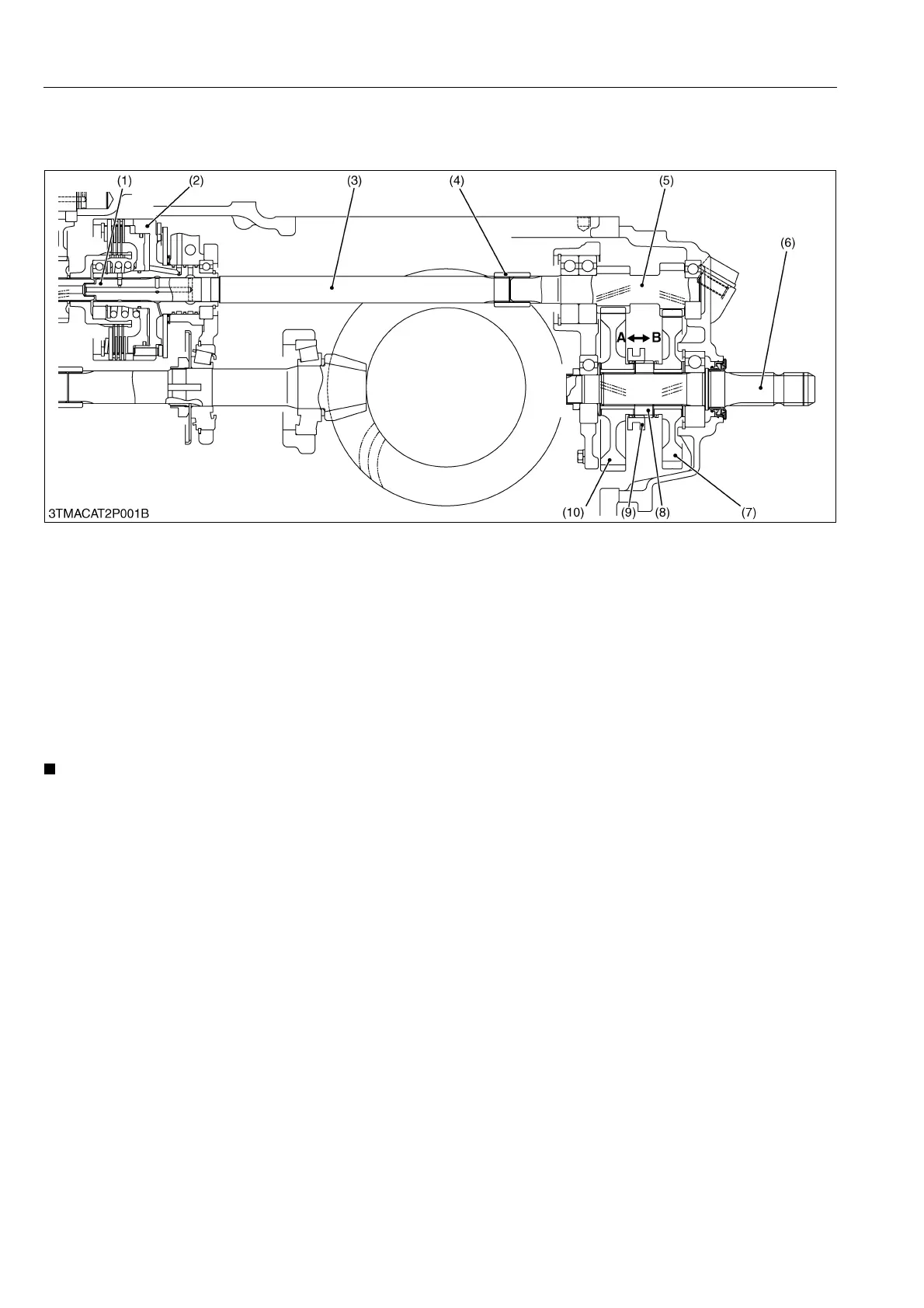

(1) PTO Propeller Shaft 1
(2) PTO Clutch
(3) PTO Propeller Shaft 2
(4) Coupling
(5) 13T-13T Gear Shaft
(6) PTO Shaft
(7) 44T Gear
(8) Hub
(9) Shifter
(10) 52T Gear
A: 540 PTO
B: 540E PTO
KiSC issued 07, 2012 A
