wsm M7040 - Preparation; 4 WD Propeller Shaft and Power Steering Hose; Lubricant and Coolant

ENGINE
M6040, M7040, WSM
1-S25
[2] PREPARATION
(1) Lubricant and Coolant
Draining Coolant and Engine Oil
1. See page G-10 and G-19.
9Y1210143ENS0027US0

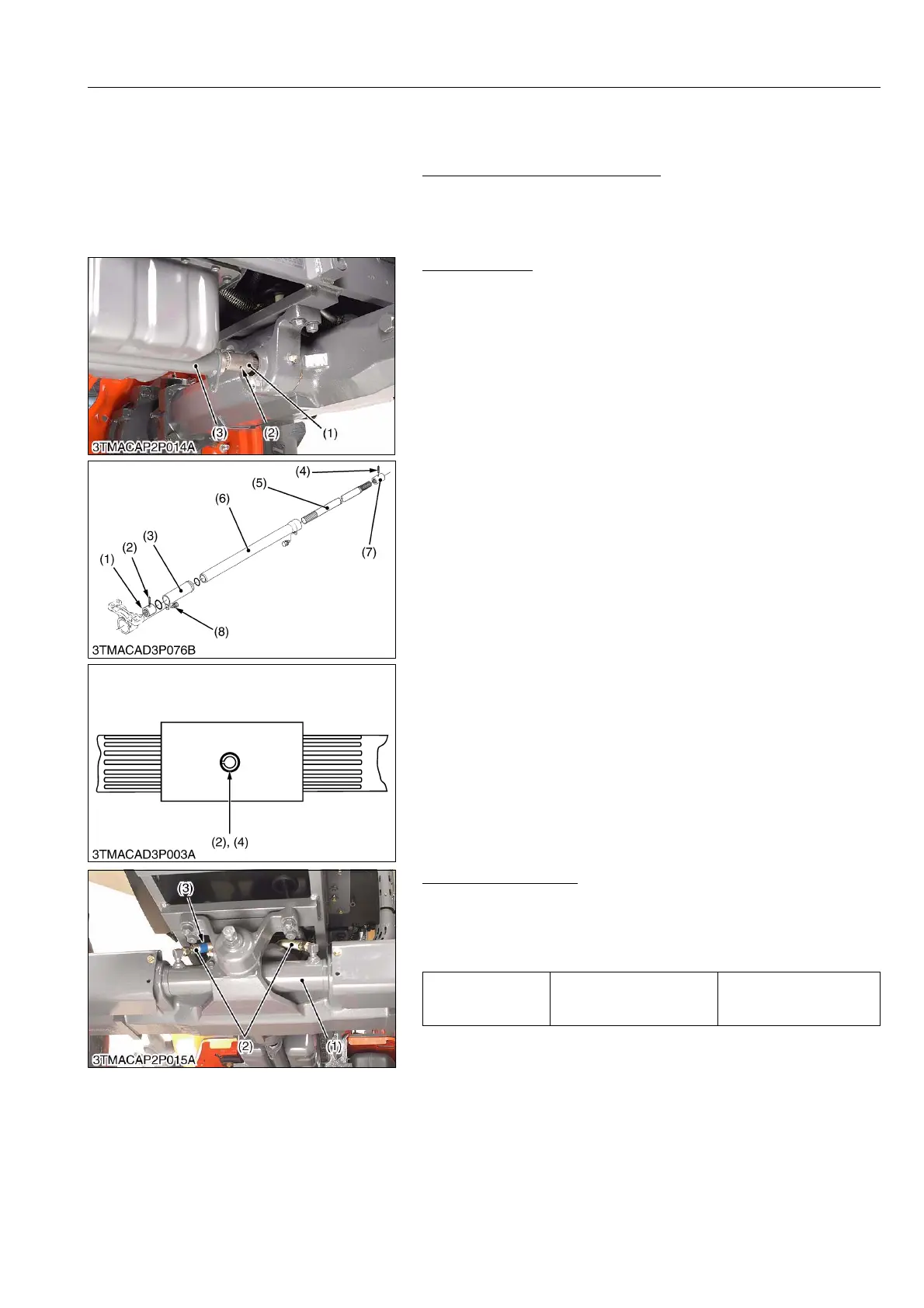

(2) 4WD Propeller Shaft and Power Steering Hose
Propeller Shaft
1. Slide the propeller shaft cover (3) after removing the screw (8).
2. Tap out the roll pins (2) and then slide the coupling (1) to the
rear.
(When reassembling)
• Apply grease to the splines of the propeller shaft (5) and pinion
shaft.
• Tap in the roll pins (2) as shown in figure.
9Y1210143ENS0028US0
Power Steering Hose
1. Disconnect both power steering hoses (2) from power steering
cylinder (1).
(When reassembling)
• Connect the power steering hose with ID tape (3) to the R.H..
9Y1210143ENS0029US0
(1) Coupling
(2) Roll Pin
(3) Propeller Shaft Cover
(4) Roll Pin
(5) Propeller Shaft
(6) Cover
(7) Coupling
(8) Screw
Tightening torque
Power steering hose
retaining nut
22.6 to 27.5 N·m
2.3 to 2.8 kgf·m
16.6 to 20.3 lbf·ft
(1) Power Steering Cylinder
(2) Power Steering Hose
(3) ID Tape
KiSC issued 07, 2012 A
