ELECTRICAL SYSTEM
M6040, M7040, WSM
9-S46
(3) Relays (CABIN Model)
Checking Connector Voltage
1. Measure the voltage with a voltmeter across the battery terminal
and chassis as table below.
2. If the voltage differs from the battery voltage, the wiring harness
or fuse is faulty.
• Be sure to use the 5 terminal type relay for the engine stop
relay (2).
• Other relays can use both 4 terminal type relay and 5
terminal relay.
• The color of the relay are black or green, both 4 terminal
type relay and 5 terminal type relay.
• The defogger rear and side are option.
9Y1210143ELS0074US0
(1)
Wiper relay (front) (main
switch at ACC position)
Terminal c –
Chassis
Approx. battery voltage
(2)
Engine stop relay (main
switch at ON position)
Terminal c –
Chassis
Approx. battery voltage
(3)
Work light relay (front)
(main switch at OFF
position)
Terminal e –
Chassis
Approx. battery voltage
(4)
Key stop relay (main
switch at OFF position)
Terminal e –
Chassis
Approx. battery voltage
(5)
A/C compressor relay
(main switch at OFF
position)
Terminal d –
Chassis
Approx. battery voltage
(6)
Blower relay (main
switch at OFF position)
Terminal d –
Chassis
Approx. battery voltage
(7)
PTO safety relay (main
switch at ON position
and PTO lever OFF
position)
Terminal c –
Chassis
Approx. battery voltage
(8)
Work light relay (ACC
relay) (main switch at
OFF position)
Terminal e –
Chassis
Approx. battery voltage
(9)
Blower high relay (main
switch at ACC position)
Terminal c –
Chassis
Approx. battery voltage

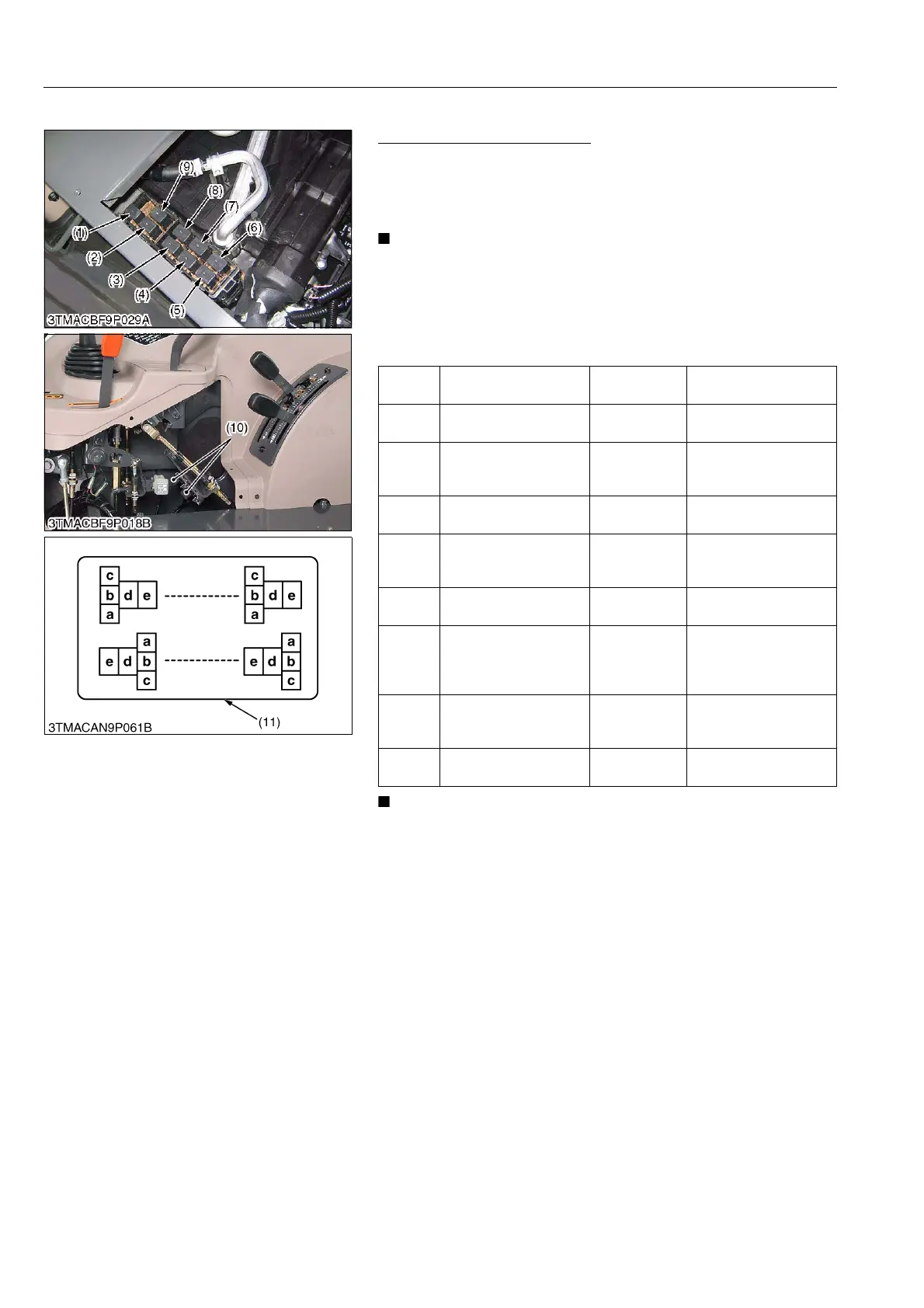

(1) Wiper Relay (Front)
(2) Engine Stop Relay
(Green: 5 Terminals Type)
(3) Work Light Relay (Front)
(4) Key Stop Relay
(5
)
A/C Compressor Relay
(6) Blower Relay
(7) PTO Safety Relay
(8) Work Light Relay (ACC Relay)
(9) lower High Relay
(10) Defogger Relay (Rear/Side) Option
(11) Connector Box
