Functional Check

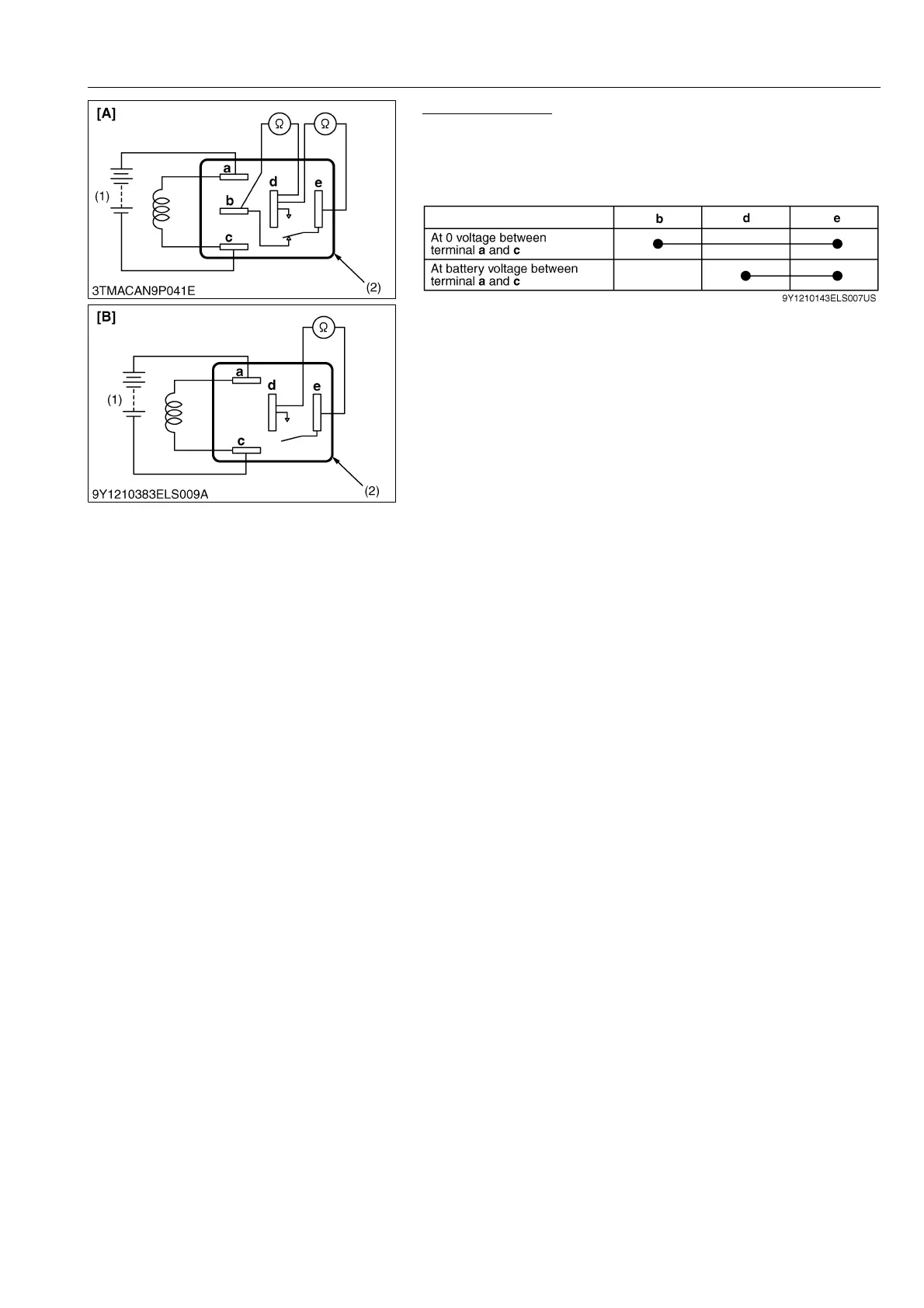

1. Apply battery voltage across the terminals a and c, and check
for continuity across the terminals d and e.
2. If continuity is not established across terminals d and e, replace
it.
9Y1210143ELS0073US0
(1) Battery
(2) Connector (Relay)
[A] 5 Terminal Type
[B] 4 Terminal Type
