ENGINE
M6040, M7040, WSM
1-S52

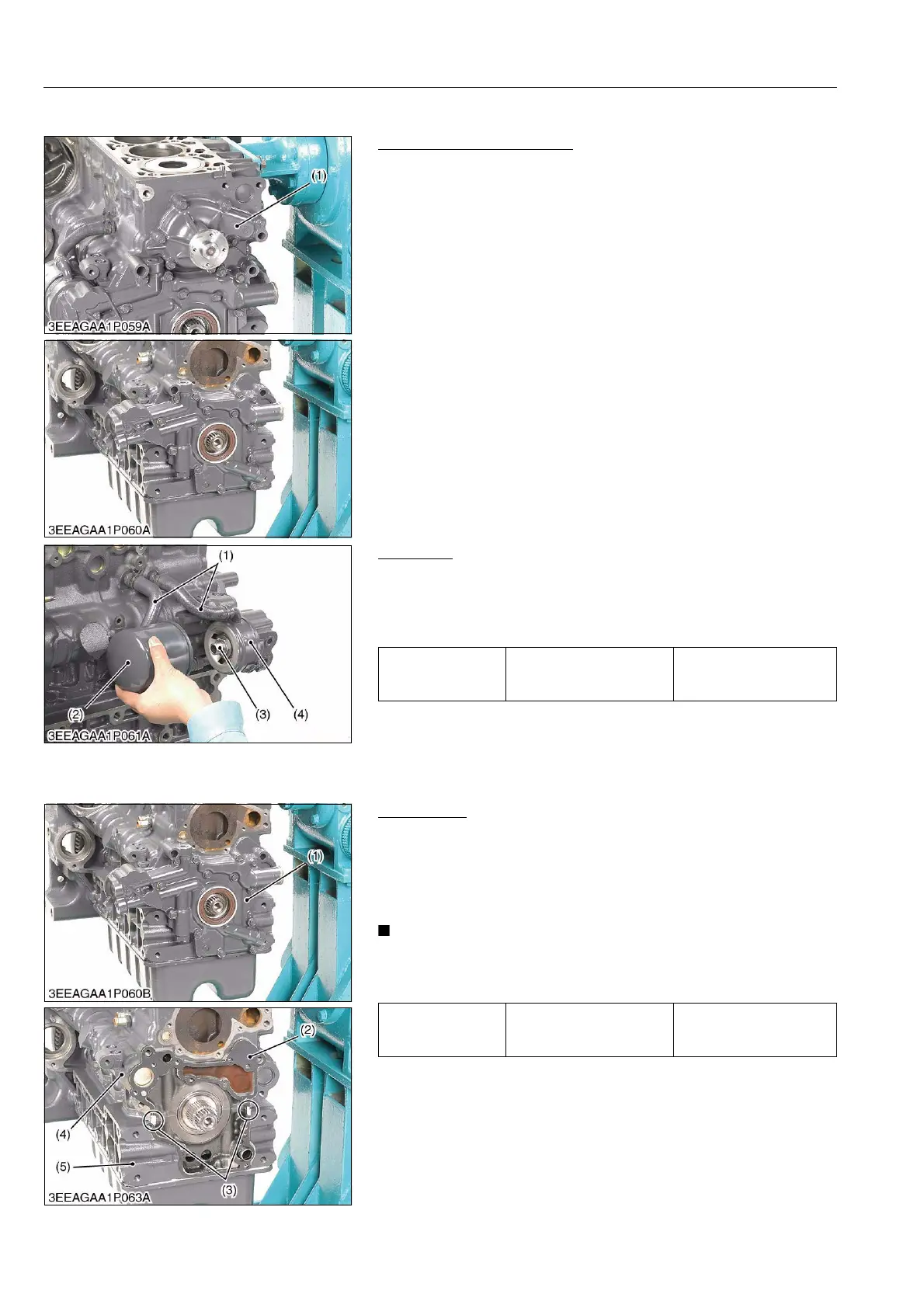

(6) Water Pump and Oil Cooler
Water Pump (if necessary)
1. Remove the water pump (1).
(When reassembling)
• When mounting the water pump, use the new water pump
gasket.
9Y1210143ENS0072US0
Oil Cooler
1. Remove the water pipe (1).
2. Remove the oil filter cartridge (2) and the oil cooler joint screw
(3).
3. Remove the oil cooler (4).
9Y1210143ENS0073US0
(7) Front Cover
Front Cover
1. Remove the front cover (1).
(When reassembling)
• Confirm that the front cover gasket (2) set in position.
• Confirm that the liquid gasket coating surface is free of water,
dust and oil in order to maintain sealing effect.
NOTE
• Assemble the adhesive-applied parts within ten minutes.
• Apply a liquid gasket (Three Bond 1217D) (3) to the seam
between crankcase 1 (4) and crankcase 2 (5).
9Y1210143ENS0074US0
(1) Water Pump
Tightening torque Oil cooler joint screw
40 to 44 N·m
4.0 to 4.5 kgf·m
29 to 32 lbf·ft
(1) Water Pipe
(2) Oil Filter Cartridge
(3) Oil Cooler Joint Screw
(4) Oil Cooler
Tightening torque
Front cover mounting
screw (10T)
30 to 34 N·m
3.0 to 3.5 kgf·m
22 to 25 lbf·ft
(1) Front Cover
(2) Front Cover Gasket
(3) Liquid Gasket
(4) Crankcase 1
(5) Crankcase 2
