ELECTRICAL SYSTEM
M6040, M7040, WSM
9-S39

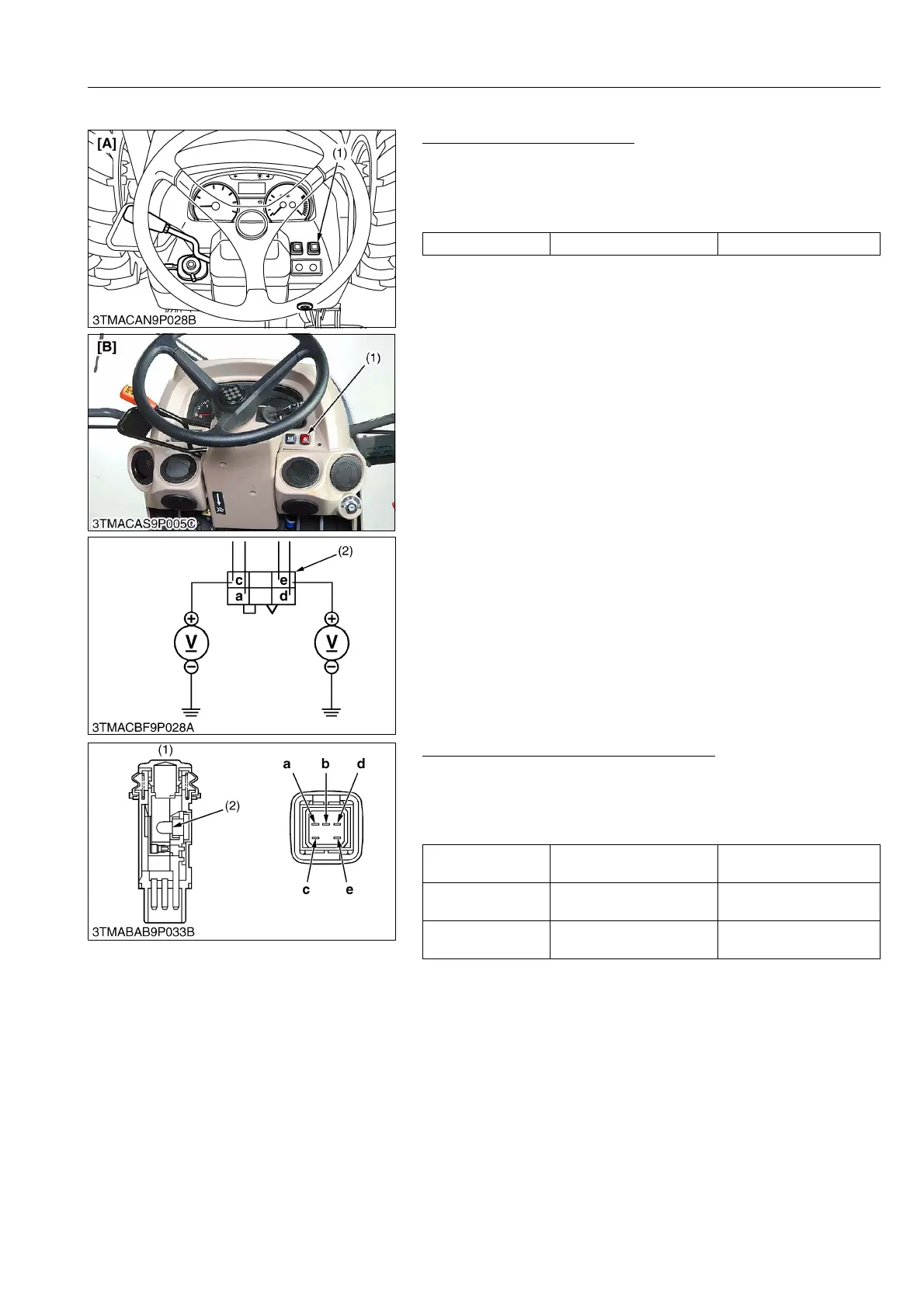

(3) Hazard Switch
Checking Connector Voltage
1. Connect the battery negative code, then measure the voltage
with a voltmeter across the each terminal c/e and chassis.
2. If the voltage differ from the battery voltage, the wiring harness
is faulty.
9Y1210143ELS0063US0
Checking Front Work Switch Continuity
1. Measure the resistance with ohmmeter across the terminal a
and terminal c, and across the terminal d and terminal e.
2. If the measurement is not following below, the hazard switch or
the bulb are faulty.
9Y1210143ELS0064US0
Voltage Terminal c/e – Chassis Approx. battery voltage
(1) Hazard Switch
(2) 6P Connector (Wire Harness Side)
[A] ROPS Model
[B] CABIN Model
Resistance
(Switch at OFF)
Terminal a – Terminal c Infinity
Resistance
(Switch at ON)
Terminal a – Terminal c 0 Ω
Resistance
(Bulb)
Terminal d – Terminal e Approx. 13 Ω
(1) Hazard Switch (2) Bulb
