ELECTRICAL SYSTEM
M6040, M7040, WSM
9-S38

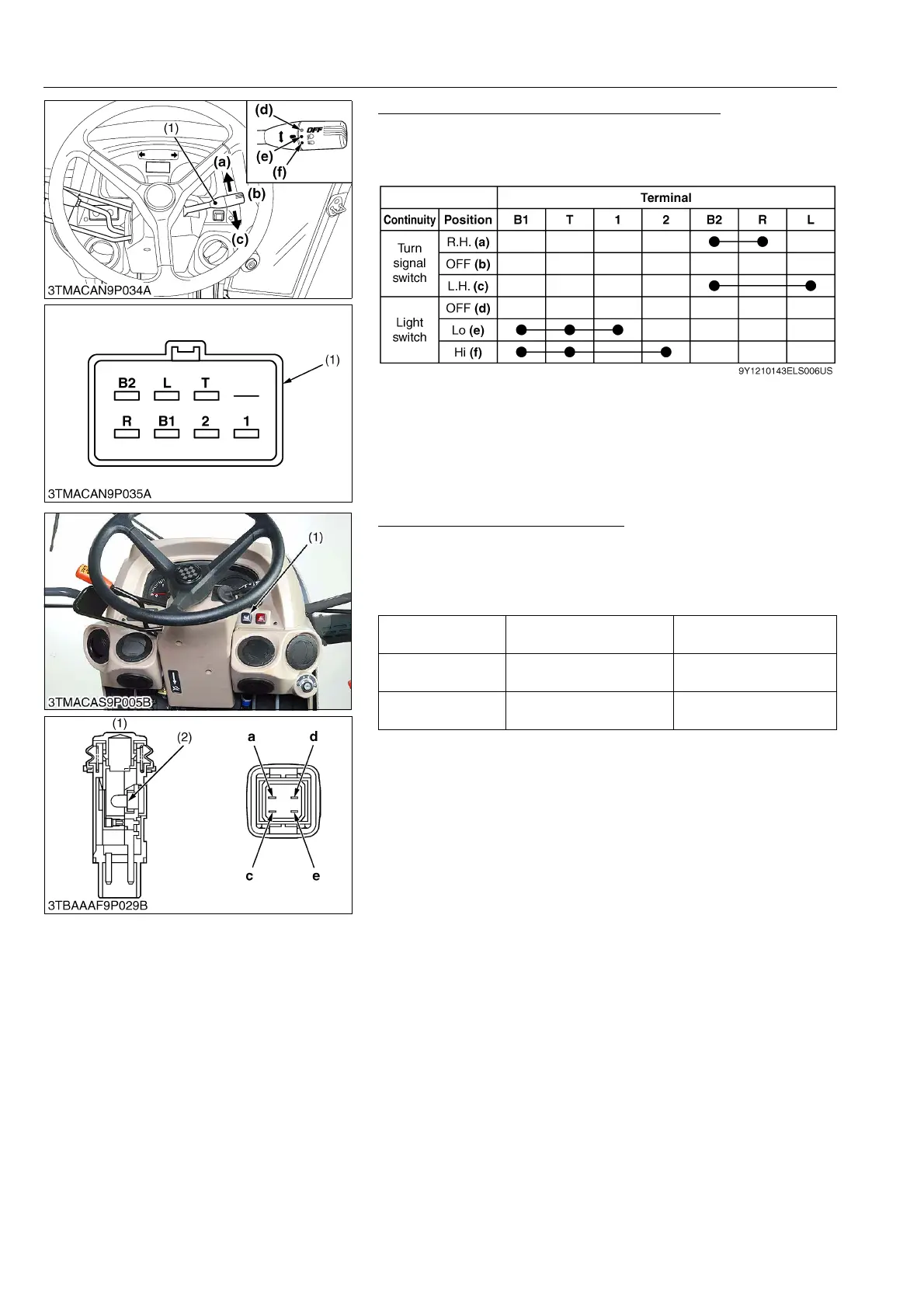

Checking Light Switch and Turn Signal Switch
1. Test the continuity through the switch with an ohmmeter.
2. If the continuity specified below is not indicated, the switch is
faulty.
9Y1210143ELS0061US0
Checking Horn Switch Continuity
1. Measure the resistance with ohmmeter across the terminal a
and terminal c, and across the terminal d and terminal e.
2. If the measurement is not following below, the horn switch or the
bulb are faulty.
9Y1210143ELS0062US0
(1) Lever Combination Switch
Connector (Switch Side)
(a) Right Turn
(b) OFF
(c) Left Turn
(d) OFF
(e) Head Light (Lo)
(f) Head Light (Hi)
Resistance
(Switch at OFF)
Terminal a – Terminal c Infinity
Resistance
(Switch at ON)
Terminal a – Terminal c 0 Ω
Resistance
(Bulb)
Terminal d – Terminal e Approx. 13 Ω
(1) Horn Switch (2) Bulb
