(3) Removing Air Conditioner Unit
Draining Coolant
1. See page 10-S33.
9Y1210143CAS0073US0
Discharging Refrigerant Gas
1. See page 10-S17.
9Y1210143CAS0074US0
Seat, Floor Mats and Floor Cover
1. Disconnect the battery negative cable from battery.
2. Remove the seat (1).
3. Remove the floor mat 1 (2) and mat 2 (3).
4. Remove the floor cover (4).
9Y1210143CAS0075US0

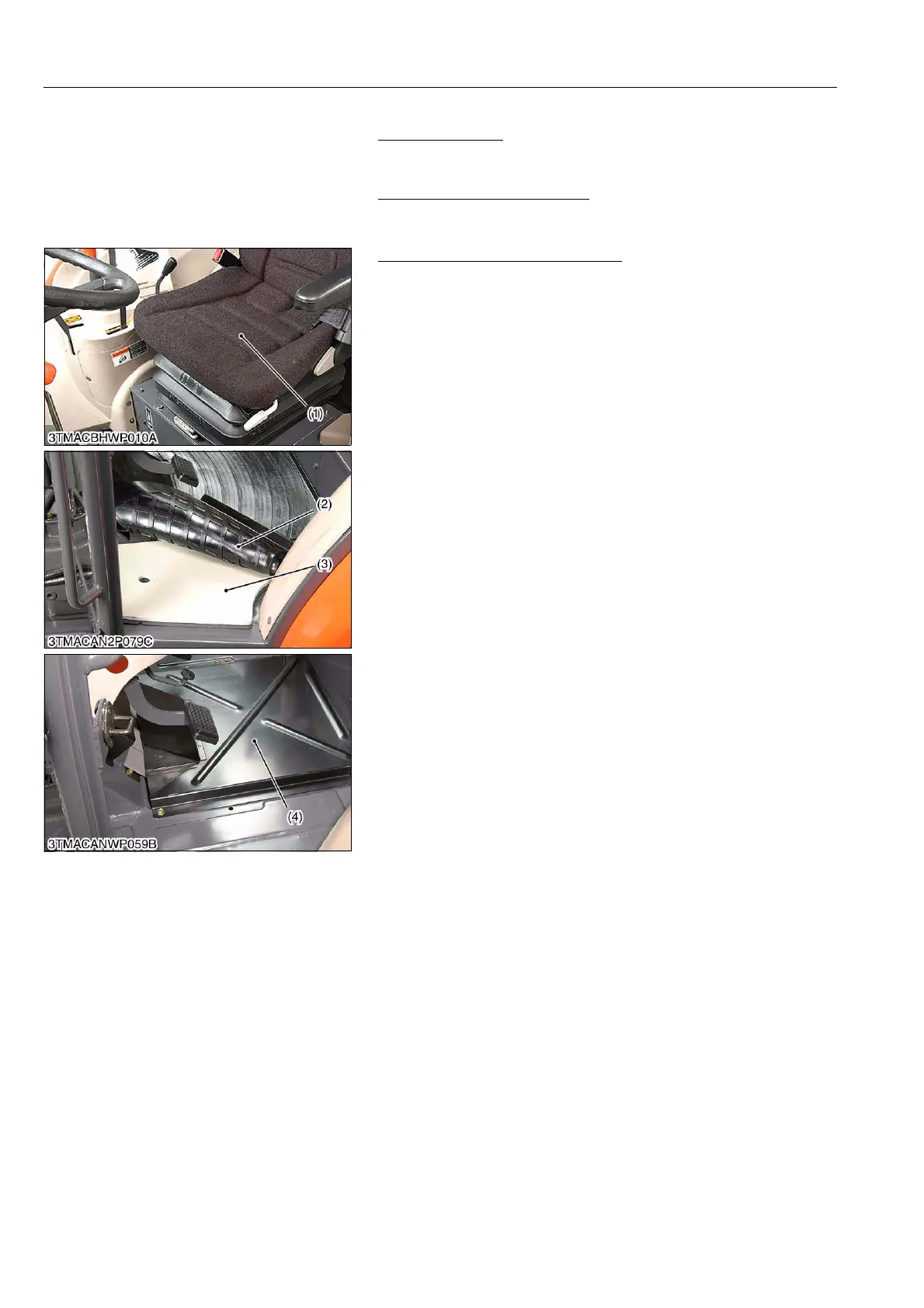

(1) Seat
(2) Floor Mat 1
(3) Floor Mat 2
(4) Floor Cover
