wsm M7040 - Separating Engine (Cabin Model); Separating Front Axle and Front Frame as a Unit

ENGINE
M6040, M7040, WSM
1-S30
[4] SEPARATING ENGINE (CABIN MODEL)
(1) Separating Front Axle and Front Frame as a Unit
Preparation 1

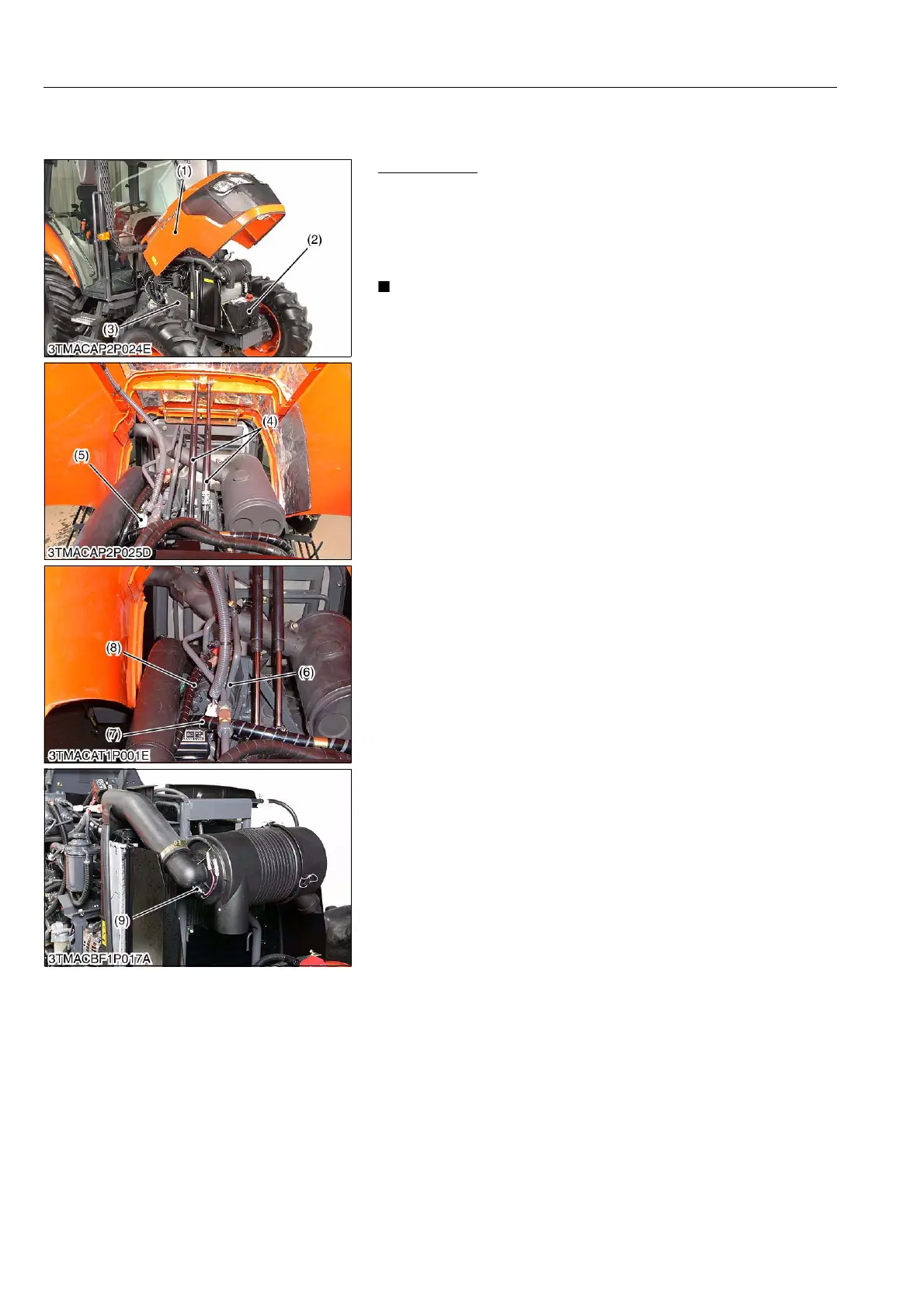

1. Open the bonnet (1) and disconnect the battery (2) negative
terminal and 6P connector (5) for head light.
2. Remove the bonnet dampers (4) and bonnet (1).
3. Remove the both side covers (3).
4. Disconnect the 1P connectors from the air cleaner switch (9).
IMPORTANT
• When disconnecting the battery cables, disconnect the
grounding cable first. When connecting, positive cable
first.
(When reassembling)
• Connect the 6P connector (5) for head light within the space of
controller pipe (6), heater hose (7) and delivery hose (8) as
shown photo.
9Y1210143ENS0042US0
(1) Bonnet
(2) Battery
(3) Side Cover
(4) Damper
(5) 6P Connector (Head Light)
(6) Controller Pipe
(7) Heater Hose
(8) Delivery Hose
(9) Air Cleaner Switch
KiSC issued 07, 2012 A
