Preparation 2

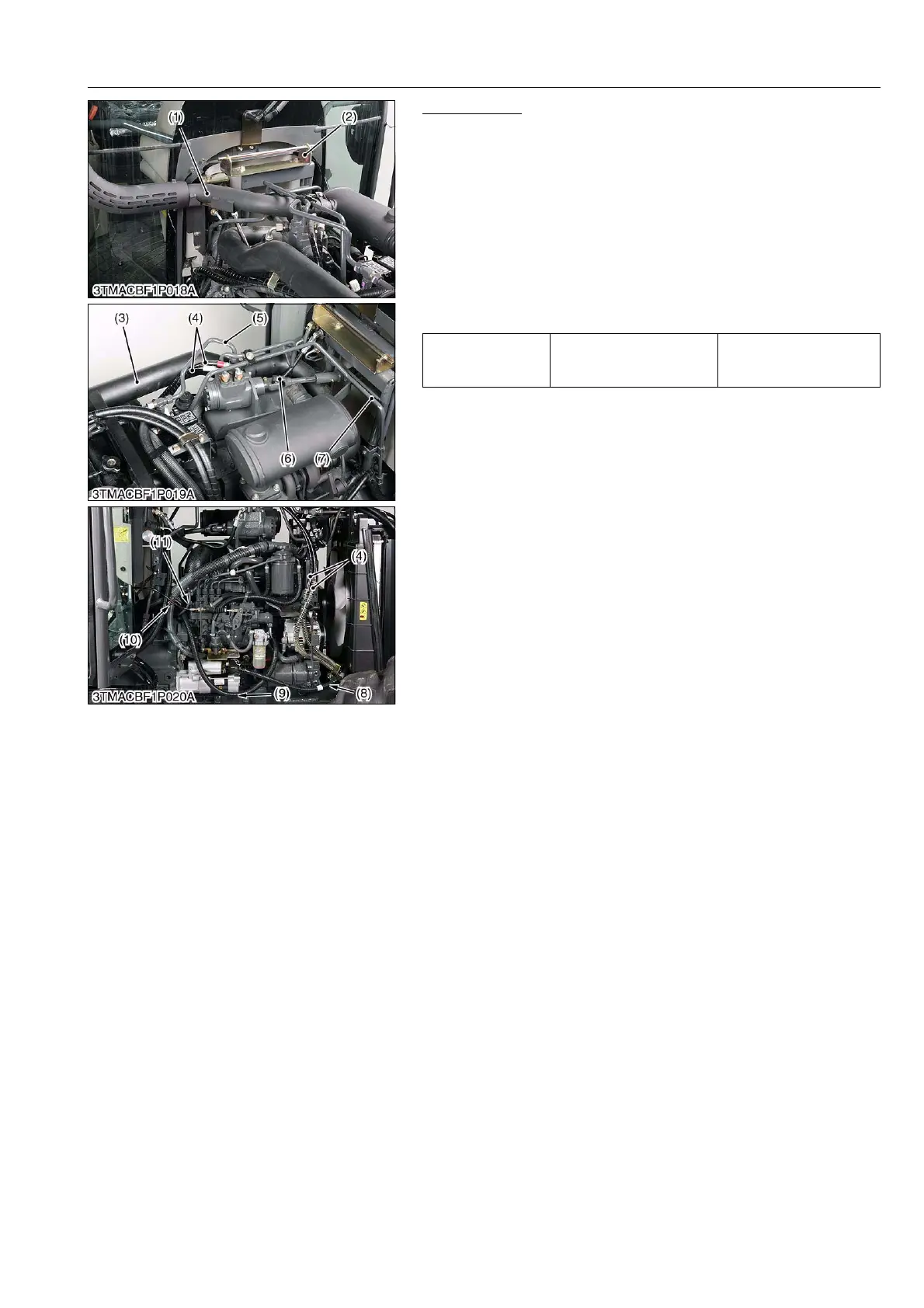

1. Remove the muffler pipe (1) and bonnet support (2).
2. Remove the air cleaner hose (3) from the turbocharger.
3. Remove the power steering hoses (4).
4. Remove the U-joint (6).
5. Remove the oil cooler pipe (5) and (7).
6. Remove the fuel hose (9) and (11).
7. Remove the accelerator wire (10).
8. Remove the battery cable (8) from the starter B terminal.
(When reassembling)
• Be sure to assemble the power steering hose to the original
position.
9Y1210143ENS0043US0
Tightening torque Oil cooler pipe retaining nut
49.0 to 68.6 N·m
5.0 to 7.0 kgf·m
36.2 to 50.6 lbf·ft
(1) Muffler Pipe
(2) Bonnet Support
(3) Air Cleaner Hose
(4) Power Steering Hose
(5) Oil Cooler Pipe
(6) U-Joint
(7) Oil Cooler Pipe
(8) Battery Cable
(9) Fuel Hose
(10) Accelerator wire
(11) Fuel Hose
