ENGINE
M6040, M7040, WSM
1-S32

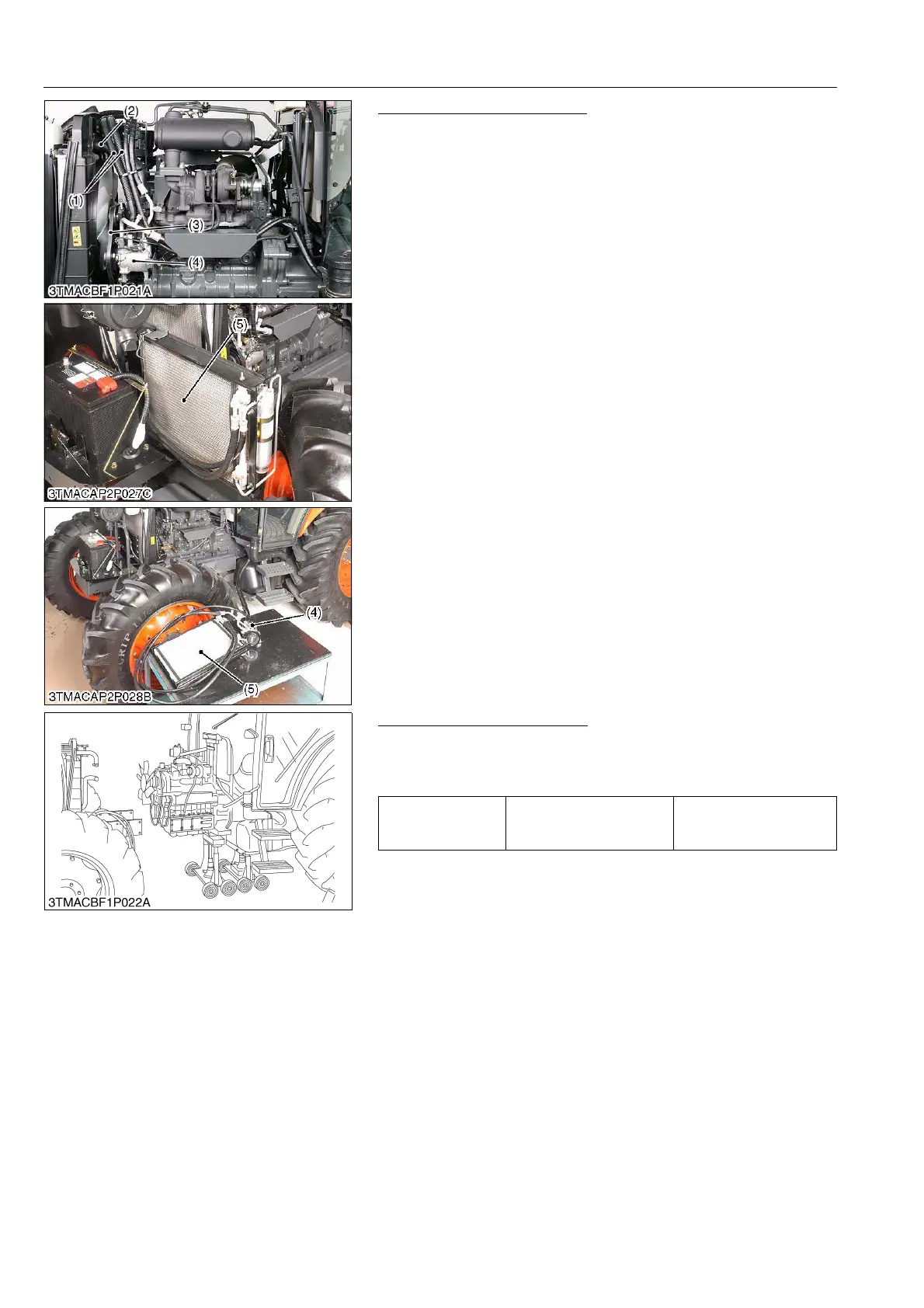

Condenser and Compressor
1. Remove the air conditioner belt (3).
2. Remove the compressor (4) and condenser (5) without
removing the air conditioner hoses.
3. Disconnect the heater hoses (1).
4. Remove the radiator hoses (2) from the engine.
(When reassembling)
• Be sure to assemble the heater hose to the original position.
• Take care not to damage the air condenser fin.
• After reassembling the compressor, be sure to adjust the air
condenser belt tension. (See page G-25.)
9Y1210143ENS0044US0
Front Axle Support as a Unit
1. Make sure the clutch housing case and front frame are securely
mounted on the disassembling stands.
(When reassembling)
9Y1210143ENS0045US0
(1) Heater Hose
(2) Radiator Hose
(3) Belt
(4) Compressor
(5) Condenser
Tightening torque
Front frame mounting
screw (M14, 9T, UBS)
166.7 to 196.1 N·m
17.0 to 20.0 kgf·m
123.0 to 144.7 lbf·ft
KiSC issued 07, 2012 A
