wsm M7040 - Gear Shifting Linkage; Main Gear Shift

TRANSMISSION
M6040, M7040, WSM
3-S9
[2] GEAR SHIFTING LINKAGE
(1) Main Gear Shift
Checking Function of Main Gear Shift (ROPS Model)
1. Check the function of the main gear shift.
• Neutral position to 1st gear position.
• Neutral position to 2nd gear position.
• Neutral position to 3rd gear position.
• Neutral position to 4th gear position.

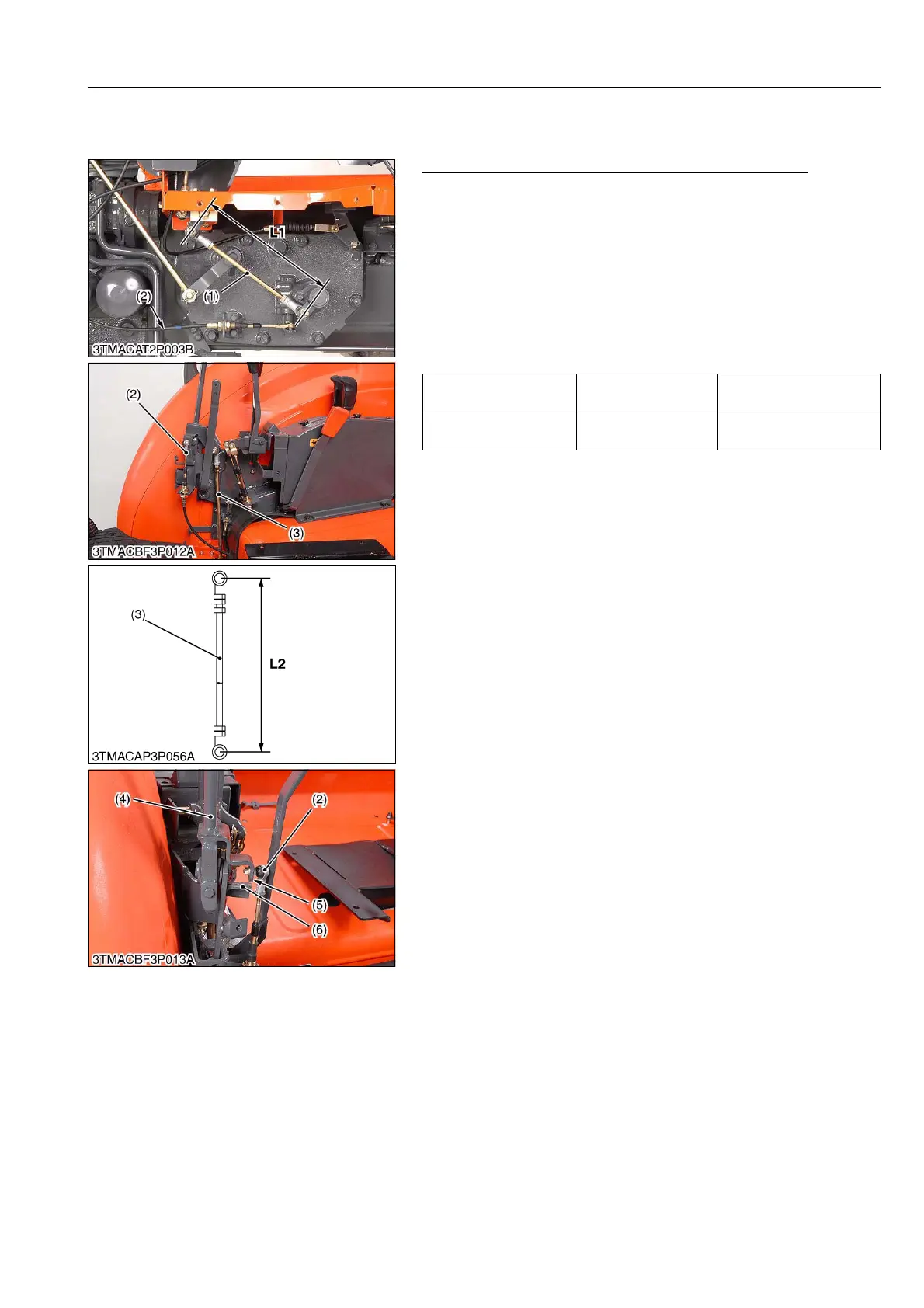

2. If shifting is not smooth, check the length of main shift rod 1 (1)
and main shift rod 2 (3). Adjust the select cable (2) so that the
lever end (5) has contact with stopper (6) when main gear shift
lever operates to 1st-2nd direction and the main gear shift lever
is positioned in vertically at "neutral" position.
9Y1210143TRS0006US0
Length of main shift rod 1
"L1"
Initial adjustment
262 mm
10.32 in.
Length of main shift rod 2
"L2"
Factory specification
359 mm
14.13 in.
(1) Main Shift Rod 1
(2) Select Cable
(3) Main Shift Rod 2
(4) Main Gear Shift Lever
(5) Lever End
(6) Stopper
L1: Main Shift Rod 1 Length
L2: Main Shift Rod 2 Length
KiSC issued 07, 2012 A
