STEERING
M6040, M7040, WSM
7-S5

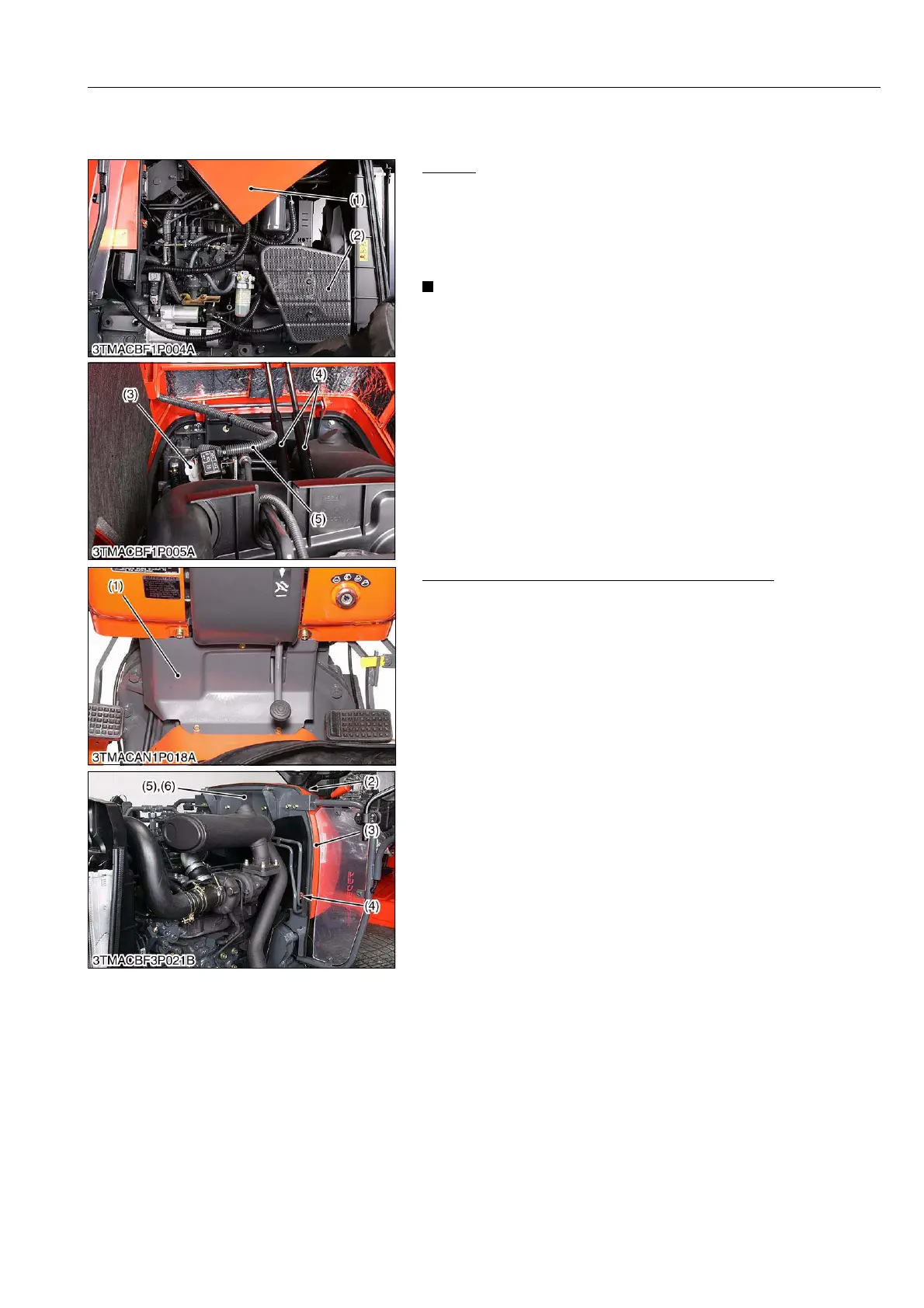

[2] REMOVING POWER STEERING CONTROLLER
(1) ROPS Model
Bonnet
1. Open the bonnet (1) and disconnect the battery negative
terminal.
2. Disconnect the connector (3) for head lights.
3. Disconnect the damper (4).
4. Remove the bonnet (1) and side cover (2) for both side.
• When disconnecting the battery cables, disconnect the
grounding cable first. When connecting, positive cable
first.
9Y1210143ENS0031US0
Steering Support Under Cover and Rear Bonnet
1. Remove the steering support under cover (1).
2. Loosen the rear bonnet mounting screws (4).
3. Remove the seal (6) and panel guide mounting screw (5).
4. Disconnect the wire harness and remove the panel guide (2)
and rear bonnet (3).
9Y1210143STS0007US0
(1) Bonnet
(2) Side Cover
(3) Connector
(4) Damper
(5) Wire Harness (Head Light)
(1) Steering Support Under Cover
(2) Panel Guide
(3) Rear Bonnet
(4) Screw
(5) Screw
(6) Seal
To Next Page
