TRANSMISSION
M6040, M7040, WSM
3-S22
(2) CABIN Model
Condenser and Compressor

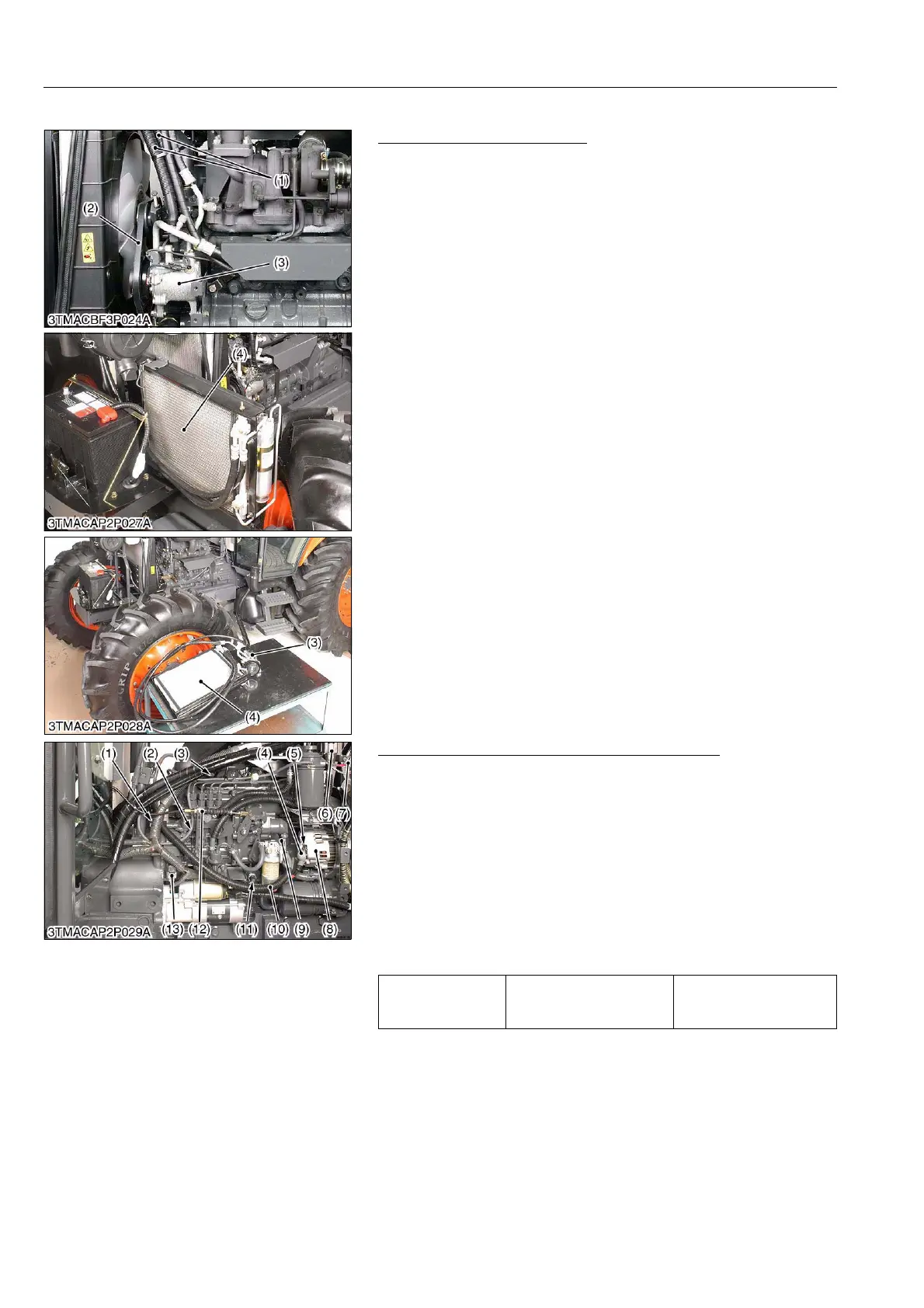

1. Remove the air conditioner belt (2).
2. Remove the compressor (3) and condenser (4) without
removing the air conditioner hoses.
3. Disconnect the heater hoses (1).
(When reassembling)
• Be sure to assemble the heater hoses to the original position.
• Take care not to damage the air condenser fin.
• After reassembling the compressor, be sure to adjust the air
condenser belt tension. (See page G-25.)
9Y1210143TRS0034US0
Accelerator Wire, Fuel Hose and Wire Harness
1. Disconnect the accelerator wire (12) and fuel hose (2).
2. Disconnect the wire harness from water temperature sensor (1),
engine speed sensor (13) and glow plug (3).
3. Disconnect the fuel hose (10) from fuel filter.
4. Disconnect the 2P connector (5) from alternator (8) and wire
harness from alternator B terminal (4).
5. Disconnect the wire harness from the engine oil pressure switch
(11).
6. Disconnect the 3P connector (9) from engine stop solenoid.
7. Remove the heater relays (7) and slow blow fuse (6).
(When reassembling)
9Y1210143TRS0035US0
(1) Heater Hose
(2) Belt
(3) Compressor
(4) Condenser
Tightening torque
Starter's B terminal
mounting nut
9.8 to 11.8 N·m
1.0 to 1.2 kgf·m
7.2 to 8.7 lbf·ft
(1) Water Temperature Sensor
(2) Fuel Hose
(3) Glow Plug
(4) Alternator B Terminal
(5) 2P Connector
(6) Slow Blow Fuse
(7) Heater Relay
(8) Alternator
(9) 3P Connector
(10) Fuel Hose
(11) Engine Oil Pressure Switch
(12) Accelerator Wire
(13) Engine Speed Sensor
