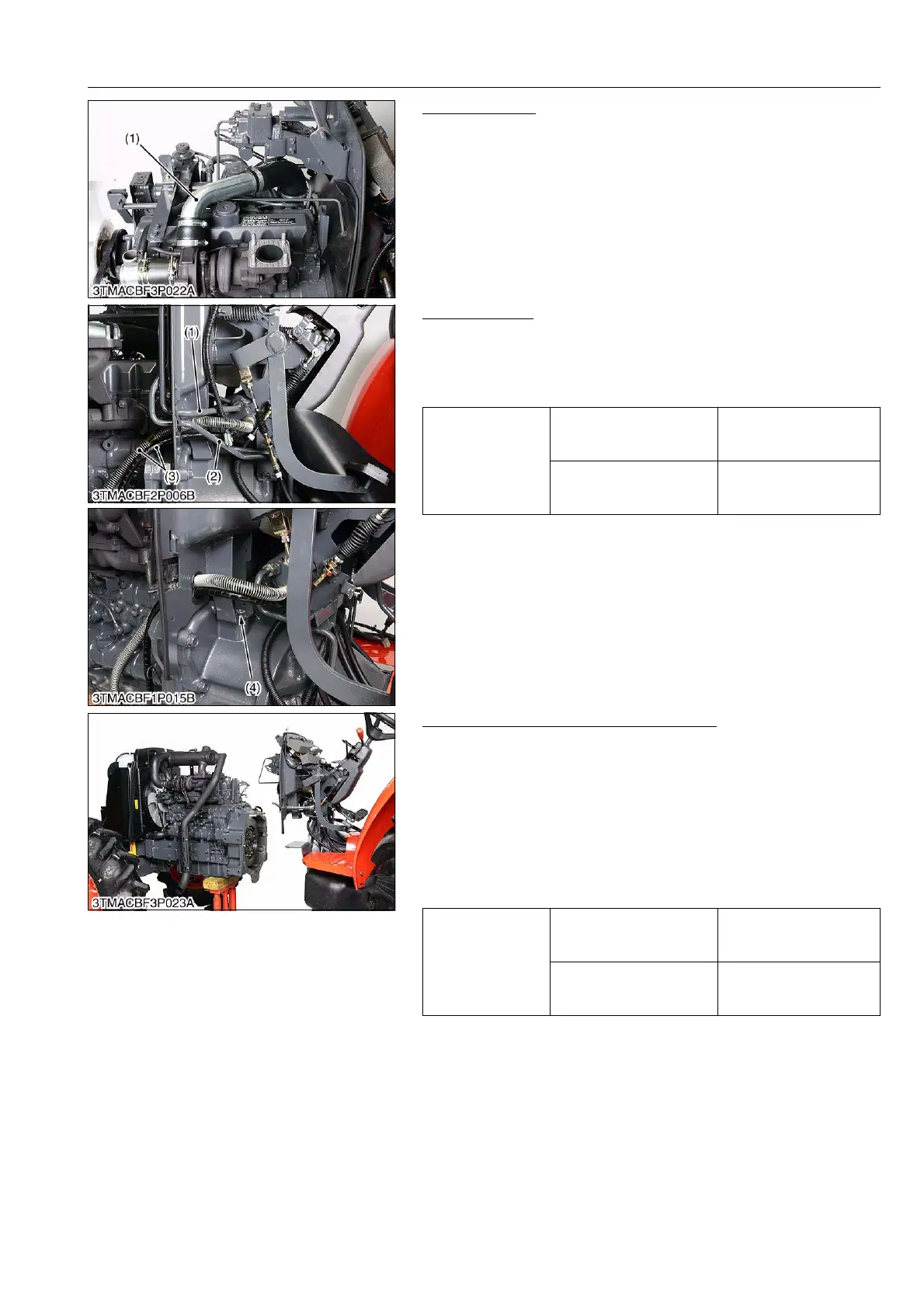

TRANSMISSION
M6040, M7040, WSM
3-S21
Air Intake Hose
1. Remove the air intake hose (1).
9Y1210143TRS0031US0
Oil Cooler Pipe
1. Remove the oil cooler pipes (1) and (2).
2. Disconnect the power steering hoses (3).
3. Remove the steering support mounting screw (4) for front side.
(When reassembling)
9Y1210143TRS0032US0
Separating Engine from Clutch Housing
1. Make sure the engine and clutch housing case are securely
mounted on the disassembling stands.
2. Remove the engine mounting screws and nut, and separate the
engine from the clutch housing.
(When reassembling)
• Apply molybdenum disulphide (Three Bond 1901 or equivalent)
to the splines of damper disc boss.
• Apply liquid gasket (Three Bond 1141, 1211 or equivalent) to
joint face of the engine and clutch housing.
9Y1210143TRS0033US0
(1) Air Intake Hose
Tightening torque
Oil cooler pipe retaining nut
49.0 to 68.6 N·m
5.0 to 7.0 kgf·m
36.2 to 50.6 lbf·ft
Power steering hose
retaining nut
22.6 to 27.5 N·m
2.3 to 2.8 kgf·m
16.6 to 20.3 lbf·ft
(1) Oil Cooler Pipe
(2) Oil Cooler Pipe
(3) Power Steering Hose
(4) Steering Support Mounting Screw
Tightening torque
Engine and clutch housing
mounting screw and nut
(M14, 7T)
124 to 147 N·m
12.6 to 15.0 kgf·m
91.2 to 108 lbf·ft
Engine and clutch housing
mounting stud bolt
61.8 to 73.6 N·m
6.3 to 7.5 kgf·m
45.6 to 54.2 lbf·ft
(1) Front Axle Rocking Restrictor
