ENGINE
M6040, M7040, WSM
1-S22

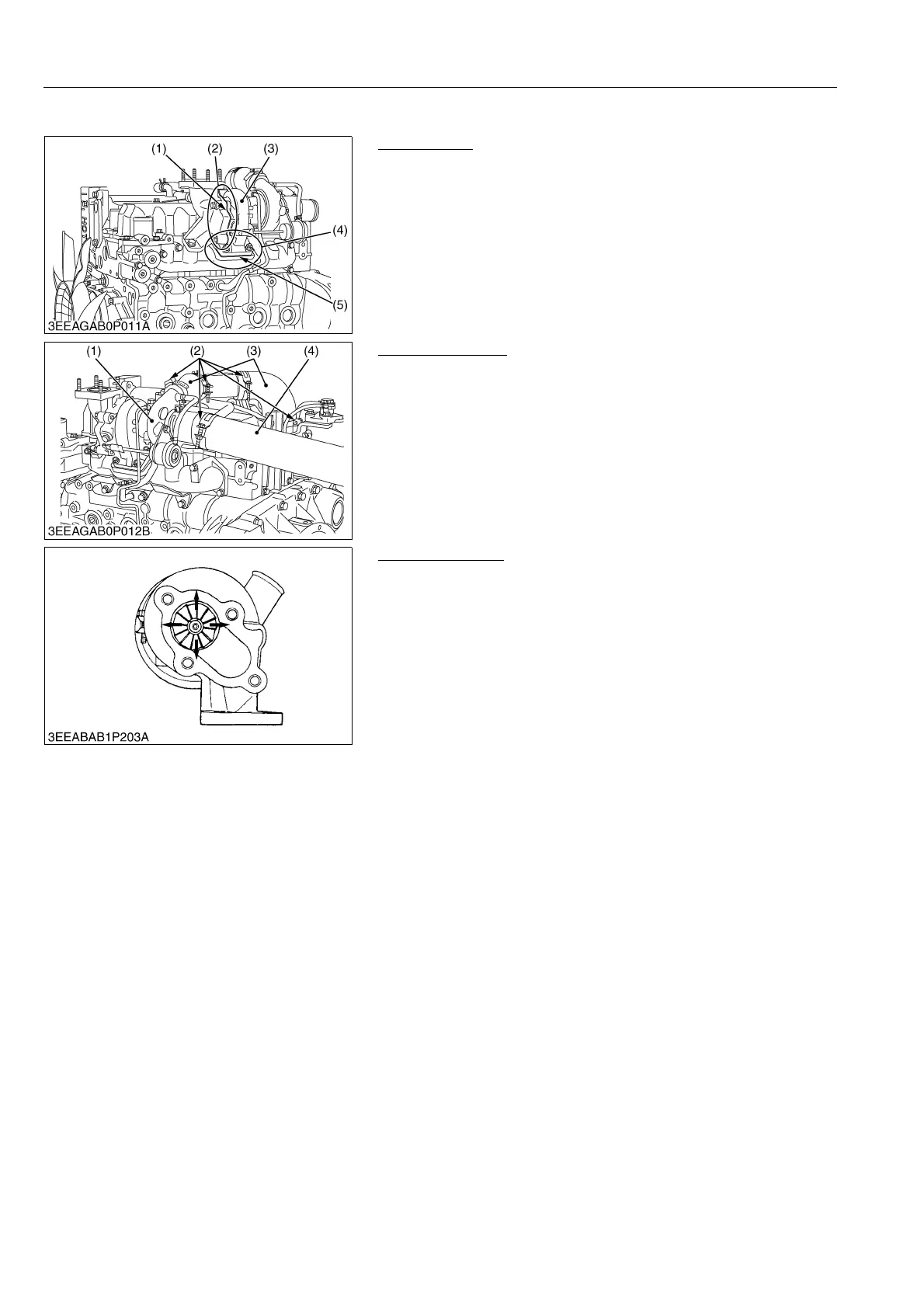

(5) Turbocharger
Turbine Side
1. Check the exhaust port (2) and inlet port (4) side of turbine
housing (3) to see if there is no exhaust gas leak.
2. If any gas leak is found, retighten the bolts and nuts or replace
the gasket (1) / (5) with new one.
9Y1210143ENS0021US0
Compressor Side
1. Check the inlet hose (4) of the compressor cover (1) to see if
there is no air leak.
2. Check for loose connections or cracks in the suction side of the
intake hose (3).
3. If any air leak is found, change the clamp (2) and or inlet / intake
hoses (3) / (4).
9Y1210143ENS0022US0
Radial Clearance
1. If the wheel contact to the housing, replace the turbocharger
assembly with new one.
9Y1210143ENS0023US0
(1) Gasket
(2) Exhaust Port
(3) Turbine Housing
(4) Inlet Port
(5) Gasket
(1) Compressor Cover
(2) Clamp
(3) Intake Hose
(4) Inlet Hose
