wsm M7040 - Position and Draft Control Linkage; Control Rod

HYDRAULIC SYSTEM
M6040, M7040, WSM
8-S9

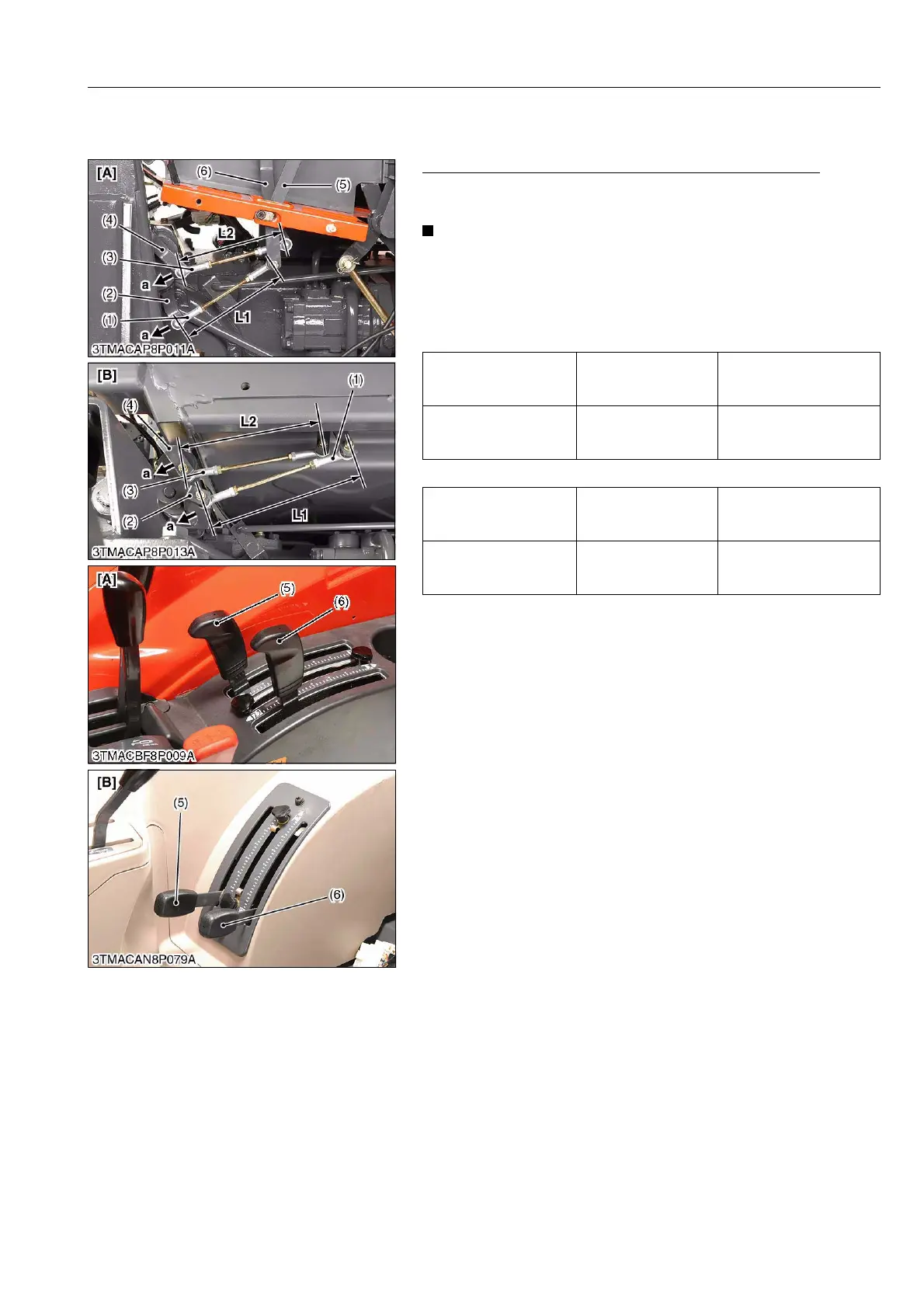

[3] POSITION AND DRAFT CONTROL LINKAGE
(1) Control Rod
Adjusting Position Control Rod and Draft Control Rod
1. Be sure to adjust the position control rod (1) length "L1" and
draft control rod (3) length "L2".
IMPORTANT
• Each draft control lever and position control lever should
contact with lever guide lowest position when operate the
position lever 1 (2) and draft lever 1 (4) to end of direction
"a". If not, adjust the position control rod (1) length "L1"
and/or draft control rod (3) length "L2".
[ROPS Model]
[CABIN Model]
9Y1210143HYS0007US0
Position control rod
length "L1"
Factory specification
Approx.
159 mm
6.26 in.
Draft control rod length
"L2"
Factory specification
Approx.
146 mm
5.75 in.
Position control rod
length "L1"
Factory specification
Approx.
185 mm
7.28 in.
Draft control rod length
"L2"
Factory specification
Approx.
182 mm
7.17 in.
(1) Position Control Rod
(2) Position Lever 1
(3) Draft Control Rod
(4) Draft Lever 1
(5) Position Control Lever
(6) Draft Control Lever
[A] ROPS Model
[B] CABIN Model
L1: Length of Position Control Rod
L2: Length of Draft Control Rod
a: Direction for Lower
KiSC issued 07, 2012 A
