TRANSMISSION
M6040, M7040, WSM
3-S42

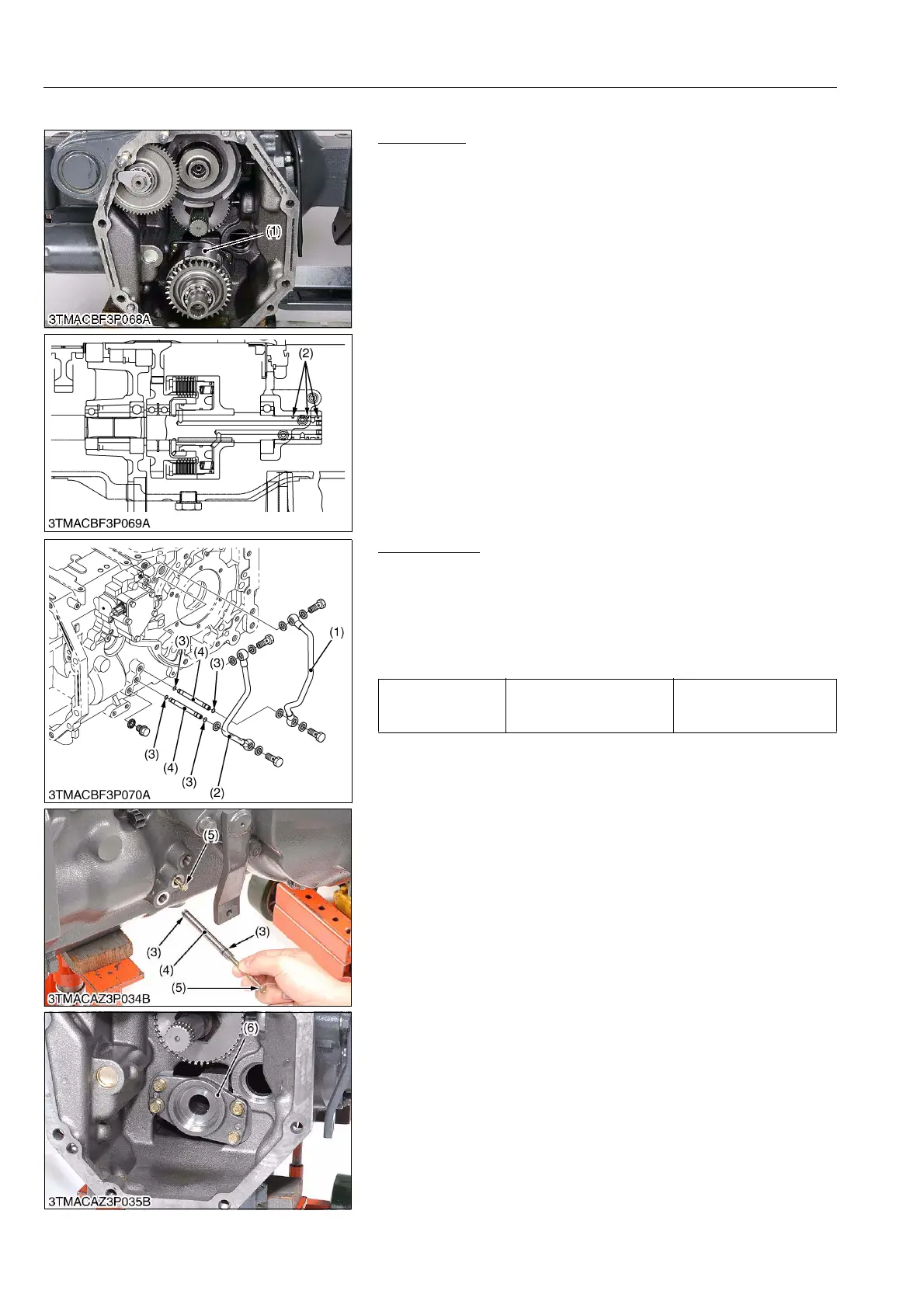

(3) Removing 4WD Clutch
4WD Clutch
1. Remove the 4WD clutch (1).
(When reassembling)
• Replace the seal rings (2) with new one.
• Apply grease to the seal rings (2) when assembling.
9Y1210143TRS0071US0
Clutch Holder
1. Remove the hydraulic pipes (1) and (2).
2. Pull out the pipes (4) using the M6 × P1.0 screw (6) as shown
photo.
3. Remove the clutch holder (6).
(When reassembling)
• Apply oil to the O-rings (3).
9Y1210143TRS0072US0
(1) 4WD Clutch (2) Seal Ring
Tightening torque
Joint screw for hydraulic
pipe
29.4 to 34.3 N·m
3.0 to 3.5 kgf·m
21.7 to 25.3 lbf·ft
(1) Hydraulic Pipe (2WD)
(2) Hydraulic Pipe (4WD)
(3) O-ring
(4) Pipe
(5) M6 × P1.0 Screw
(6) Clutch Holder
