ELECTRICAL SYSTEM
M6040, M7040, WSM
9-S11

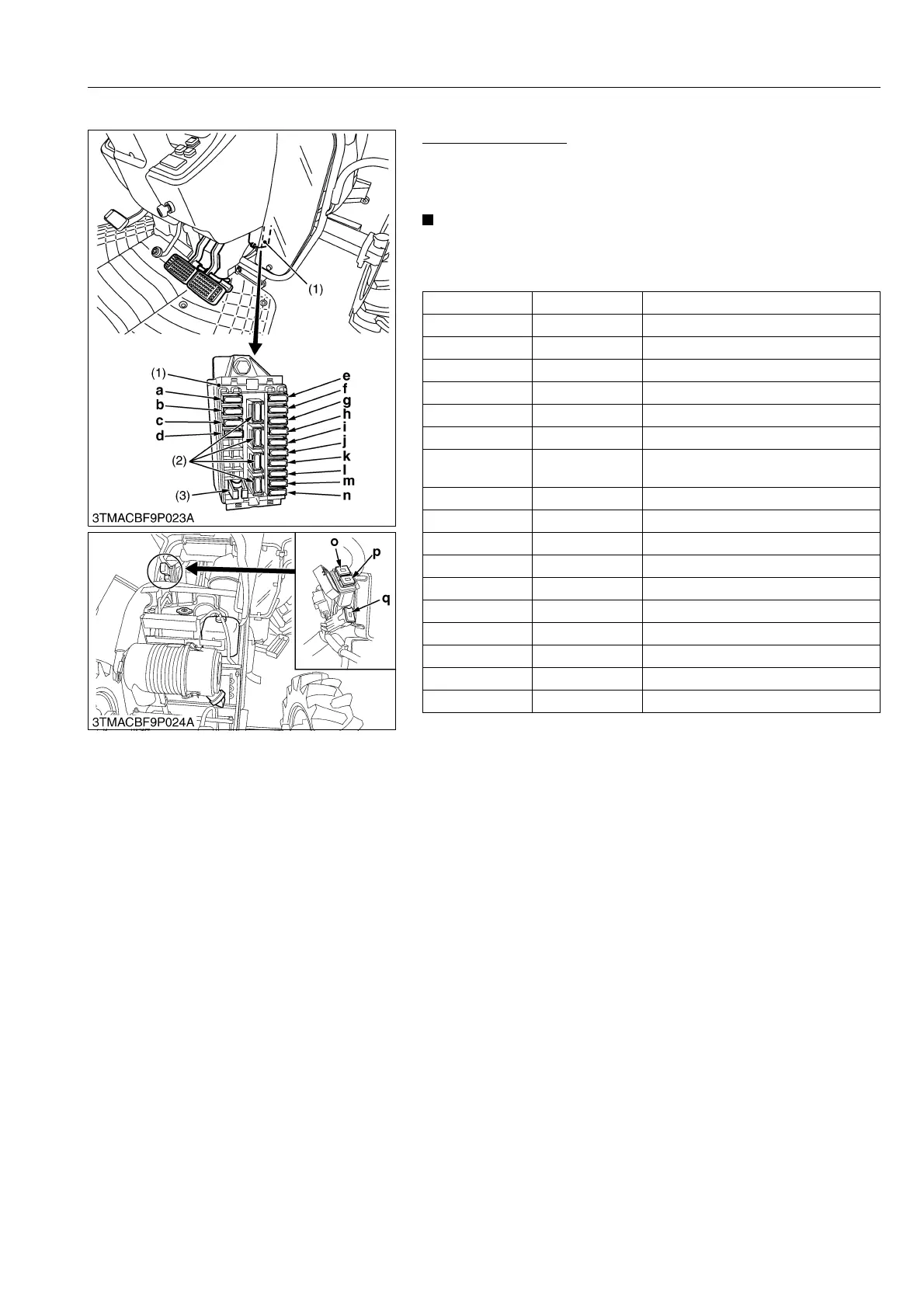

(2) Checking Fuse
Fuse (ROPS Model)
1. When inspect the circuit line, check the related fuses.
2. If any of the fuse is blown, replace with a new one of the same
capacity.
• If a fuse is blown, check the cause and be sure to replace it
with a new one of the same capacity.
Protected Circuit
9Y1210143ELS0010US0
Fuse I.D. Capacity (A) Protected Circuit
a 10 Horn
b 15 Head light
c 25 Auxiliary socket
d 5Starter relay
e 15 Work light R
f 15 Work light L
g 5
Alternator, Engine key stop, PTO,
Heater
h 5 Meter panel
i 10 Turn signal, Stop lamp
j 15 Auxiliary power
k 10 Transmission control
l 5 Meter (back up)
m 10 Position lamp, Number lamp
n 15 Flasher (Hazard)
o 40 Key switch, Head light, Hazard
p 30 Fuel cut solenoid, Work light
q 50 Charge, Glow plug
(1) Fuse Case
(2) Spare Fuse
(3) Fuse Puller
