ELECTRICAL SYSTEM
M6040, M7040, WSM
9-S12

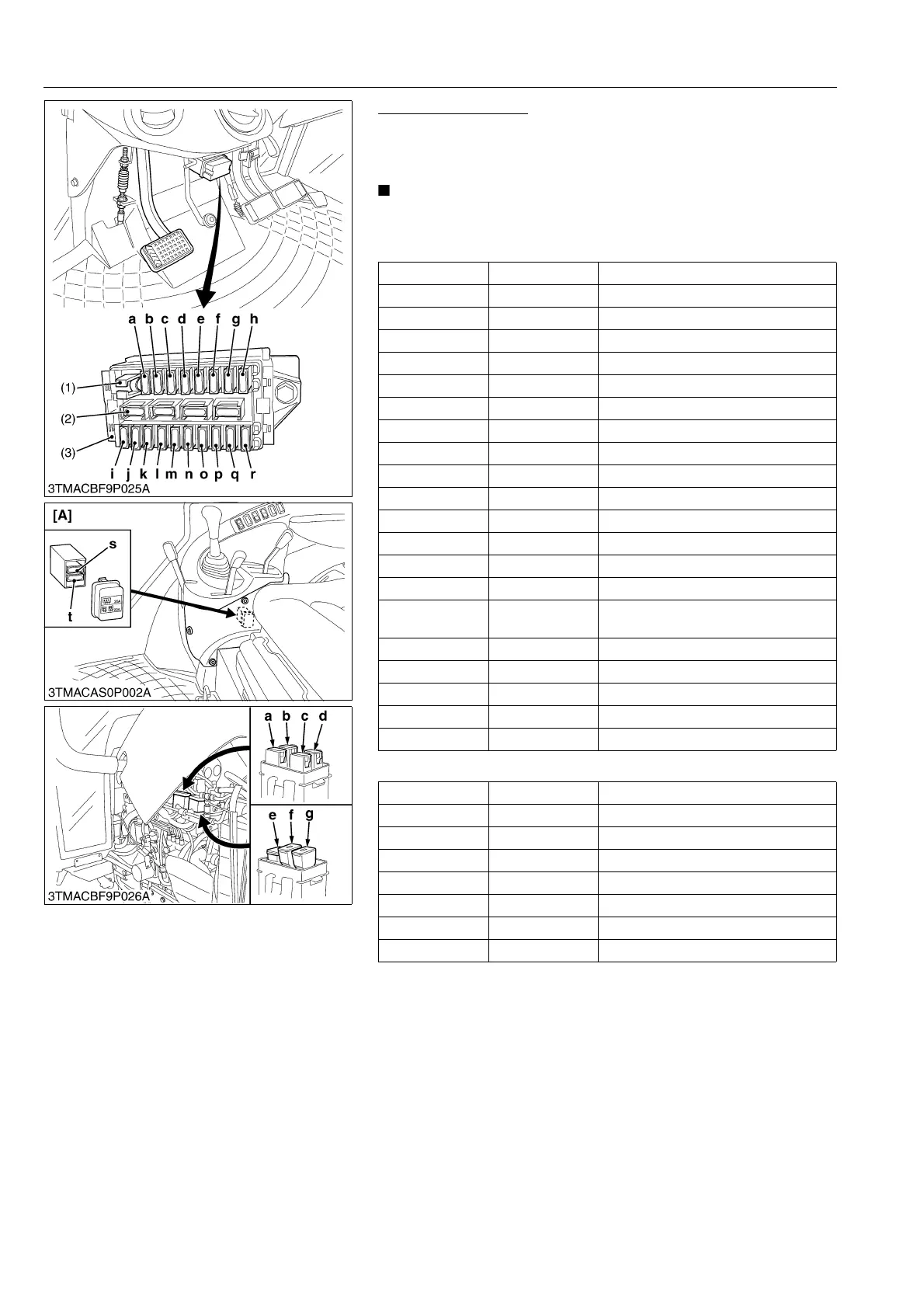

Fuse (CABIN Model)
1. When inspect the circuit line, check the related fuses.
2. If any of the fuse is blown, replace with a new one of the same
capacity.
• If a fuse is blown, check the cause and be sure to replace it
with a new one of the same capacity.
Protected Circuit (Fuse)
Protected Circuit (Slow Blow Fuse)
9Y1210143ELS0011US0
Fuse I.D. Capacity (A) Protected Circuit
a 5 Starter relay
b 15 Auxiliary power
c 15 Work light (front, side)
d 10 Air conditioner (compressor)
e 30 Air conditioner (fan motor)
f 15 Cigarette lighter
g 15 Work light (front)
h 15 Work light (rear)
i 20 Spare fuse
j 20 Flasher (hazard)
k 20 Head light, tail lamp
l 10 Meter, Radio (back up)
m 10 Turn signal, Stop lamp
n 5 Meter panel
o 10
Alternator, Engine key stop, PTO,
Heater, Transmission control
p 15 Wiper
q 5 Air conditioner (control)
r 5 Radio
s 20 Rear window defogger
t 20 Side window defogger
Fuse I.D. Capacity (A) Protected Circuit
a 30 Key switch
b 30 Work light, Fuel cut solenoid
c 40 Air conditioner
d 30 Electrical outlet
e 50 Head light, Hazard
f 50 Glow relay
g 100 Charge
(1) Fuse Case
(2) Spare Fuse
(3) Fuse Puller
[A] Fuse
[B] Slow Blow Fuse
