CABIN
M6040, M7040, WSM
10-S32

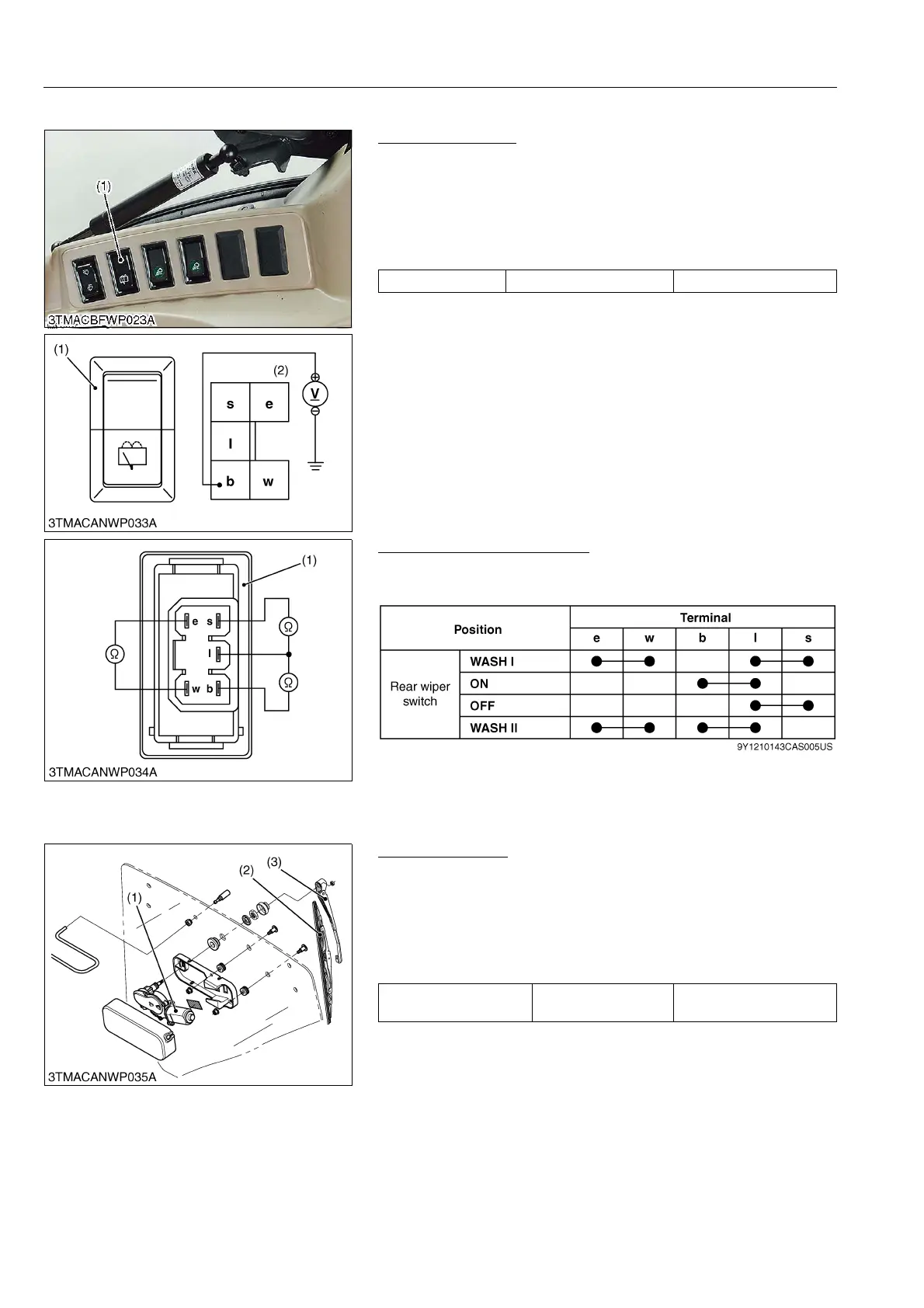

(13) Rear Wiper Switch (If Equipped)
Connector Voltage
1. Disconnect the 5P connector from rear wiper switch (1).
2. Turn the main switch to "ON" position.
3. Measure the voltage with a voltmeter across the connector
terminal b of the wiring harness side and chassis.
4. If the voltage differs from the battery voltage, the wiring harness,
fuse or main switch is faulty.
9Y1210143CAS0056US0
Rear Wiper Switch Checking
1. Check the continuity through the switch with an ohmmeter.
2. If continuity specified below is not indicated, the switch is faulty.
9Y1210143CAS0057US0
(14) Rear Wiper Motor (If Equipped)
Rear Wiper Motor
1. Raise up the rear wiper arm (3).
2. Turn the main switch to "ON" position.
3. Push the front wiper switch to "ON" position.
4. Count the number of wiper arm rocking per minutes.
5. If the number differs from the factory specifications, replace the
wiper motor assembly.
9Y1210143CAS0058US0
Voltage Terminal b – Chassis Approx. battery voltage
(1) Rear Wiper Switch (2) 5P Connector (Switch Side)
(1) 5P Connector (Switch Side)
No. of wiper arm swing
frequency at no load
Factory specification 25 to 43 times/min
(1) Wiper Blade
(2) Wiper Motor
(3) Wiper Arm
