ENGINE
M6040, M7040, WSM
1-S33

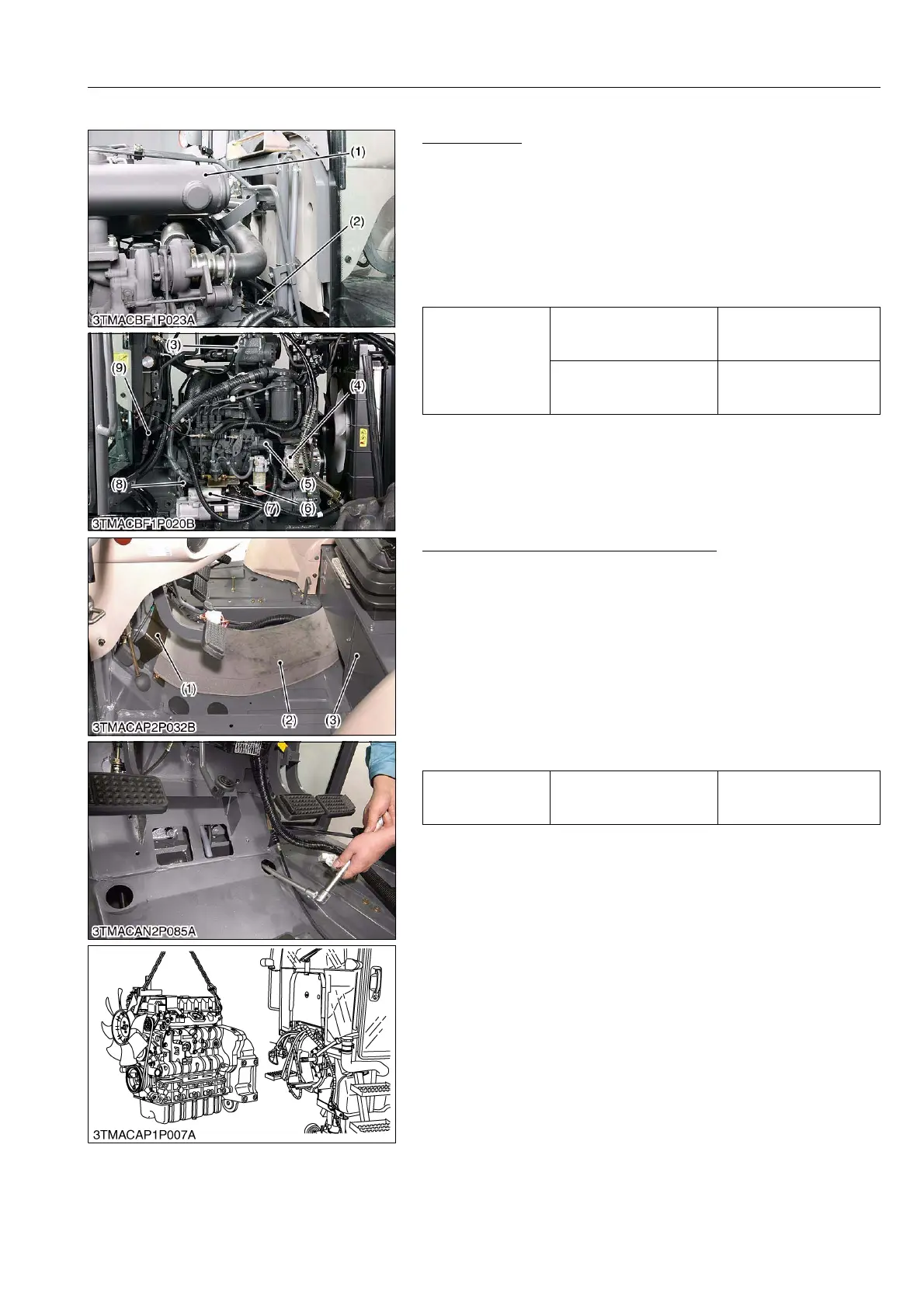

(2) Separating Engine
Preparation 1
1. Remove the harness (2) for the ground.
2. Remove the muffler (1).
3. Remove the harness from alternator (4) engine oil pressure
switch (6), stop solenoid (5), water temperature sensor, starter
motor (7) and engine speed sensor (8).
4. Remove the brake hose (3).
5. Remove the power steering pipe (9).
(When reassembling)
9Y1210143ENS0046US0
Separating Engine from Clutch Housing
1. Remove the floor cover and duct retainer (1).
2. Remove the seat under cover (3).
3. Remove the duct (2).
4. Hoist the engine with a the hoist and chain.
5. Remove the engine mounting screws and nuts and separate the
engine from clutch housing.
(When reassembling)
• Apply molybdenum disulphide (Three Bond 1901 or equivalent)
to the splines of damper disc boss.
• Apply liquid gasket (Three Bond 1141, 1211 or equivalent) to
joint face of the engine and clutch housing.
9Y1210143ENS0047US0
Tightening torque
Brake hose retaining nut
22.6 to 27.5 N·m
2.3 to 2.8 kgf·m
16.6 to 20.3 lbf·ft
Power steering pipe
retaining nut
49.0 to 68.6 N·m
5.0 to 7.0 kgf·m
36.2 to 50.6 lbf·ft
(1) Muffler
(2) Ground Harness
(3) Brake Hose
(4) Alternator
(5) Stop Solenoid
(6) Engine Oil Pressure Switch
(7) Starter Motor
(8) Engine Speed Sensor
(9) Power Steering Pipe
Tightening torque
Engine and clutch housing
mounting screw and nut
(M14, 7T)
124 to 147 N·m
12.6 to 15.0 kgf·m
91.2 to 108 lbf·ft
(1) Duct Retainer
(2) Duct
(3) Seat Under Cover
To Next Page
