wsm M7040 - Hydraulic Cylinder

HYDRAULIC SYSTEM
M6040, M7040, WSM
8-M12
[5] HYDRAULIC CYLINDER
The external type hydraulic cylinders are used for
3-point linkage system. This hydraulic cylinder is single
acting type, and it is installed directly between hydraulic
lift arms.

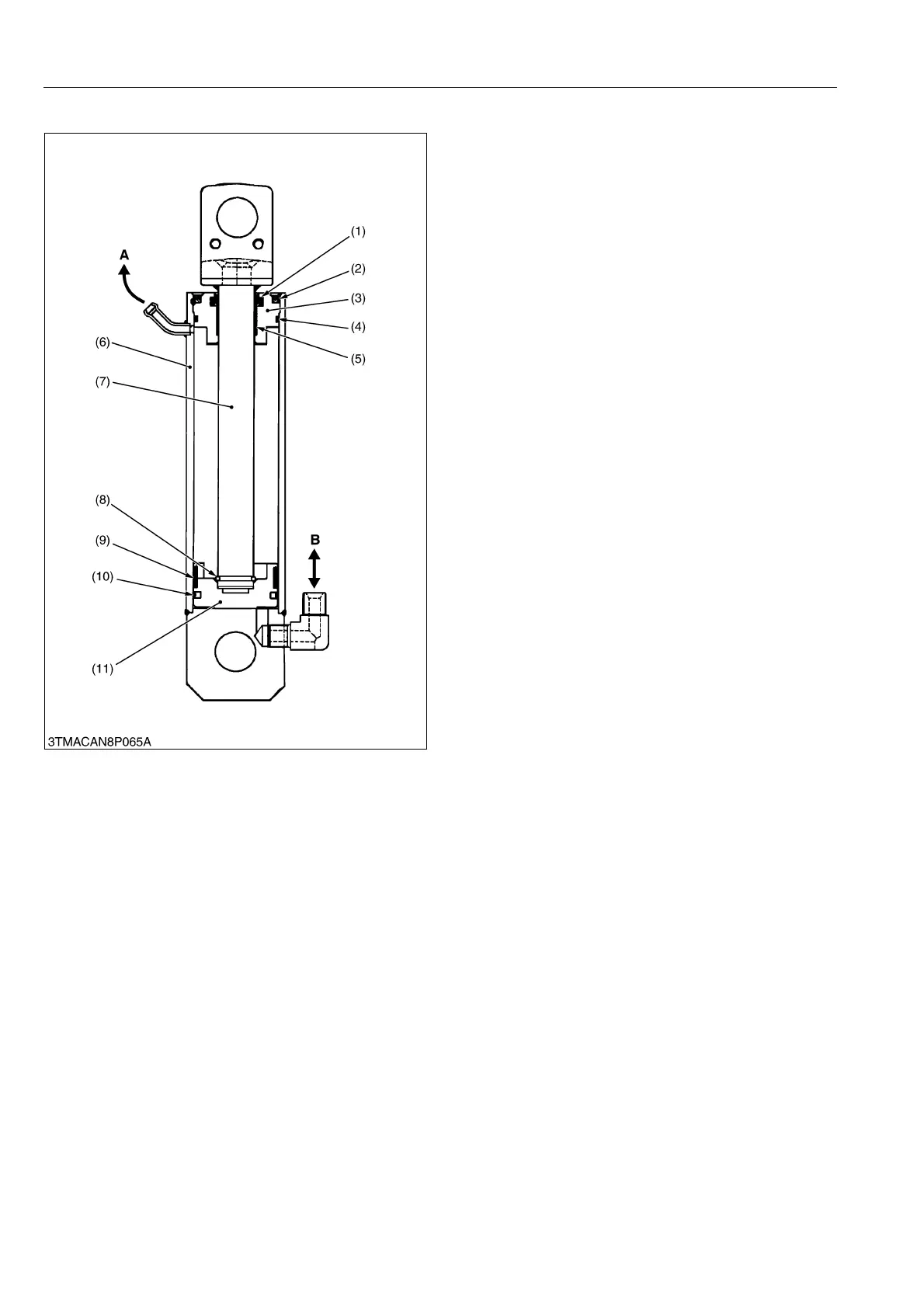

The main components of the hydraulic cylinder are
shown in the figure.
9Y1210143HYM0011US0
(1) Dust Seal
(2) Circlip
(3) Head
(4) O-ring
(5) Bushing
(6) Cylinder Tube
(7) Rod
(8) Circlip
(9) Wear Ring
(10) Seal
(11) Piston
A: To Transmission Case
B: To or From Position
Control Valve
KiSC issued 07, 2012 A
