HYDRAULIC SYSTEM
M6040, M7040, WSM
8-M1
1. STRUCTURE

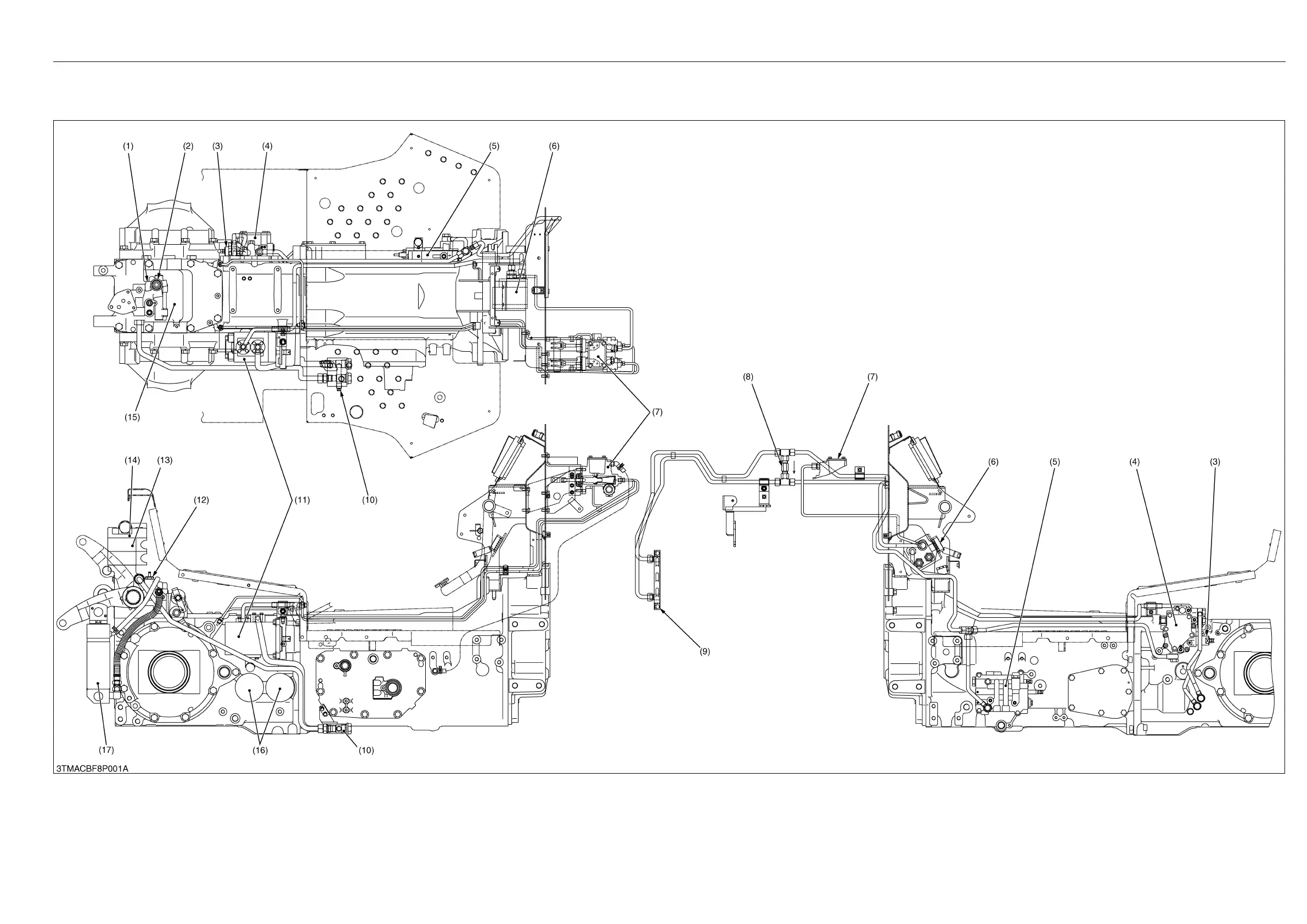

[1] ROPS MODEL
(1) Relief Valve (3-Point Lifting Linkage)
(2) Cylinder Safety Valve
(3) Relief Valve (System Pressure
(4) Solenoid Valve Assembly (PTO, 4WD)
(5) Shuttle Valve
(6) Power Steering Controller
(7) Brake Master Cylinder
(8) Oil Cooler Check Valve
(9) Oil Cooler
(10) Hydraulic Outlet
(11) Hydraulic Pump
(12) Lowering Speed Adjusting Valve
(13) Auxiliary Control Valves
(14) Flow Priority Valve
(15) Hydraulic Block
(16) Oil Filter
(17) Hydraulic Cylinder
