Hydraulic Clutch Spring Compressor
Application
• Use exclusively for pushing the spring, to remove the circlip for
hydraulic clutch.
NOTE
• The following special tools are not provided, so make them
referring to the figure.

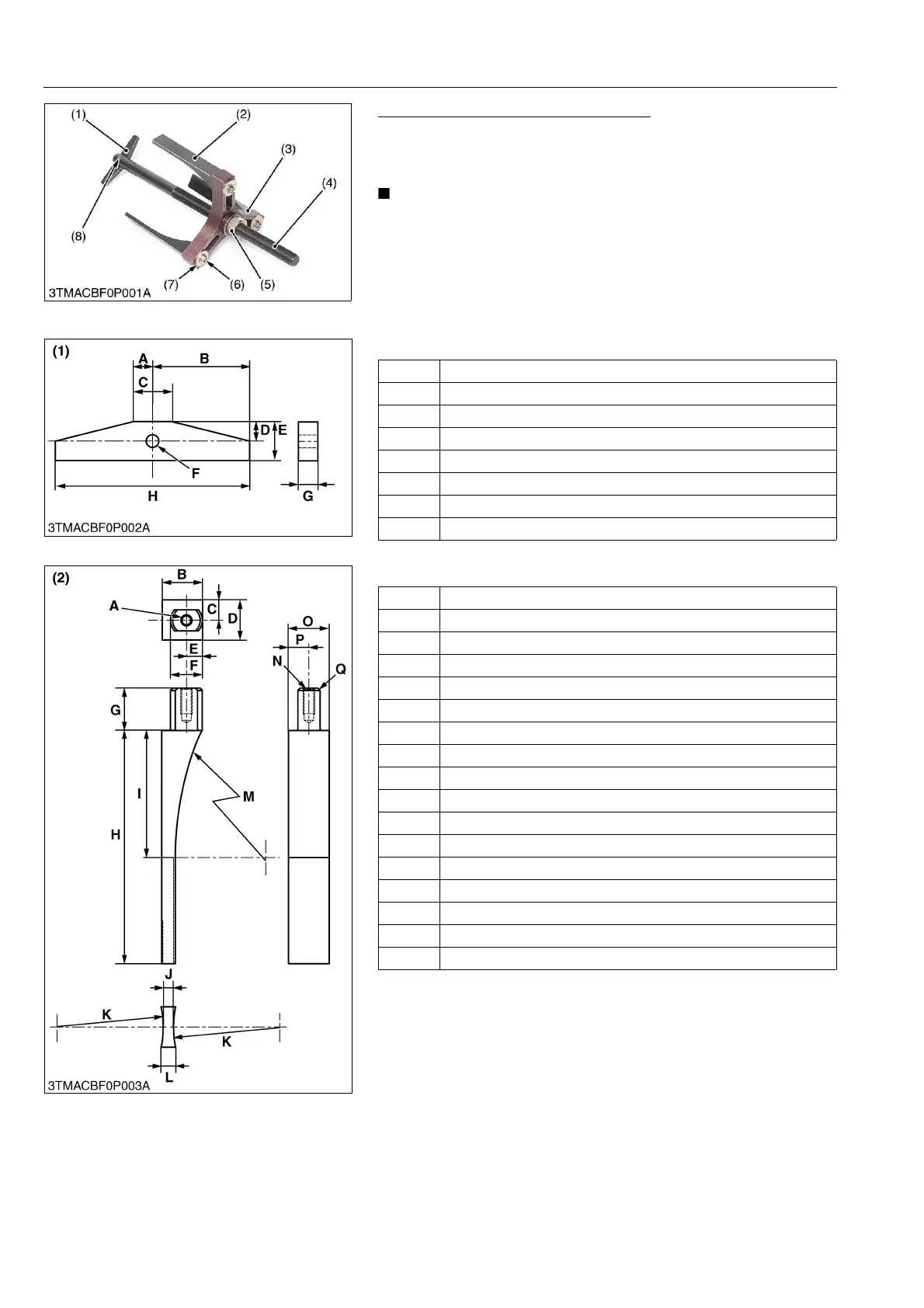

9Y1210143GEG0128US0
(1) Tool 4 (Plate)
9Y1210143GEG0098US0
(2) Tool 3 (Clow): 3 pcs.
9Y1210143GEG0099US0
(1) Tool 4 (Plate)
(2) Tool 3 (Claw)
(3) Tool 1 (Body)
(4) Tool 2 (Center Bar)
(5) Nut (M16 x P1.5 mm)
(6) Screw (M5 x P1.0 - L10 mm)
(7) Washer (M5)
(8) Spring Pin (5.0 mm dia. - L16 mm)
A 8 mm (0.3 in.)
B 40 mm (1.6 in.)
C 16 mm (0.63 in.)
D 8 mm (0.3 in.)
E 16 mm (0.63 in.)
F 5.2 mm dia. (0.20 in. dia.)
G 5.70 to 5.90 mm (0.225 to 0.232 in.)
H 80 mm (3.1 in.)
A M5 × P1.0 × 12 mm depth (0.47 in. depth)
B 19 mm (0.75 in.)
C 5 mm (0.2 in.)
D 9.73 to 10.0 mm (0.383 to 0.393 in.)
E 7.5 mm (0.30 in.)
F 15 mm dia. (0.59 in. dia.)
G 20.05 to 20.10 mm (0.7894 to 0.7913 in.)
H 110 mm (4.33 in.)
I 60 mm (2.4 in.)
J 5 mm (0.2 in.)
K 50 mm (2.0 in.)
L 6.8 mm (0.27 in.)
M Radius 150 to 160 mm (5.91 to 6.29 in.)
N 4.2 mm dia. × 15 mm depth (0.17 in. dia. × 0.59 in. depth)
O 19 mm (0.75 in.)
P 9.5 mm (0.37 in.)
Q Chamfer 1.0 mm (0.039 in.)
